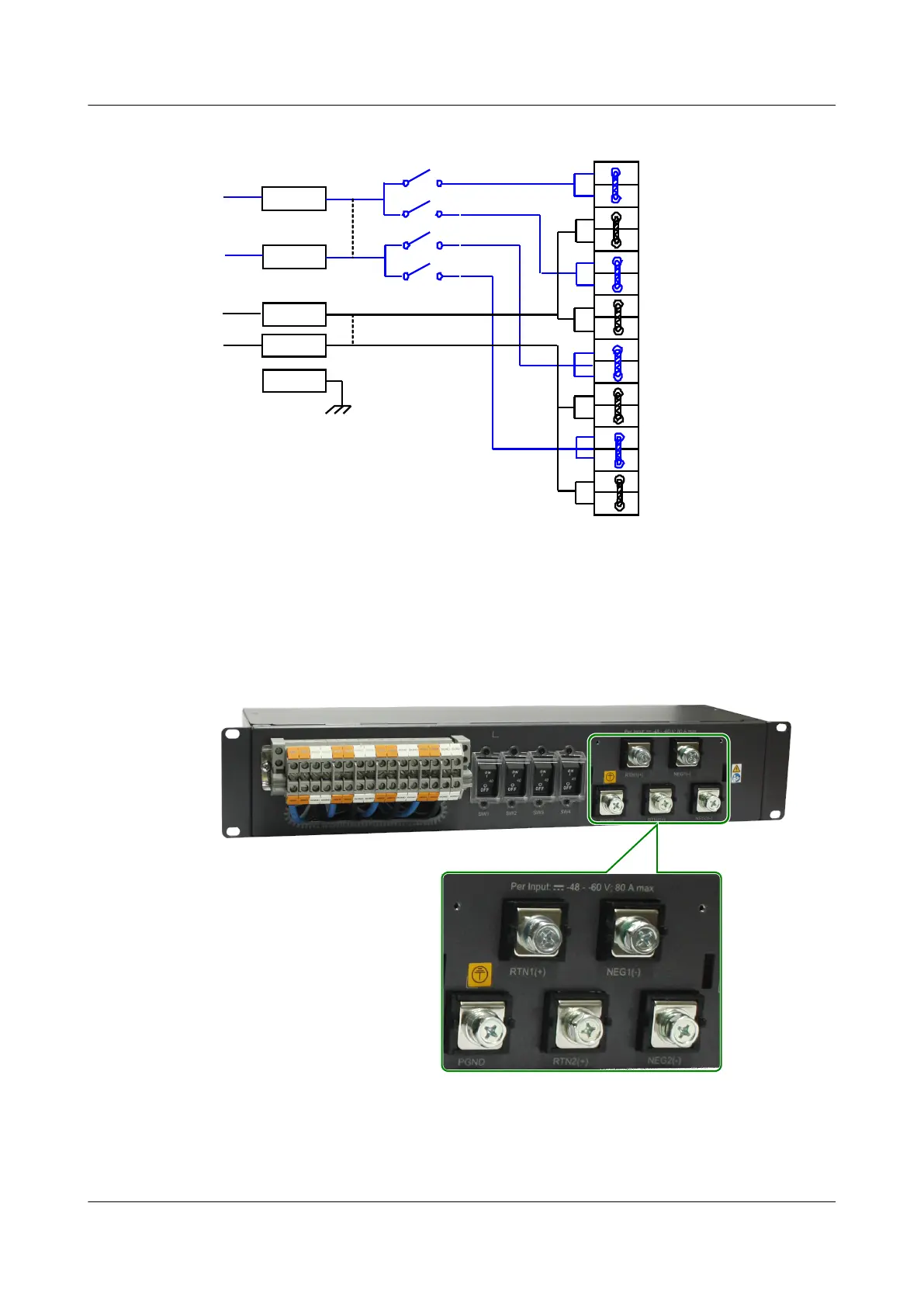

Figure 6-10 Diagram of the power distribution principle of the C3-Type DC PDU
NEG1 (-)
SW1
SW2
SW3
SW4
-48V1
PGND
-48V1
-48V2
-48V2
-48V3
-48V3
-48V4
-48V4
RTN2 (+)
Jumper
BGND
BGND
BGND
BGND
BGND
BGND
BGND
BGND
-48VA
-48VB
RTNA
RTNB
NEG2 (-)
RTN1 (+)
Jumper
Input Terminal
Figure 6-11 shows the input terminals of the C3-type DC PDU.
Figure 6-11 Input terminals of the C3-type DC PDU
The C3-type DC PDU supports two -48 V DC/-60 V DC inputs. The connections of the input
terminals are as follows:
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
920
