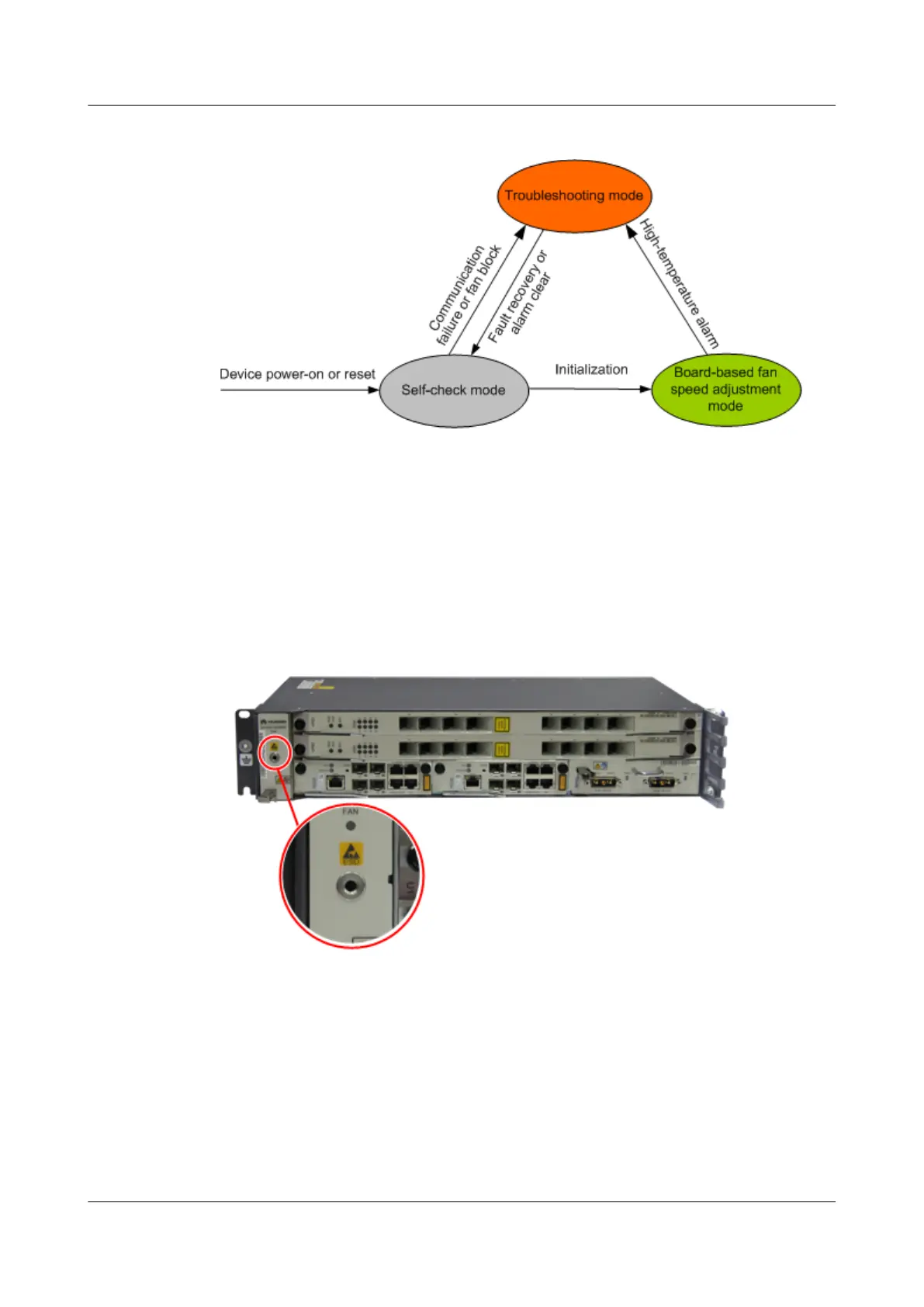

Figure 2-31 Fan status transfer
2.6.5 ESD Jack
The ESD jack of the MA5608T chassis is on the middle of the fan tray, which is used to
connect the ESD wrist strap to prevent device damage caused by electrostatic discharge.
The position of the MA5608T chassis ESD jack, as shown in Figure 2-32.
Figure 2-32 Position of the MA5608T chassis ESD jack
2.6.6 Grounding
This topic describes the grounding principle of the MA5608T chassis and the position of the
ground point.
