Huawei SmartAX MA5608T - Subscriber Cable; 32-Channel Intra-Subrack Interconnection Cable (for 3224-Channel Board)

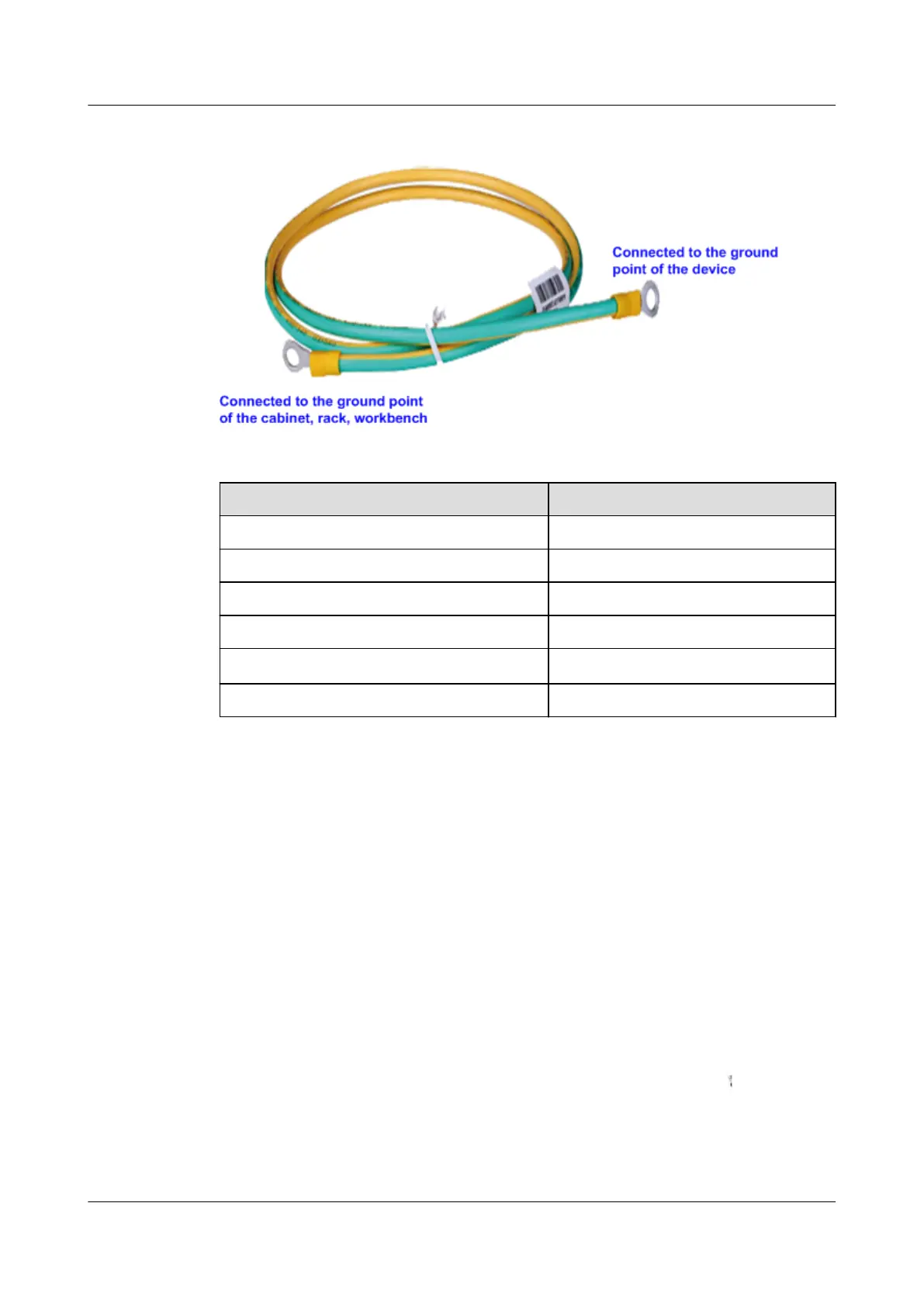

Cable Connector
Specification
Specification
Description
Cable type Electrical cable
Color Yellow and green
Connector (X1) type OT 6-6
Connector (X2) type OT 6-6
Wire gauge of the inner conductor
6 mm
2
Maximum current 50A
5.2 Subscriber Cable
This topic provides the appearance and parameters of the subscriber cable, and describes the
application and pin assignments of the cable.
5.2.1 32-Channel Intra-Subrack Interconnection Cable (for 32/24-
Channel Board)
Intra-subrack interconnection cable is used to connect a service board to an SPL board.
Cable Connector
Delander 64-pin connector
Connected to the xDSL
port of the SPL board
Champ 64-pin connector
Connected to the xDSL
port of the service board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
