Board Type Board Appearance Dimensions (W x D x H)
SPL board 22.86 mm x 237.00 mm x 395.40 mm
3.1.3 Board Name and Version
This topic describes the board name and version.

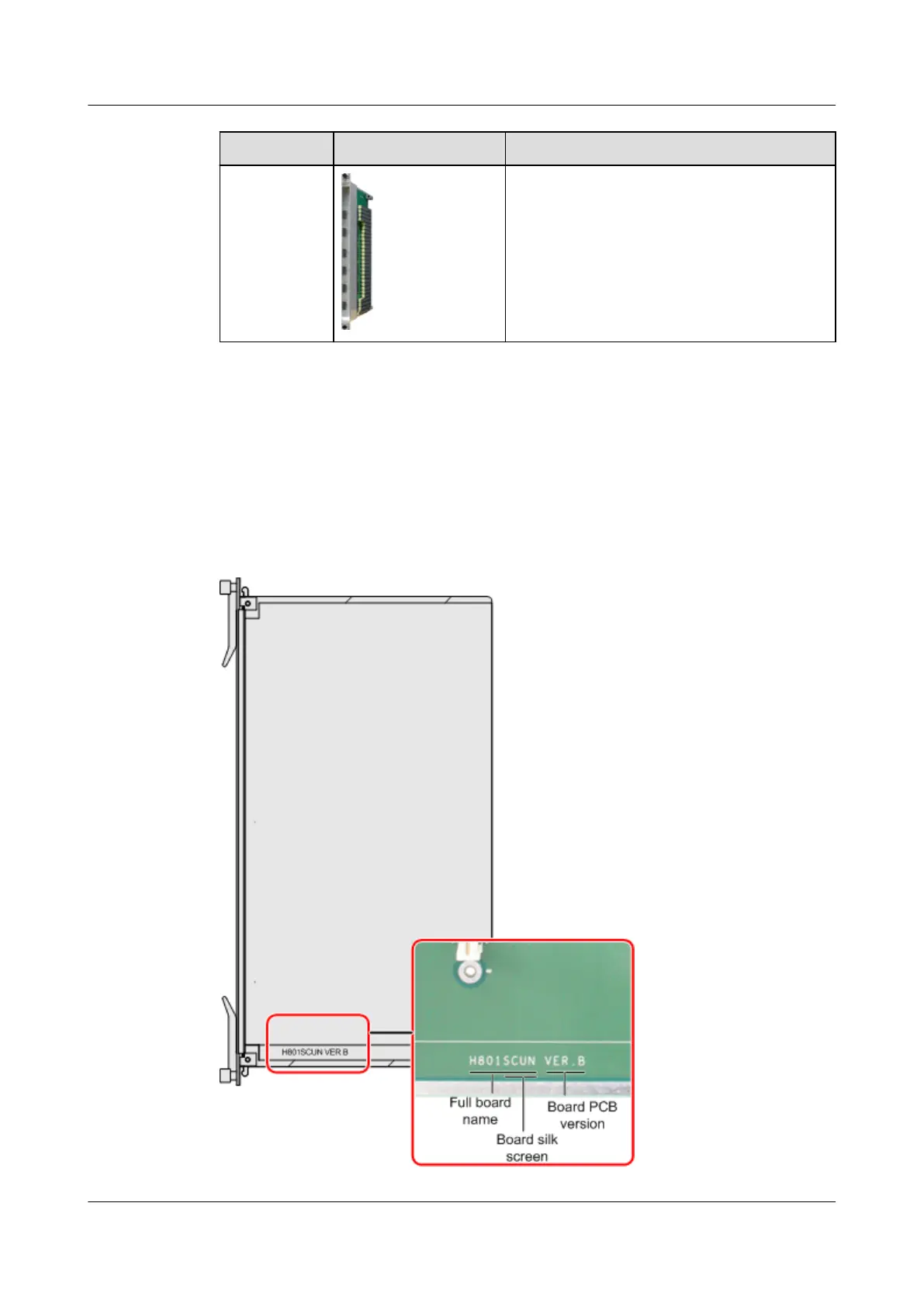

As shown in Figure 3-3 (using the SCUN board as an example), the board name and version
are printed on the PCB of a board.
Figure 3-3 Board name and version
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
147

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
