Huawei SmartAX MA5608T Hardware Description

Specification Description
Color PANTONE 430 U (PANTONE refers to
international standard color cards and
430 U is close to grey)
Characteristic impedance 100.0 ohms
Wire diameter of the inner conductor 0.400 mm (26 AWG)
Wire 64-wire
Breakdown voltage 1000.0 V
DC resistance of the inner conductor 145.0 ohms/km
Frequency range Default
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

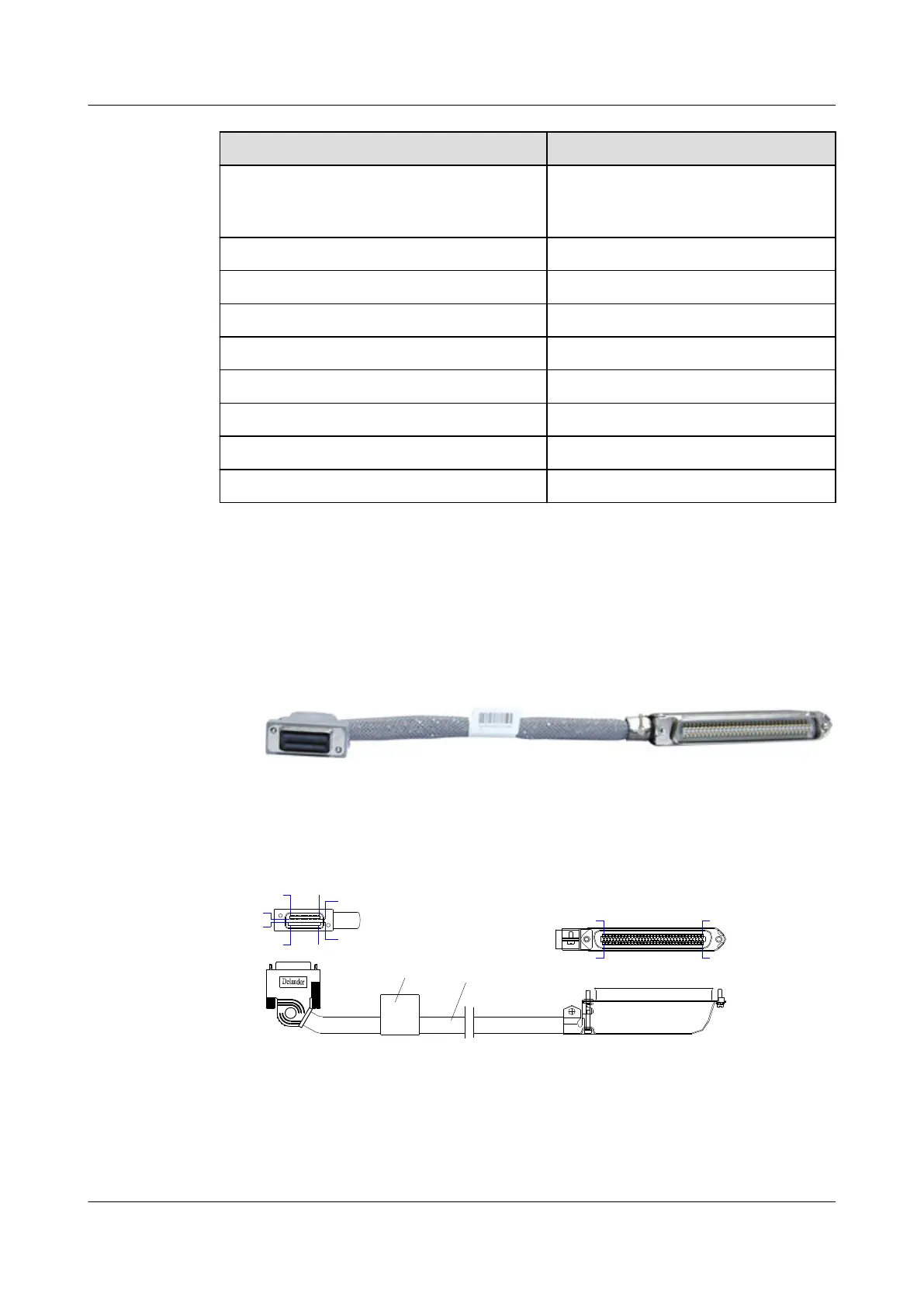

5.2.2 32-Channel Intra-Subrack Interconnection Cable (for 64/48-
Channel Board)
Intra-subrack interconnection cable is used to connect a service board to an SPL board.
Cable Connector
Delander 64-pin connector
Connected to the xDSL
port of the SPL board
Champ 64-pin connector
Connected to the xDSL
port of the service board
Cable Structure
X1
X2
Pos
.
64
Pos.1
Pos.33
Pos.32
Pos.1
Pos.16
Pos.32
Pos.48
Pos.64
Pos.49
Pos.17
Pos.33
Twisted pair
Main label
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
872

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
