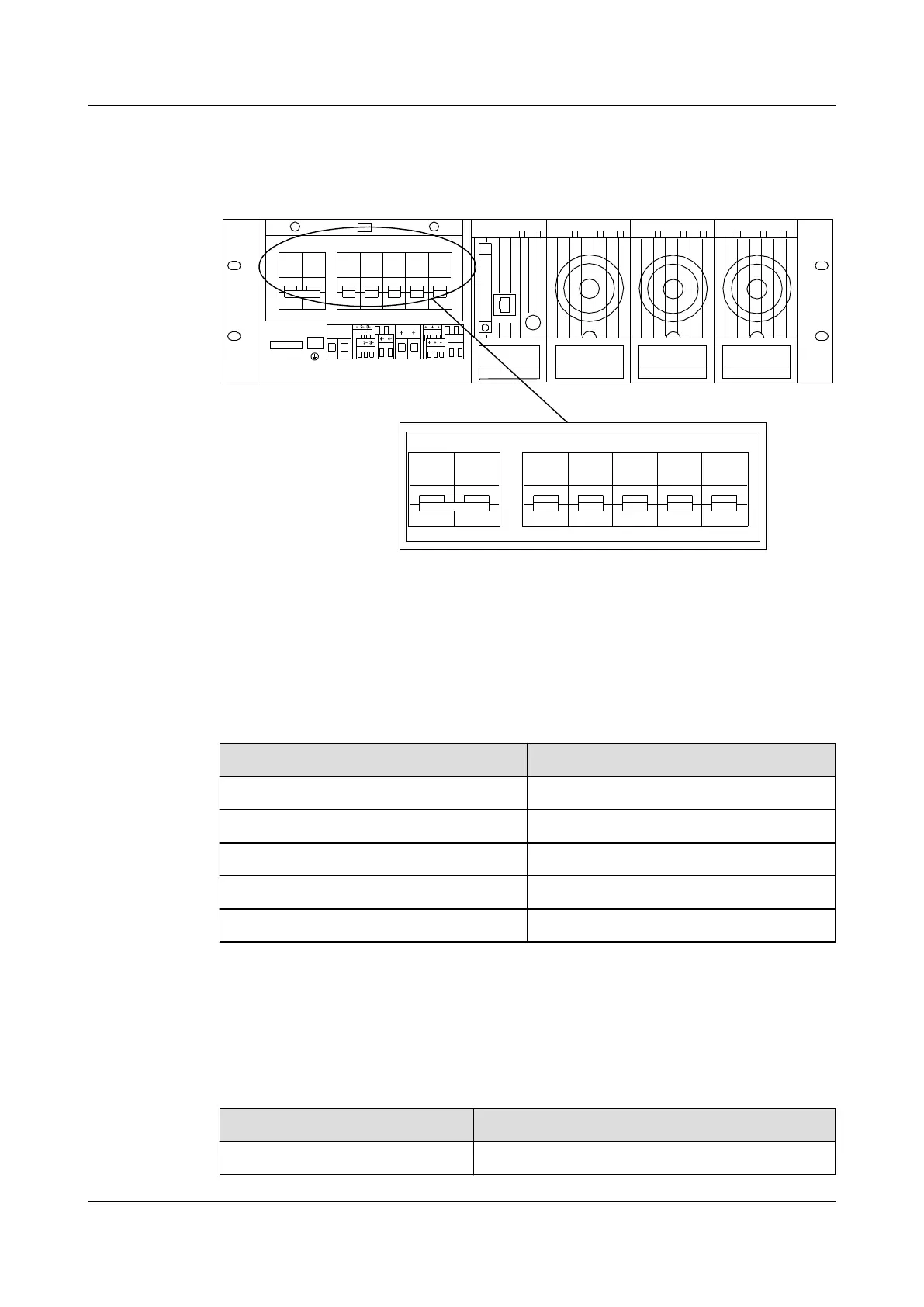

Figure 6-31 shows the output tributary switches of the GEPS4845 power system.
Figure 6-31 Output tributary switches of the GEPS4845 power system
AC INPUT
LOAD4BATT
LOAD2 LOAD3LOAD1
LOAD
4
AC INPUT
BA
TT
FAN-ALM RUNALM
RUNALM
COM
MS
PSM-B5
HRS850-9000C HRS850-9000CHRS850-9000C
FAN-ALM RUNALM
FAN-ALM RUNALM
LOAD2
LOA
D3
LOAD1
AC-L AC-N
B
BATT.
(-)
LOAD
(-)
BATT.(
+)
LOAD(+
)
B
1
B
2
+ +
The GEPS4845 power system supports four sets with eight -48 V DC outputs in total.
Table 6-31 shows the mapping between the output tributary switches and the loading
tributaries.
Table 6-31 Mapping between the output tributary switches and the loading tributaries
Output Tributary Switch
Loading Tributary
BATT BATT. (-), BATT. (+)
LOAD1 LOAD (-) 1, LOAD (+) 1
LOAD2 LOAD (-) 2, LOAD (+) 2
LOAD3 LOAD (-) 3, LOAD (+) 3
LOAD4 LOAD (-) 4, LOAD (+) 4
Specifications
Table 6-32 lists the specifications of the GEPS4845 power system.
Table 6-32 Specifications of the GEPS4845 power system
Item
Specifications
Dimensions (W x D x H) 483 mm x 350 mm x 133 mm
