Indicato
r
Name Color Status Meaning
Green Blinking In load-sharing mode, the
board is standby
- Off In active/standby mode,
the board is standby
GE0-
GE3
Link and
Data status
indicator
Green On A link is set up on the port
Green Blinking Data is being transmitted
on the port
- Off No link is set up on the
port, or no data is being
transmitted on the port
Meaning of Port Signals

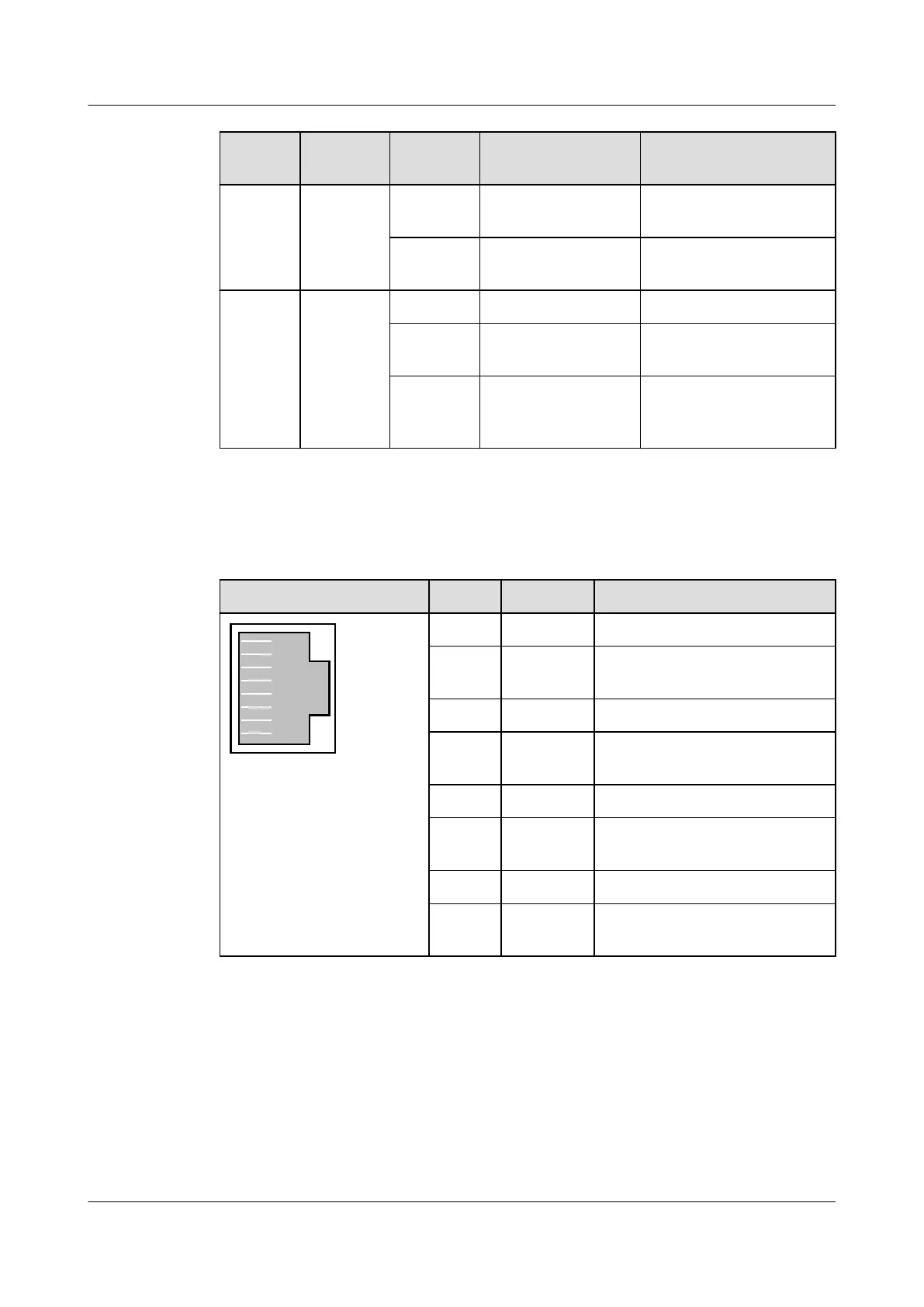

Table 3-12 Meaning of ALARM IN Port Signals
Port
Pin Signal Meaning
1
2
3
4
5
6
7
8
1 ALM_RTN Alarm digital parameter RTN
2 ALM_IN0 Signal of channel 0 alarm digital
parameter
3 ALM_RTN Alarm digital parameter RTN
4 ALM_IN1 Signal of channel 1 alarm digital
parameter
5 ALM_RTN Alarm digital parameter RTN
6 ALM_IN2 Signal of channel 2 alarm digital
parameter
7 ALM_RTN Alarm digital parameter RTN
8 ALM_IN3 Signal of channel 3 alarm digital
parameter
