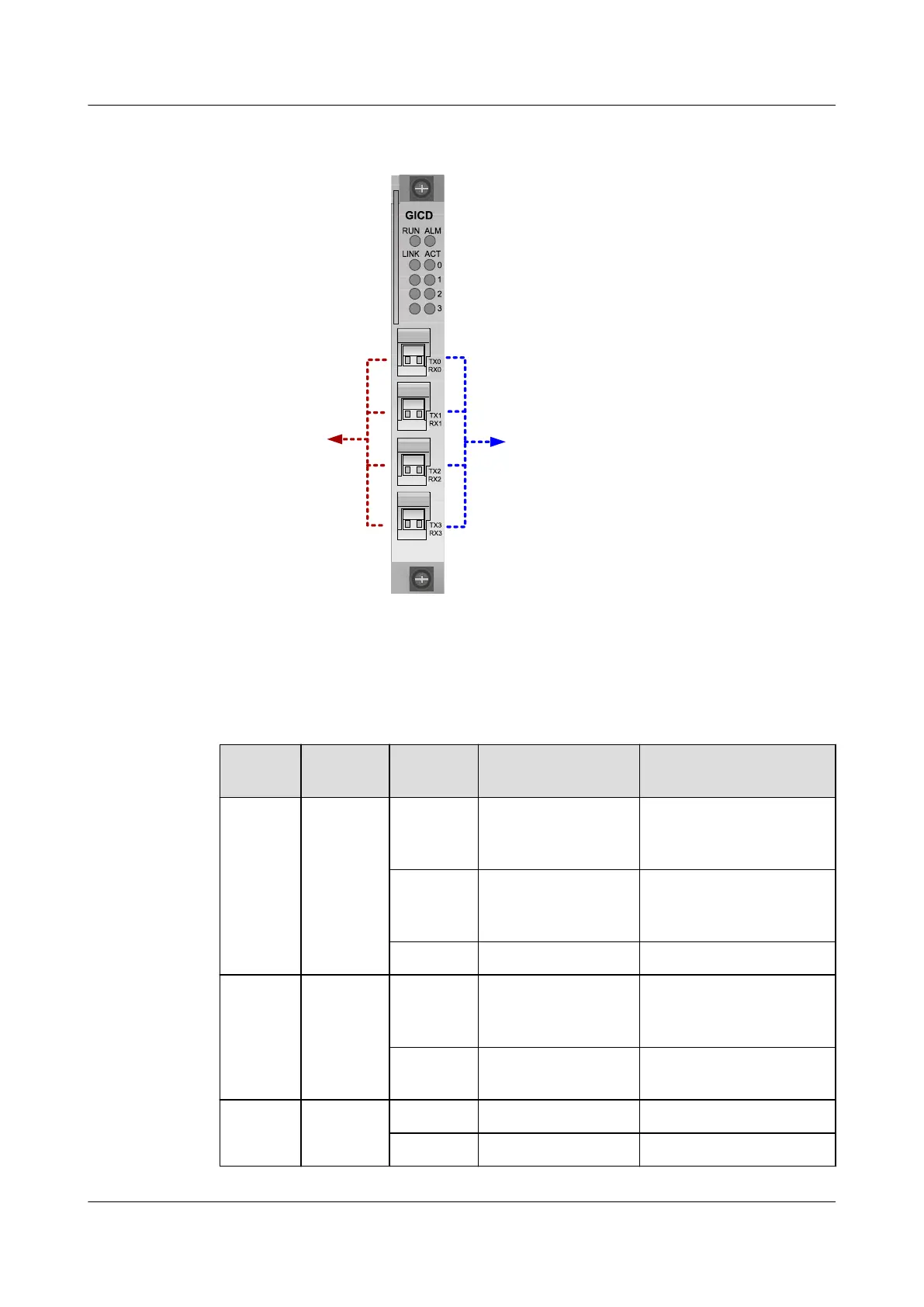

Front Panel Port
Connected to the GE port
of the upper-layer device
or the cascaded device
GE upstream or
cascaded port
（SFP）
For details about supported optical module, see 4.3 GE Optical/Electrical Module.
Indicator
Indicato
r
Name Color Status Meaning
RUN Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board functions
properly
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board starts up and is
being loaded with software
- Off The board is faulty
ALM Alarm
indicator
Red On The board is faulty or its
CPLD software is being
updated
- Off The board functions
properly
LINK Link status
indicator
Green On The link is normal
- Off The link is abnormal
