Working Principle

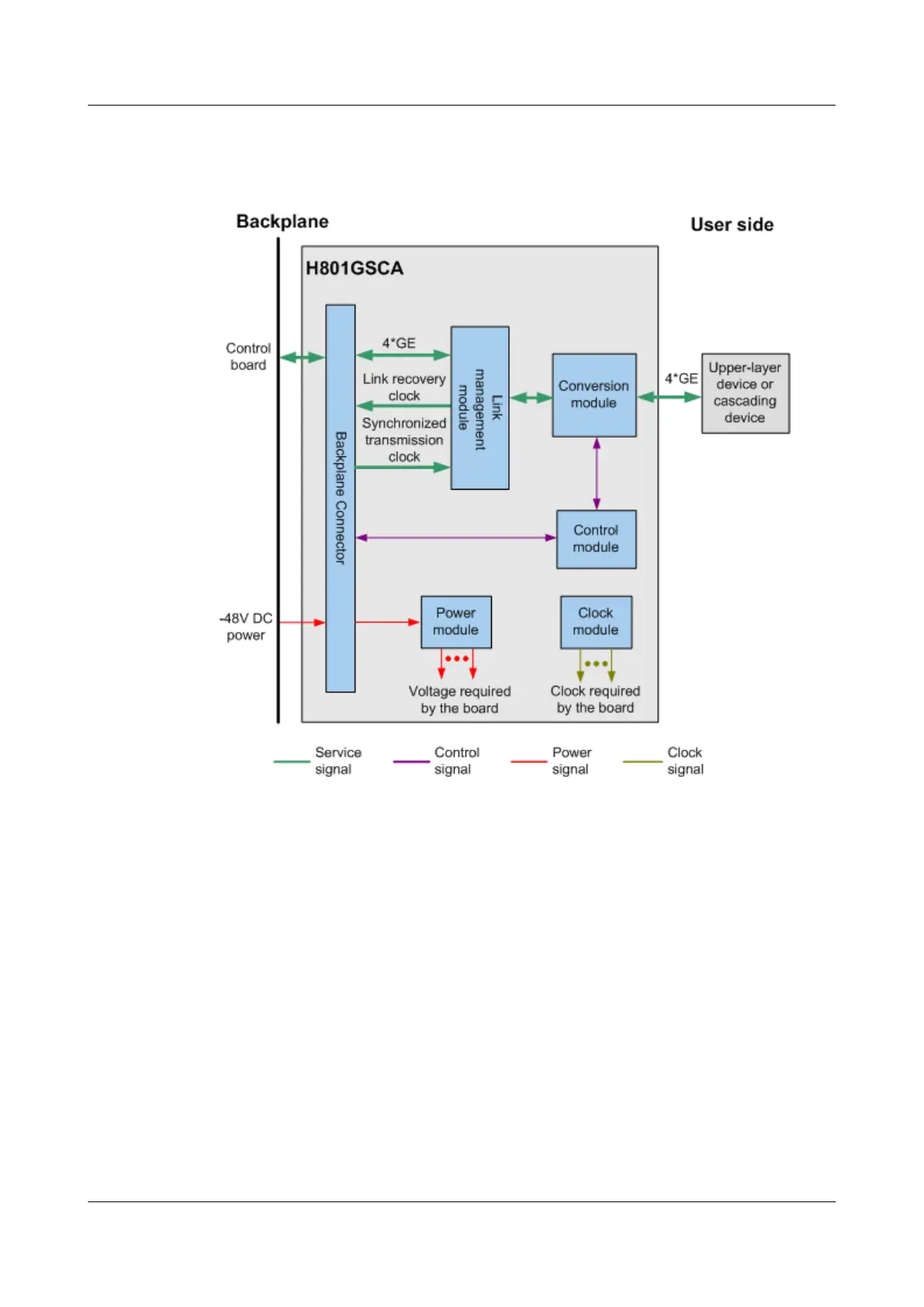

Figure 3-31 Working principle of the H801GSCA board
The basic working principle of the H801GSCA board is as follows:
l The control module is the control core of the entire board.
l The conversion module supports transparent transmission of the information.
l The link management module manages the GE links.
l The power module supplies power to other functional modules of the board.
l The clock module provides clock signals for other functional modules of the board.
