Huawei SmartAX MA5608T Hardware Description

Working Principle

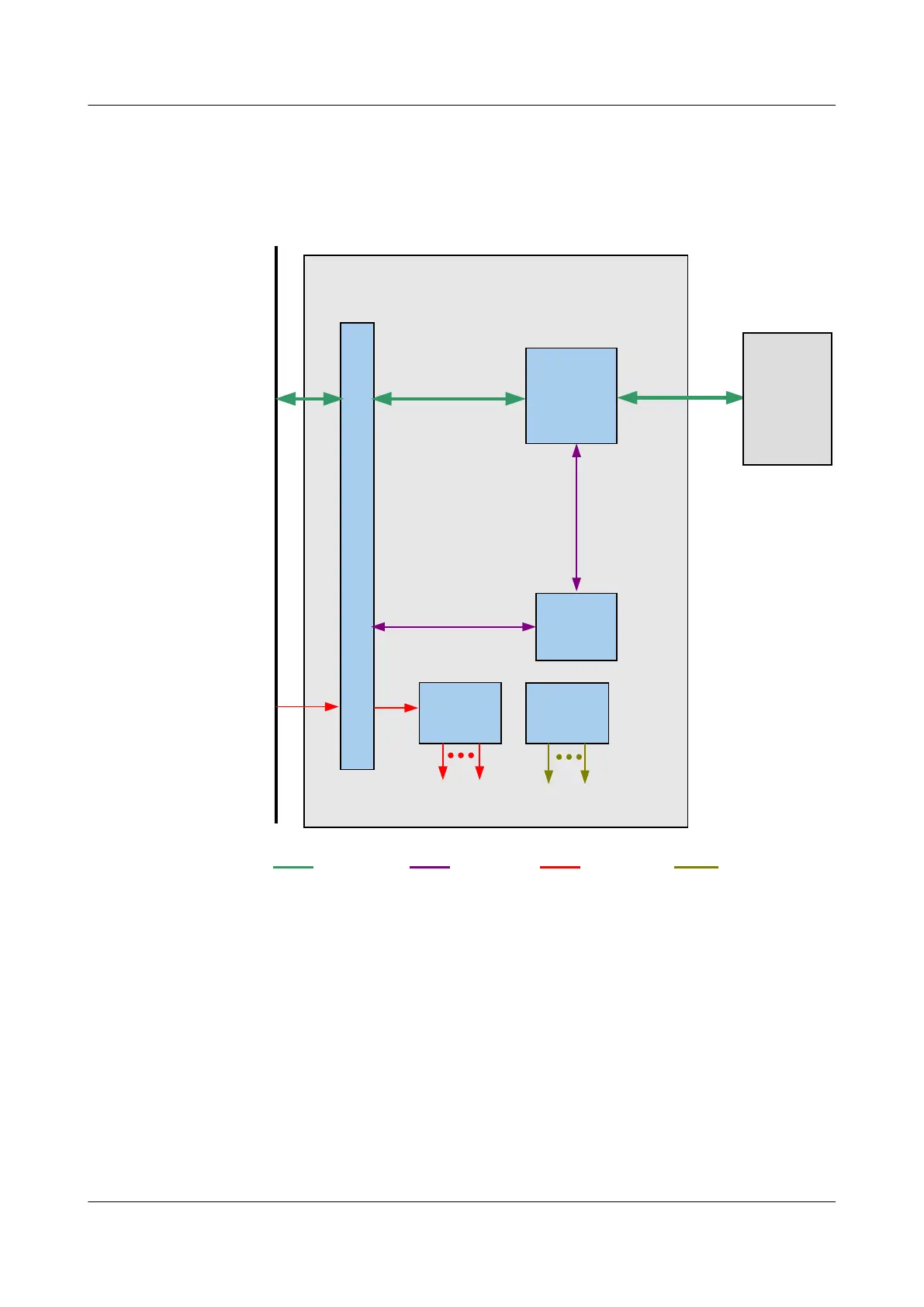

Figure 3-32 Working principle of the H801X1CA board
H801X1CA
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Switching
module
Control
module
10GE
10GE
Control
board
Clock
signal
-48V
DC
power
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
U
p
p
e
r
-
l
a
y
e
r
d
e
v
i
c
e
o
r
c
a
s
c
a
d
i
n
g
d
e
v
i
c
e
Service
signal
Control
signal
Power
signal
Backplane User side
The basic working principle of the H801X1CA board is as follows:
l The control module reports the status of and manufacturing information about the board,
and provides the interface information. In addition, the control module also manages the
modules on the board, and processes alarms.
l The interface module provides the 10GE port.
l The power module supplies power to other functional modules of the board.
l The clock module provides clock signals for other functional modules of the board.
