Working Principle

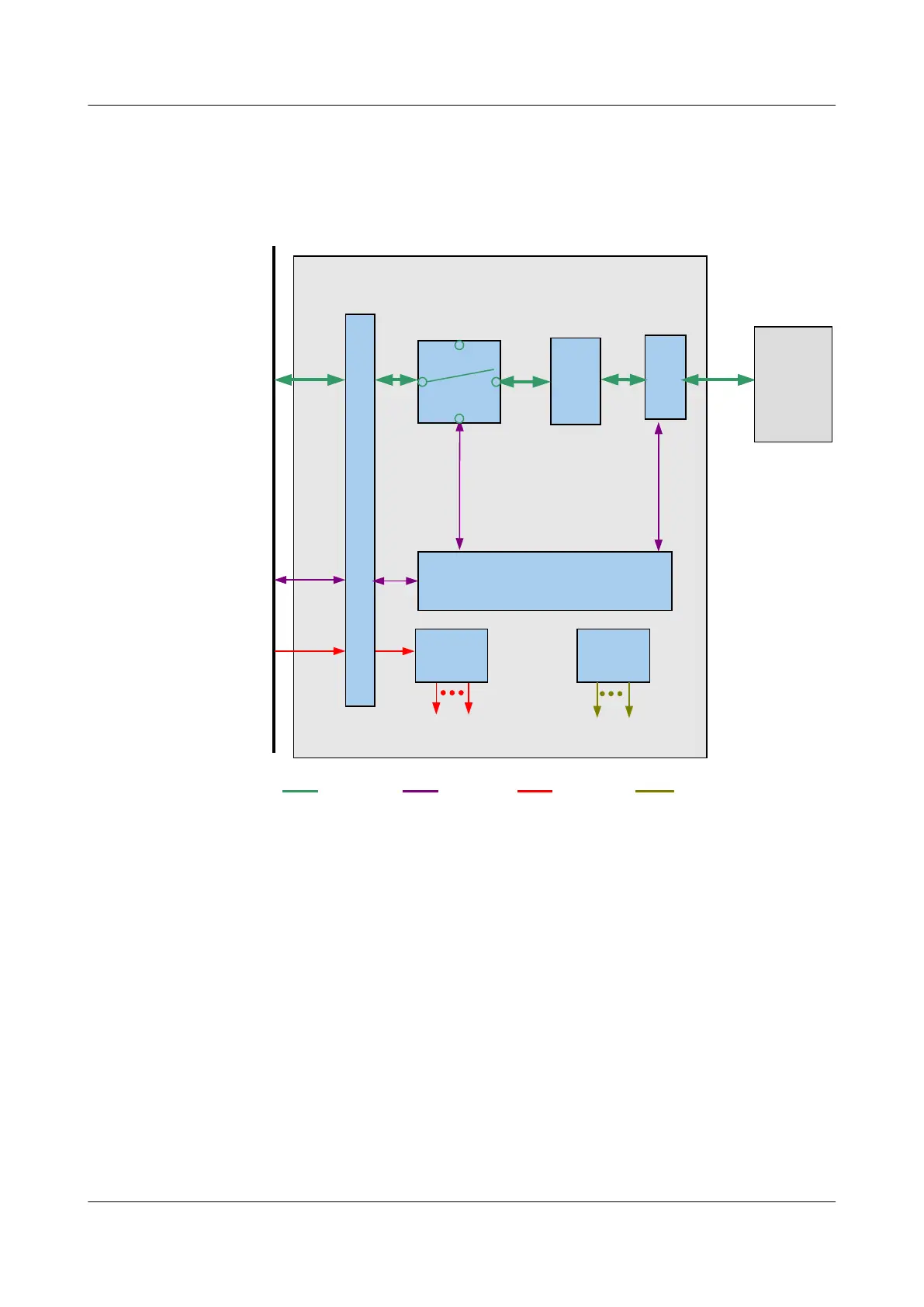

Figure 3-37 Working principle of the H802P2CA board
H802P2CA
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
P
O
N
i
n
t
e
r
f
a
c
e
Control module
PON
S
e
r
v
i
c
e
p
r
o
c
e
s
s
i
n
g
m
o
d
u
l
e
Master/
slave
serial
port
Clock
signal
-48V
DC
power
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
U
p
p
e
r
-
l
a
y
e
r
d
e
v
i
c
e
Service
signal
Control
signal
Power
signal
Backplane User side
Control
board
Control
board
Electronic
Switch
Module
The basic working principle of the H802P2CA board is as follows:
l The control module controls the board software loading and board running, and manages
the board.
l The electronic switch module implements switching of service signals during the active/
standby switchover.
l The PON interface module provides SFP GPON port.
l The service process module implements GPON upstream transmission and provides time
synchronization, and supports line clock as the system clock.
l The power module supplies power to each functional module of the board.
l The clock module provides the working clock for each functional module of the board.
