Huawei SmartAX MA5608T Hardware Description

Indicato
r
Name Color Status Meaning
- Off The board is faulty or
power off
ALM Alarm
indicator
Red On The board is faulty or its
CPLD software is being
updated
- Off The board functions
properly
IN0,IN1 Clock
input
status
indicator
Green On Clock signals are input
- Off No clock signal is input
Daughter Board
The H801BIUA board can be installed with one clock daughter board.

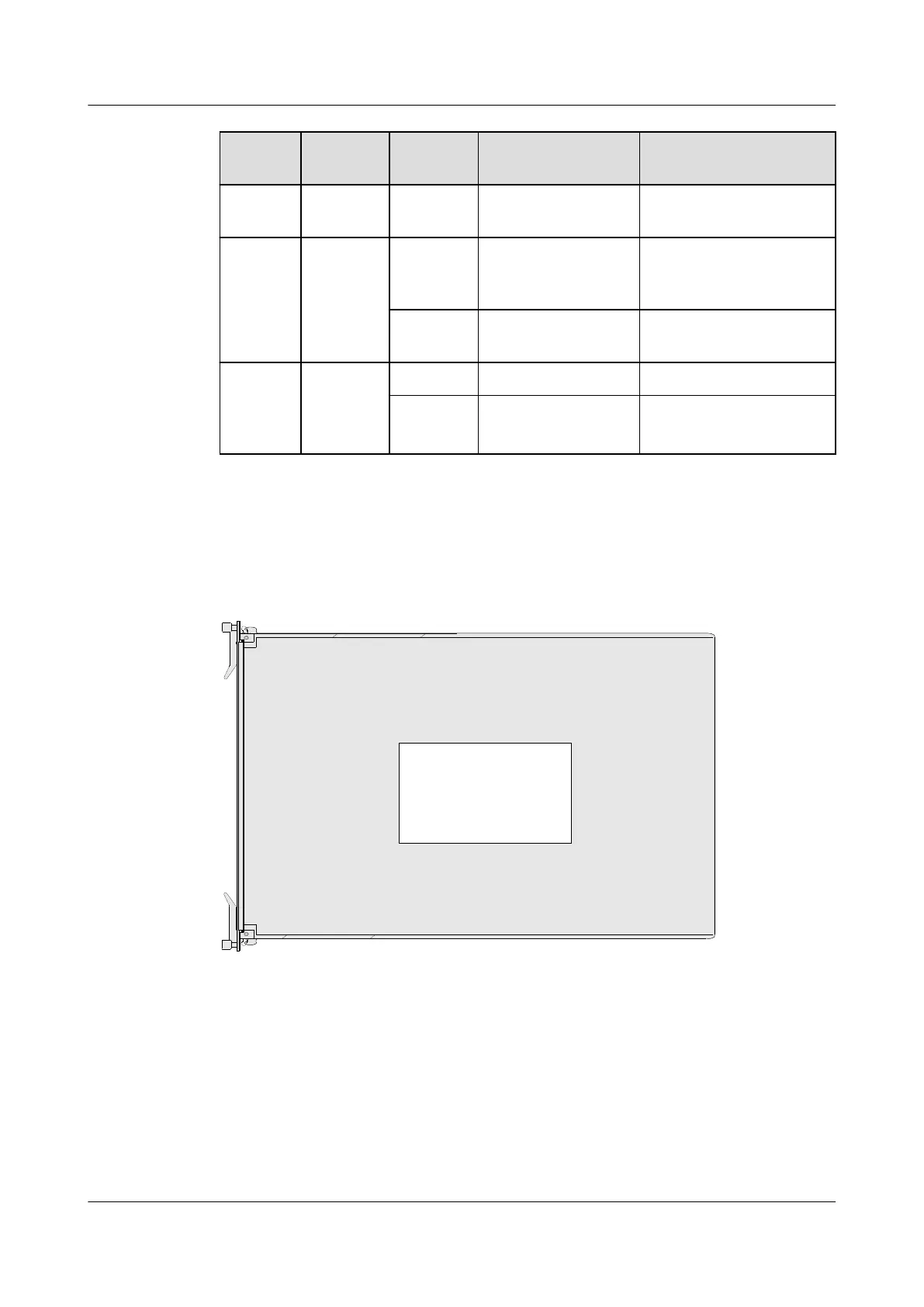

Figure 3-39 Position of the daughter board on the H801BIUA board
Daughter board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
299

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
