Huawei SmartAX MA5608T Hardware Description

Application
The H801ETHB board supports Ethernet cascading, Ethernet upstream transmission, and
aggregation management for remote GE extended subracks.
l The H801ETHB board is mainly used for Ethernet cascading, which saves the upstream
fiber resources of access nodes.

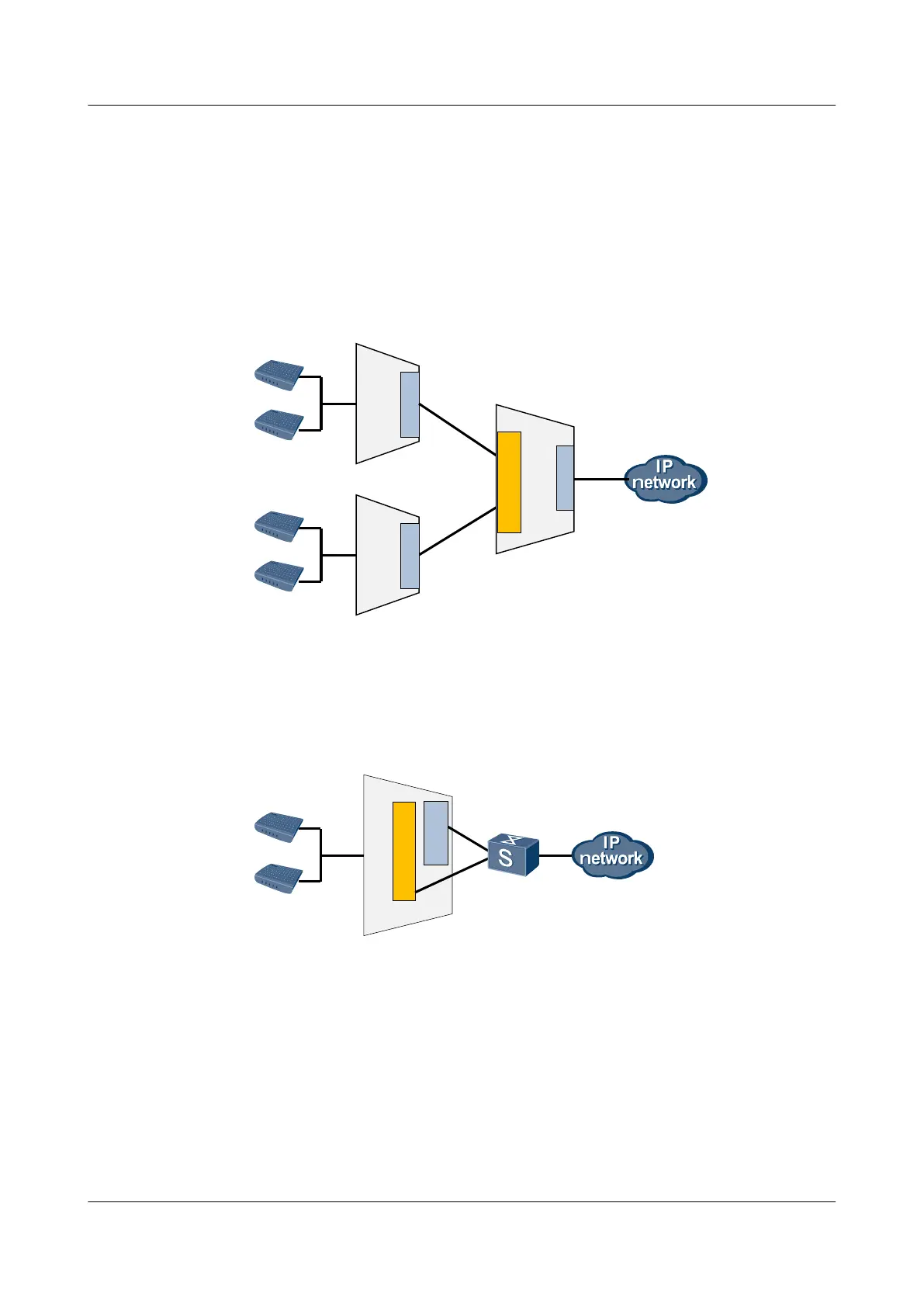

Figure 3-56 H801ETHB used for Ethernet cascading
G
I
U
G
I
U
GE
GE
CPE
CPE
E
T
H
B
G
I
U
Cascading node
Access node
Cascading node
l When the upstream ports on the control board and GIU board are insufficient, the
H801ETHB board can be used for Ethernet upstream transmission.
Figure 3-57 H801ETHB used for Ethernet upstream transmission
E
T
H
B
G
I
U
GE
CPE
Access node
GE
l The H801ETHB board can be cascaded to remote GE extended subracks (for example,
MA5623AR), achieving aggregation management for remote GE extended subracks.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
348

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
