Working Principle

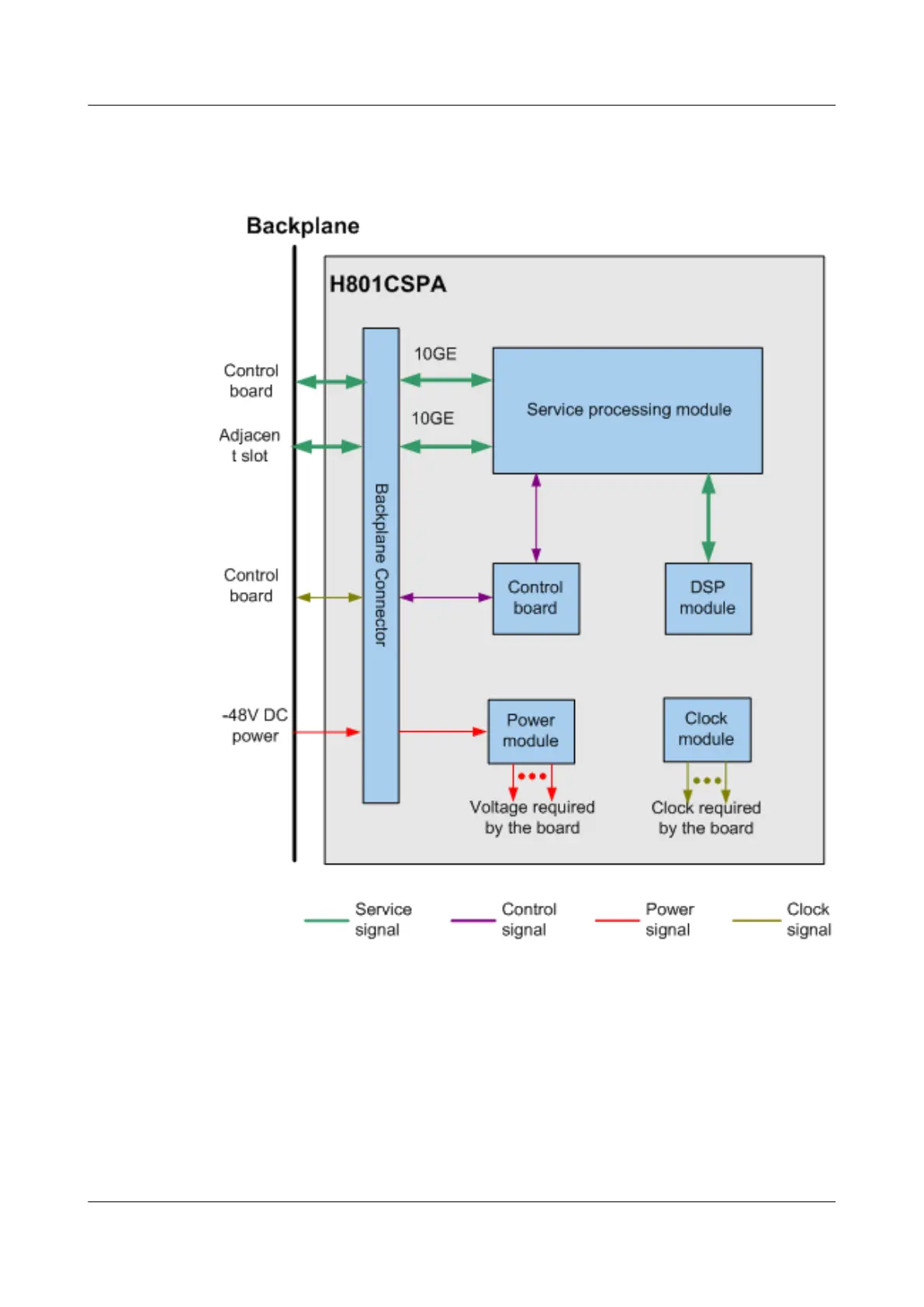

Figure 3-64 Working principle of the H801CSPA board
The basic working principle of the H801CSPA board is as follows:
l The control module loads the board software, controls the running of the board, and
manages the entire board.
l The service processing module implements the switching of the services.
l The DSP module implements the SAToP algorithm function.
l The power module draws -48 V power from the backplane and converts the power into
working power for each functional module of the board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
365

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
