Working Principle

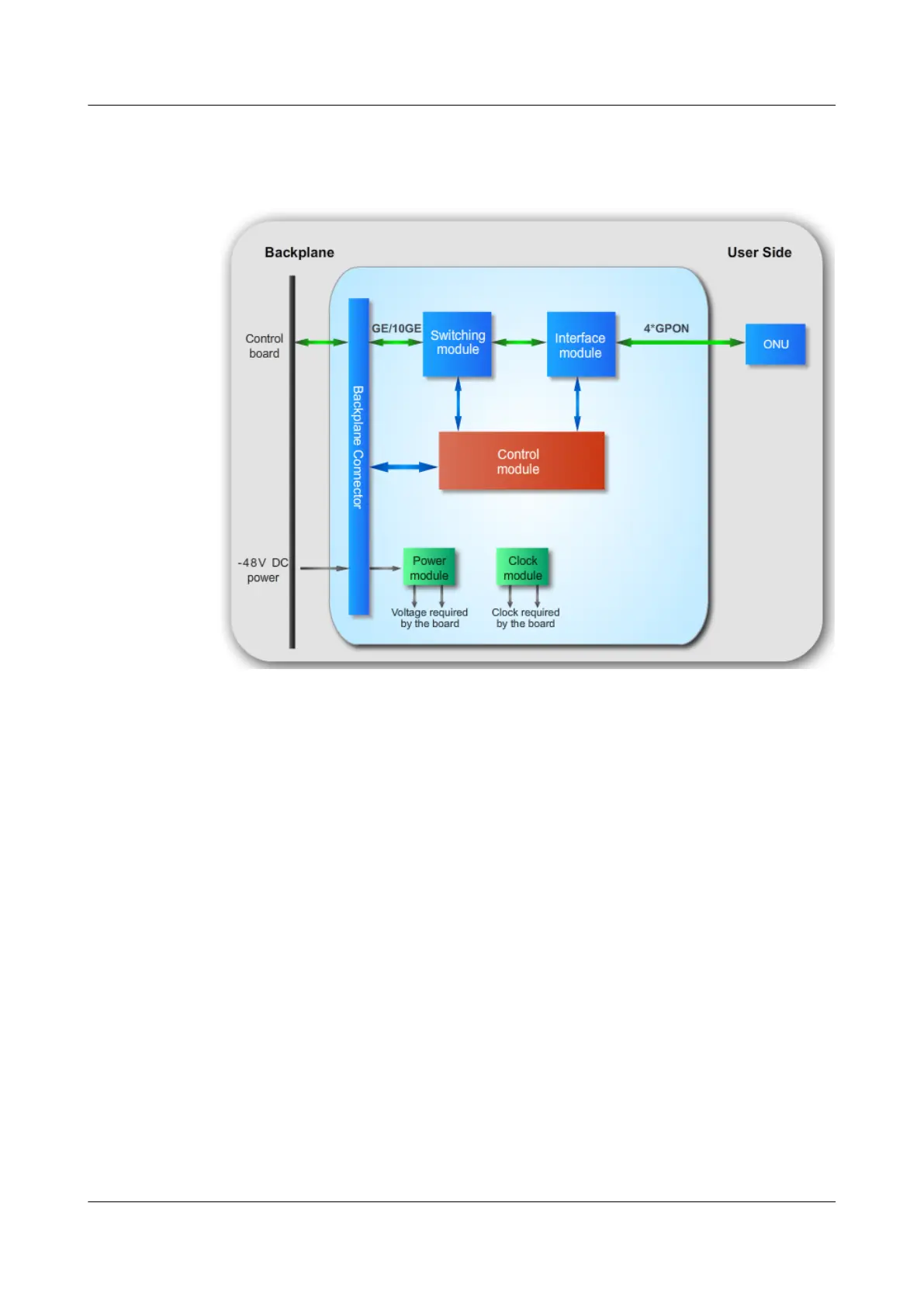

Figure 3-65 Working principle of the H801GPBC board
The basic working principle of the H801GPBC board is as follows:
l The control module loads the board software, controls the running of the board, and
manages the entire board.
l The switching module aggregates the signals from four GPON ports.
l The interface module performs conversion between GPON optical signals and Ethernet
packets.
l The power module supplies power to each functional module of the board.
l The clock module provides clock signals for each functional module of the board.
