NOTE
l When working with the one-channel modules, it provides 24-channel GE/FE optical access.
l When working with the bi-channel optical modules, it provides 48-channel GE/FE optical access.
Cable

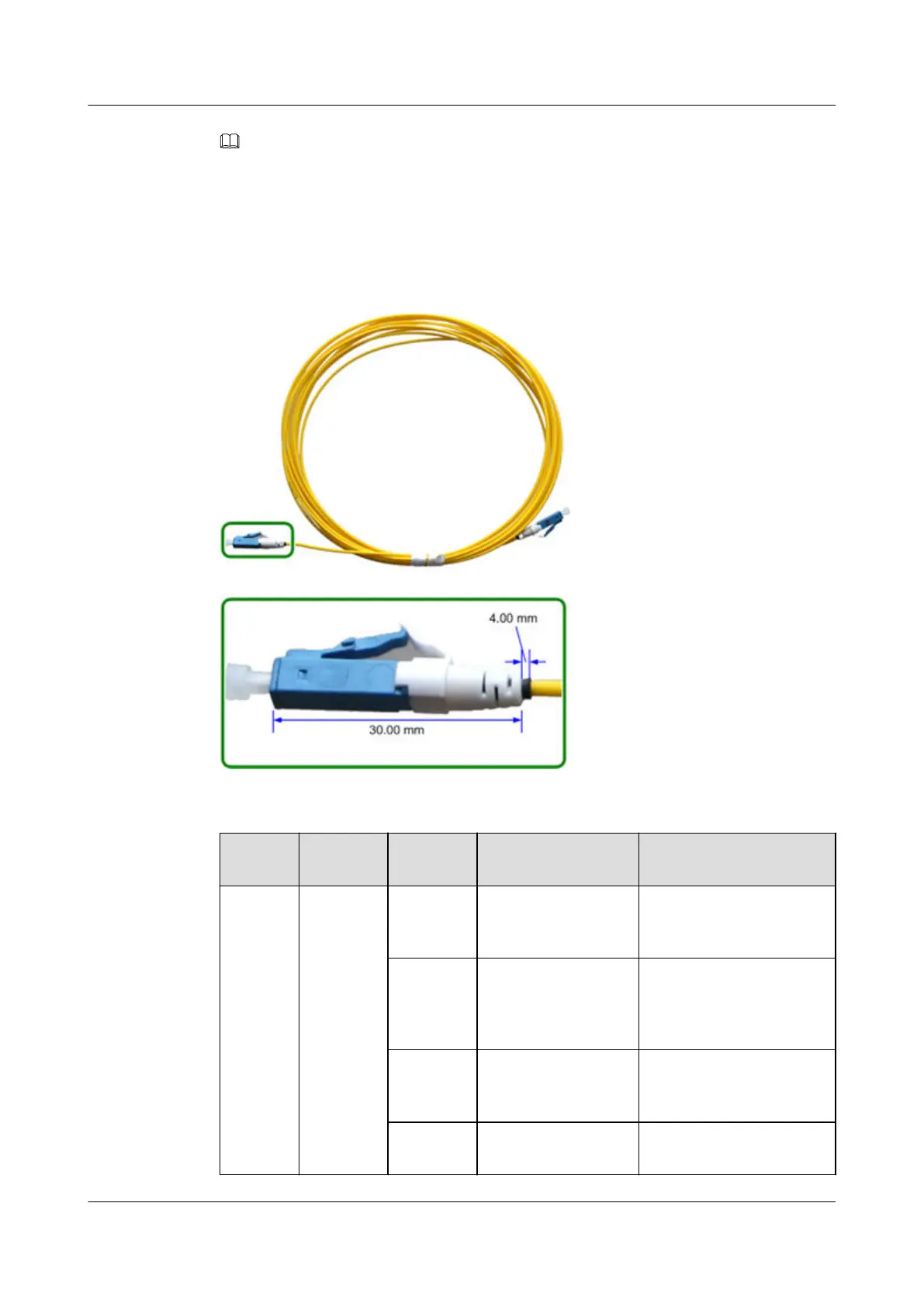

The LC optical connector used in H802OPGE is shorter than the average LC optical
connector.
Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Red Blinking The board enters the APP
start phase during the
board startup
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board enters the phase
of communication with the
control board during its
startup
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Orange Blinking A high-temperature alarm
is generated
