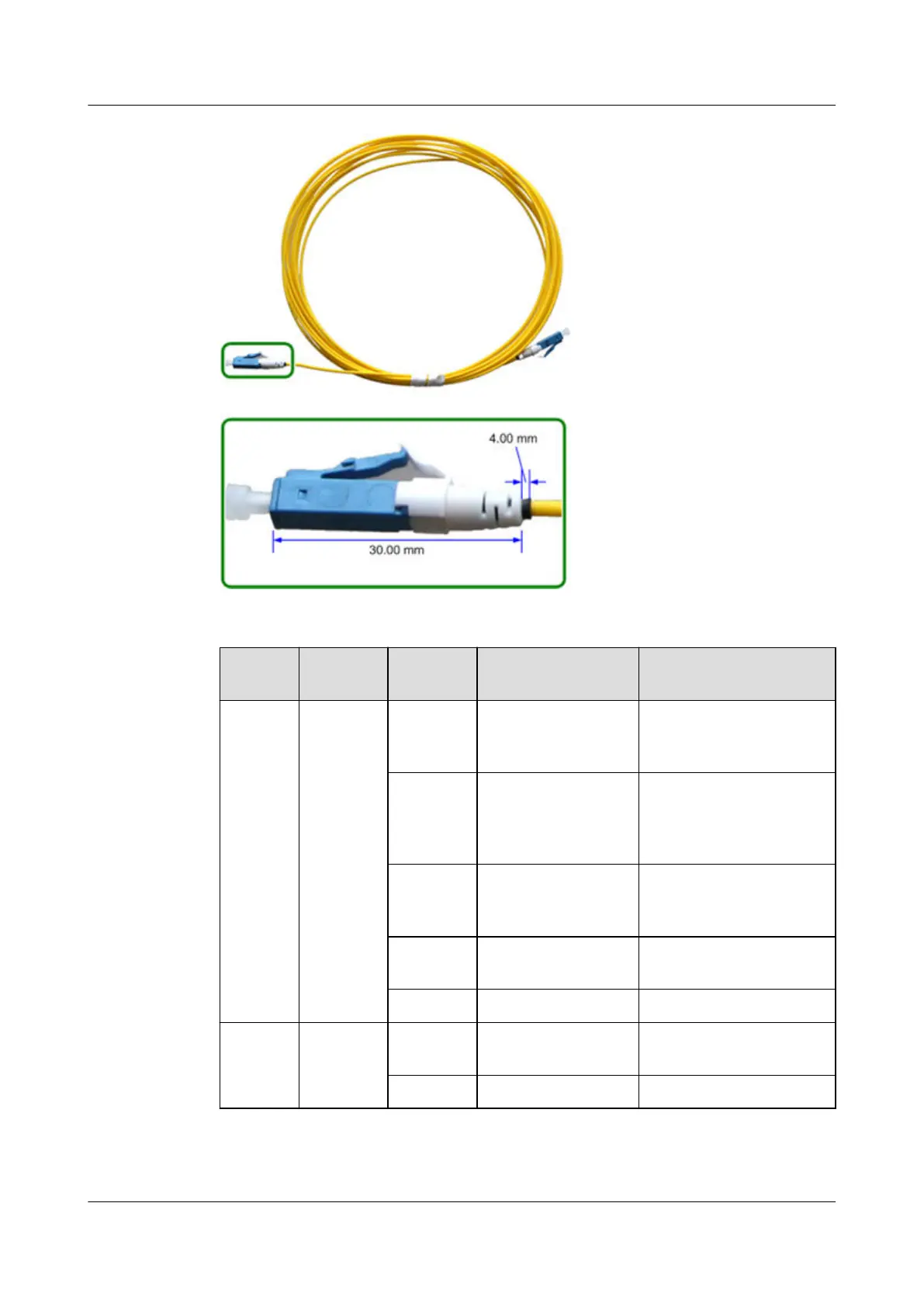

Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Red Blinking The board enters the APP
start phase during the
board startup
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board enters the phase
of communication with the
control board during its
startup
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Orange Blinking A high-temperature alarm
is generated
Red On The board is faulty
0-47 Link status
indicator
Green On The connection is
successful
- Off The connection fails
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
415
