Principles

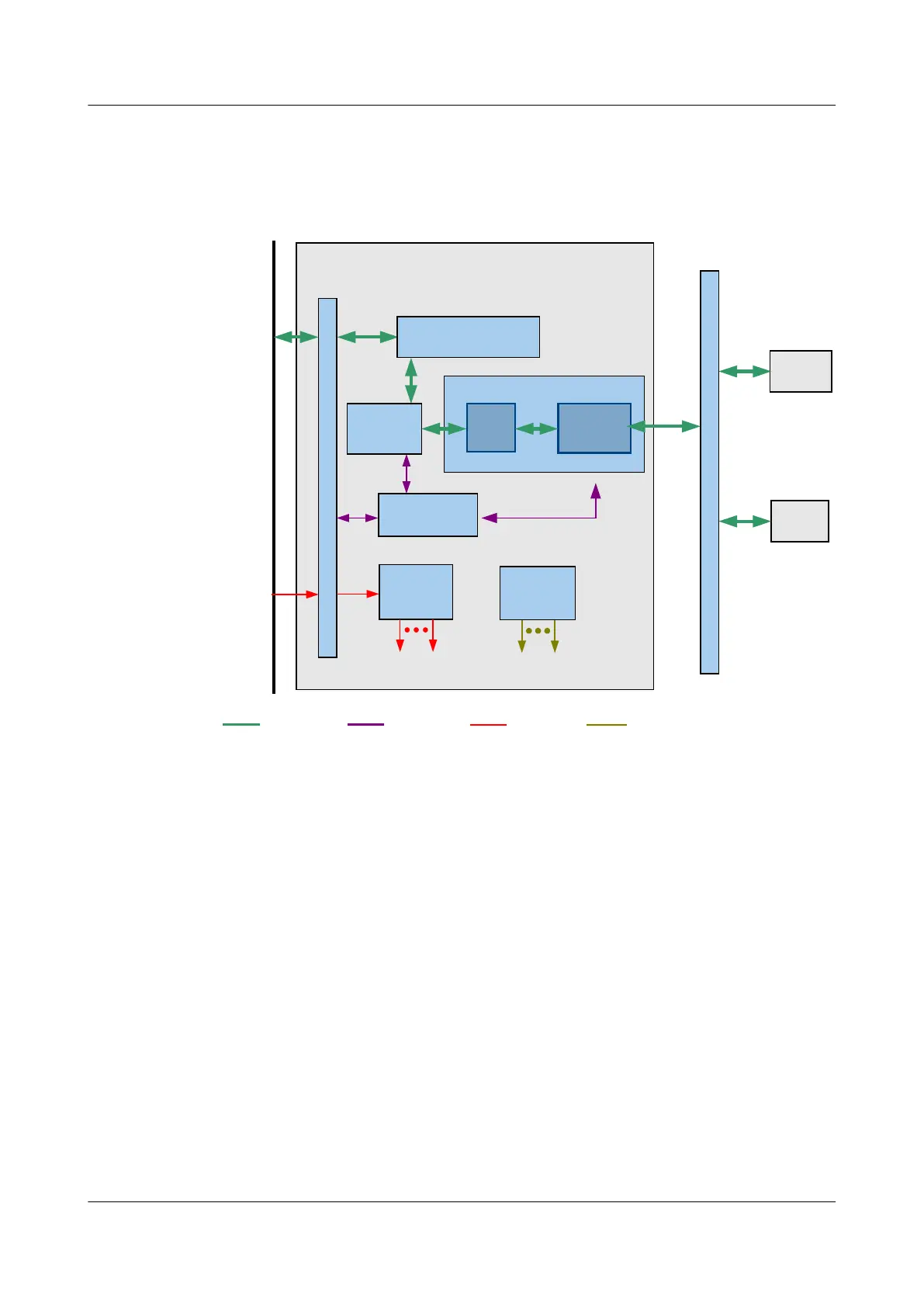

Figure 3-117 Working principle of the H805VDSF board
GE
H805VDSF
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Control
module
-48V
DC
power
Control
board
Service
signal
Control
signal
Power
signal
Clock
signal
Backplane
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
Interface
module
Forwarding module
Protection module
DC
block
Protector
VTU-R
PSTN
POTS
xDSL
VDSL
over
POTS
S
P
L
b
o
a
r
d
Front panel
The H805VDSF board mainly consists of these functional modules: control module,
forwarding module, interface module, power module, and clock module. The basic principles
are described as follows:
l The control module loads the board software, controls the running, and manages the
whole board.
l The protection module protects and isolates the board from lightning strikes. The DC
block isolates the direct current. The protector protects the high voltage.
l The forwarding module supports conversion between ATM/PTM services and IP
services, and also supports flow control and scheduling.
l The interface module provides the ports for information exchange.
l The power module supplies power to each functional module of the board.
l The clock module provides clock signals for each functional module of the board.
The service processing flow is as follows:
l In the upstream direction, the interface module converts the VDSL2 signals into a cell
flow, aggregates the flow to the forwarding module, and then reorganizes the cell flow
into ATM/PTM packets. The forwarding module encapsulates the reorganized
