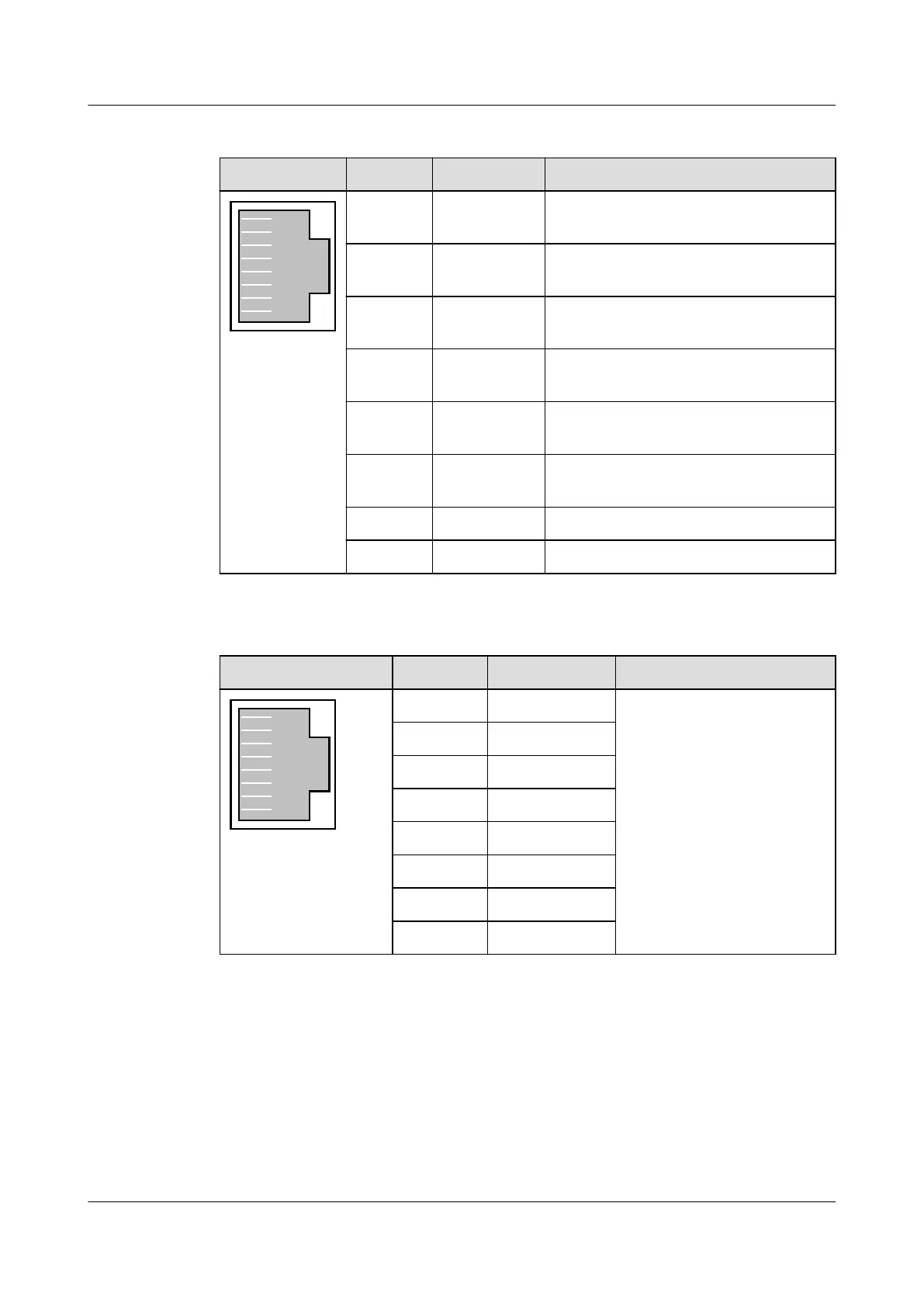

Table 3-153 Pin assignments of the BITS OUT port
Port Pin Signal Remarks
1
2
3
4
5
6
7
8
1 TOD_OUT- Negative polarity of the TOD time
signals output
2 TOD_OUT+ Positive polarity of the TOD time signals
output
3 PPS_OUT- Negative polarity of the PPS time signals
output
4 BITS_OUT_
B
Output B of the BITS clock signals
5 BITS_OUT_
A
Output A of the BITS clock signals
6 PPS_OUT+ Positive polarity of the PPS time signals
output
7 GND Grounding
8 - -
Table 3-154 Pin assignment of the ETH port
Port
Pin Signal Remarks
1
2
3
4
5
6
7
8
1 GE1_MDI_T0+ GE electrical port
2 GE1_MDI_T0-
3 GE1_MDI_T1+
4 GE1_MDI_T2+
5 GE1_MDI_T2–
6 GE1_MDI_T1-
7 GE1_MDI_T3+
8 GE1_MDI_T3-
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
732

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
