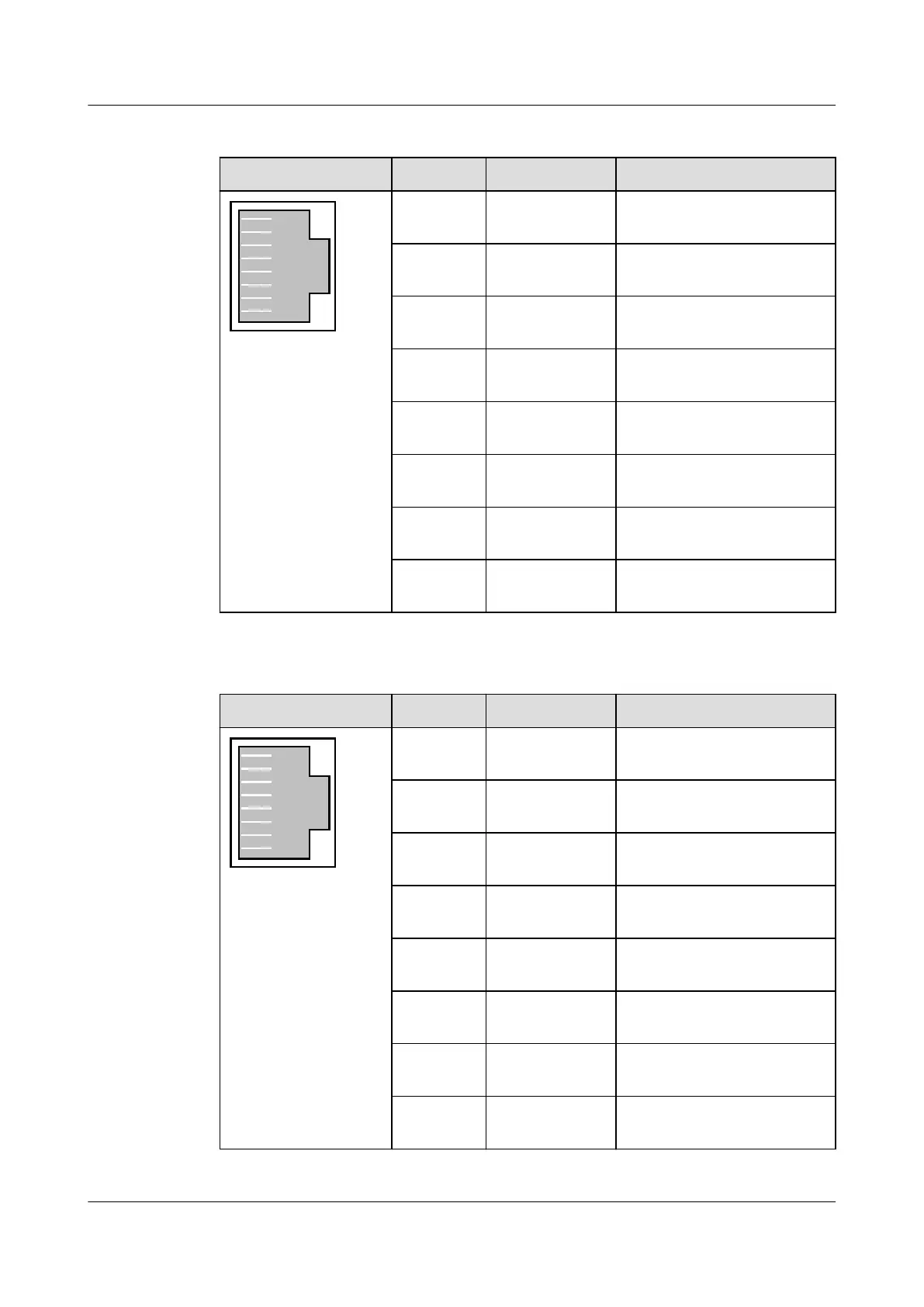

Table 3-163 Pin assignment of the ALM port (upper)
Port Pin Signal Remarks
1
2
3
4
5
6
7
8
1 ALM_IN0_+ Positive polarity of channel 0
alarm digital parameter signals
2 ALM_IN0_- Negative polarity of channel 0
alarm digital parameter signals
3 ALM_IN1_+ Positive polarity of channel 1
alarm digital parameter signals
4 ALM_IN2_+ Positive polarity of channel 2
alarm digital parameter signals
5 ALM_IN2_- Negative polarity of channel 2
alarm digital parameter signals
6 ALM_IN1_- Negative polarity of channel 1
alarm digital parameter signals
7 ALM_IN3_+ Positive polarity of channel 3
alarm digital parameter signals
8 ALM_IN3_- Negative polarity of channel 3
alarm digital parameter signals
Table 3-164 Pin assignment of the ALM port (lower)
Port
Pin Signal Remarks
1
2
3
4
5
6
7
8
1 ALM_IN4_+ Positive polarity of channel 4
alarm digital parameter signals
2 ALM_IN4_- Negative polarity of channel 4
alarm digital parameter signals
3 ALM_IN5_+ Positive polarity of channel 5
alarm digital parameter signals
4 ALM_IN6_+ Positive polarity of channel 6
alarm digital parameter signals
5 ALM_IN6_- Negative polarity of channel 6
alarm digital parameter signals
6 ALM_IN5_- Negative polarity of channel 5
alarm digital parameter signals
7 ALM_OUT_+ Positive polarity of alarm
signal control output
8 ALM_OUT_- Negative polarity of alarm
signal control output
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
740

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
