l The switching module is used for the interconnection between the main control board,
control and sercvice integration module.
l The power module supplies power to other function modules of the board.
l The clock module provides the working clock for other function modules of the board.
The service process of the H806VPGA board is as follows:
l H806VPGA connects with other service boards by vectoring bus, which enables the
H806VPGA board to calculate the link signal compensation for each service board.
l H806VPGA interconnects with the other H806VPGA by vectoring bus, which provides
link signal compensation for vectoring.

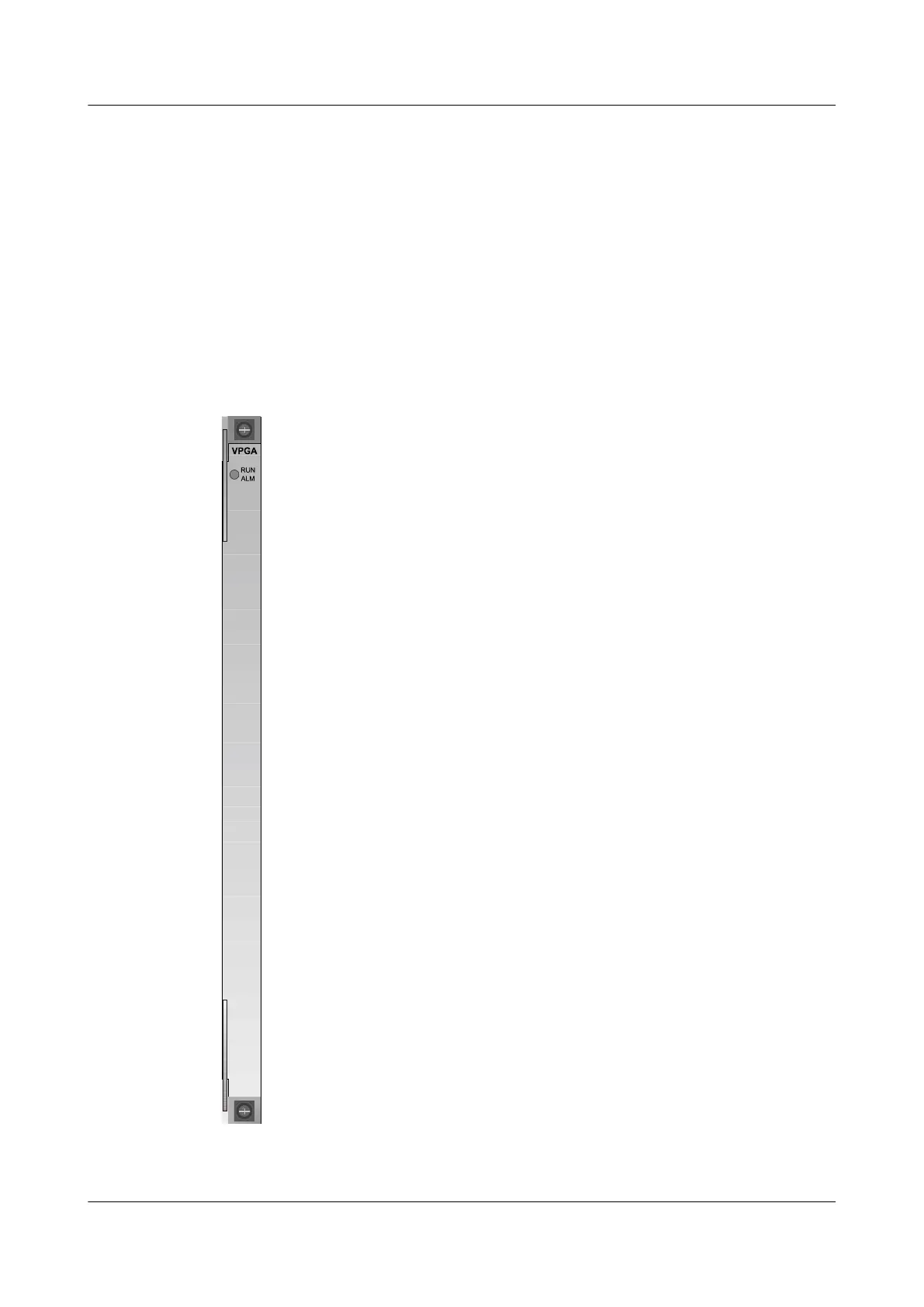

Front Panel Port
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
743

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
