Huawei SmartAX MA5608T Hardware Description

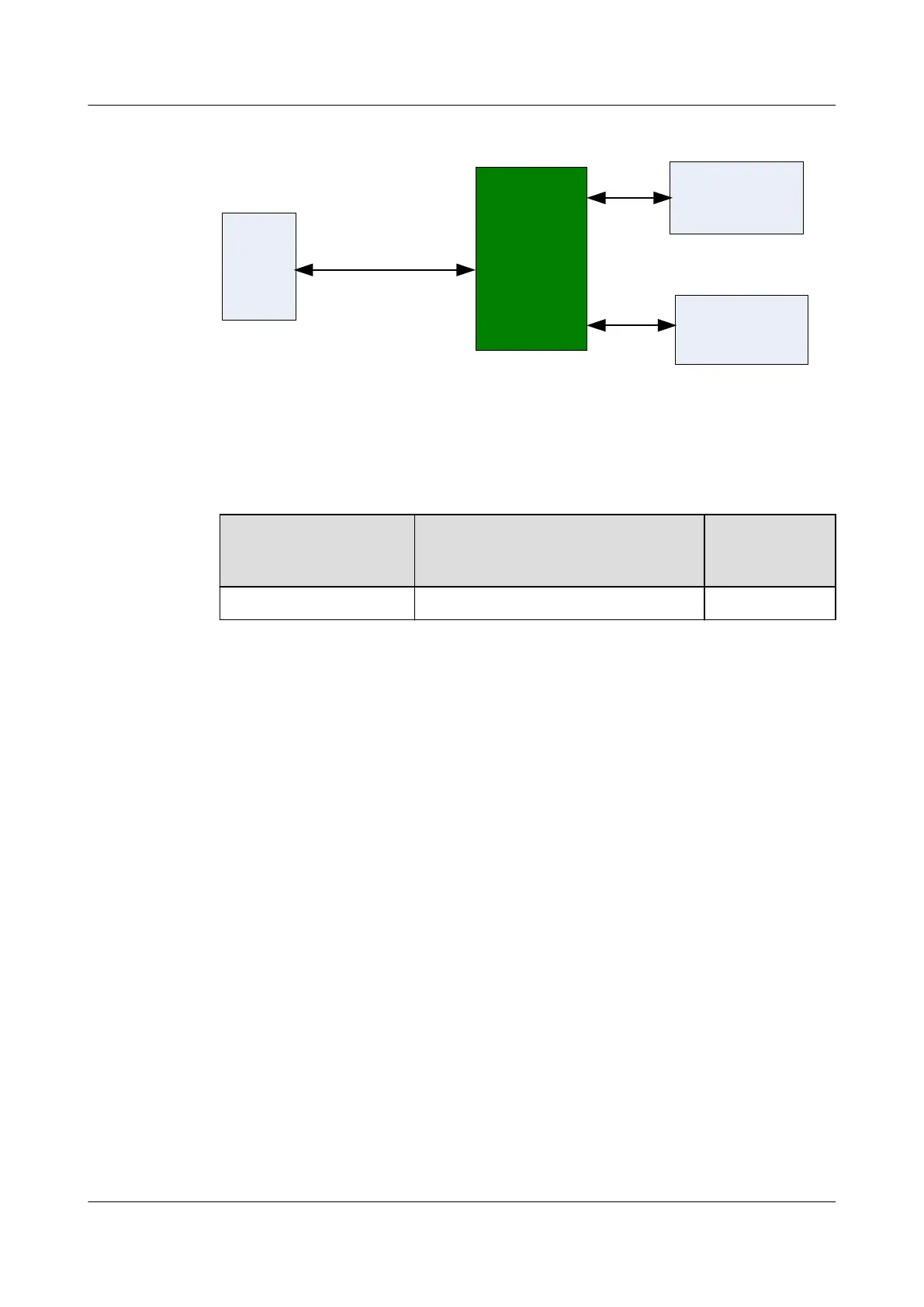

Figure 3-159 External connections of the H801VSNLA board
VDSL2 over POTS
VDSL2
POTS
VDSL2
service board
PSTN device
VSNLA
VTU-R
Technical Specifications
Table 3-212 Technical specifications of the H801VSNLA board
Board
Dimensions (W x D x H) Maximum
Power
Consumption
H801VSNLA 22.86 mm x 237.00 mm x 395.40 mm 0 W
Working Principle
The H801VSNLA board consists of two parts: splitter module and protection module. The
splitter module separates the VDSL signals and the POTS signals. The protection module
supports the over-voltage protection of the LINE line.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
817

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
