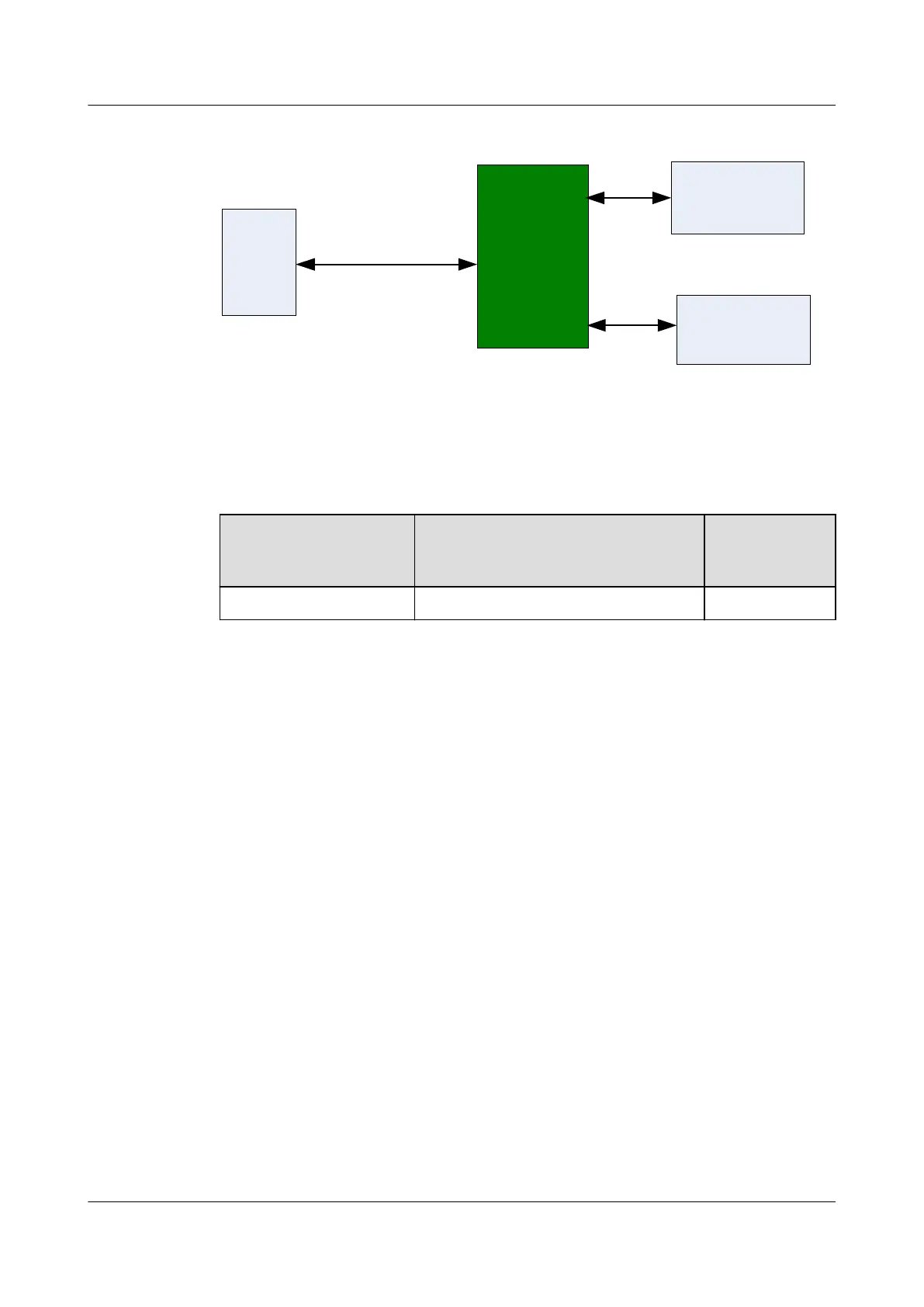

Figure 3-160 External connections of the H801VSPHA board
VDSL2 over ISDN
VDSL2
ISDN
VDSL2
service board
PSTN device
VSPHA
VTU-R
Technical Specifications
Table 3-215 Technical specifications of the H801VSPHA board
Board
Dimensions (W x D x H) Maximum
Power
Consumption
H801VSPHA 22.86 mm x 237.00 mm x 395.40 mm 0 W
Working Principle
The H801VSPHA board consists of 2 parts: splitter module and protection module. The
splitter module separates the VDSL signals and the ISDN signals. The protection module
supports the over-voltage protection of the LINE line.
