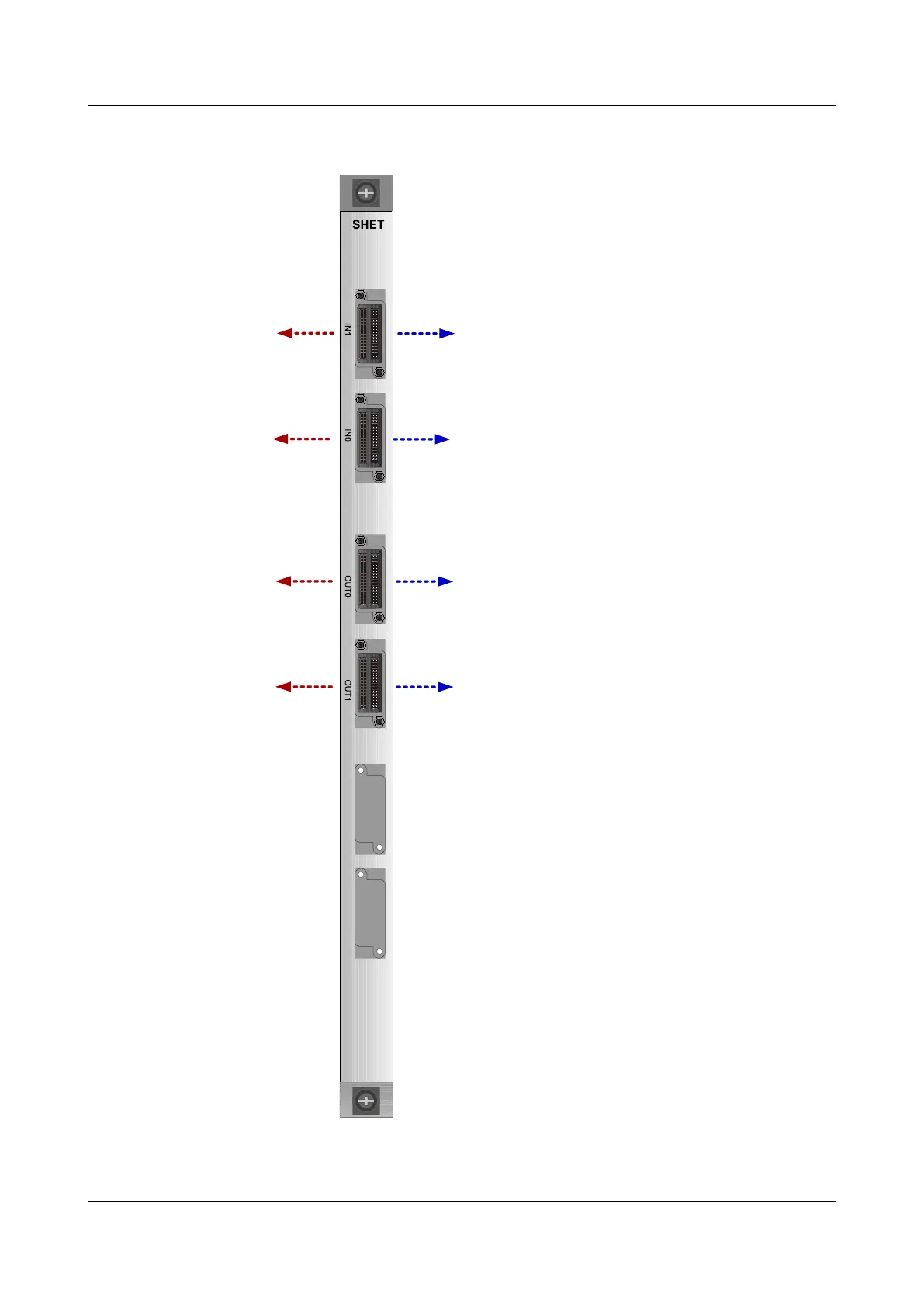

Front Panel Port
IN1
(32-63)
OUT0
(0-31)
IN0
(0-31)
OUT1
(32-63)
Connected to the MDF
Connected to the MDF
Connected to xDSL/POTS
port of the service board
Connected to xDSL/POTS
port of the service board
