Huawei SmartAX MA5608T Hardware Description

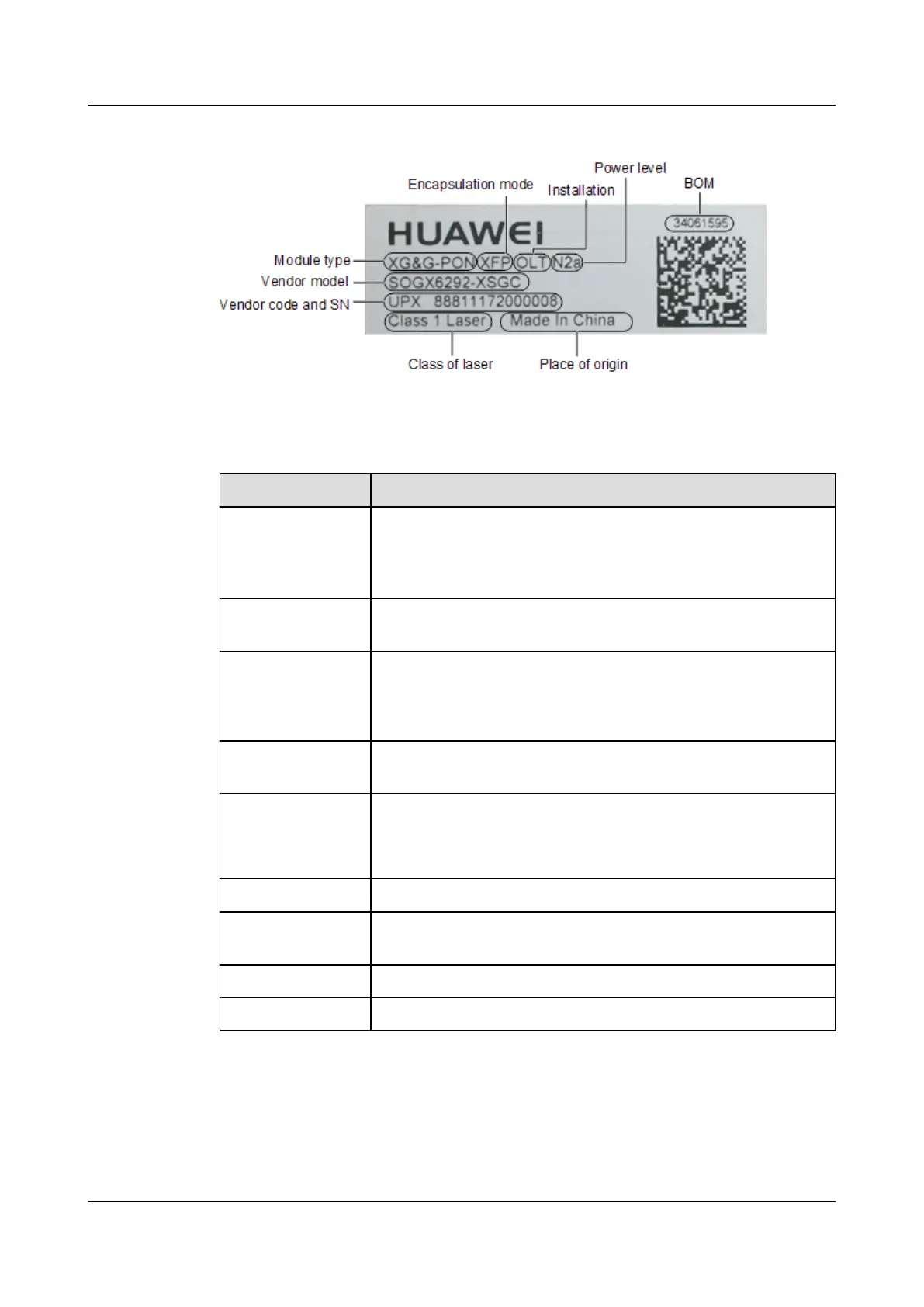

Figure 4-1 Appearance of the Label on a PON Optical Module
Table 4-1 Description of the Label on a PON Optical Module
Item
Description
Item number
(BOM)
Part identification code. It consists of 8-17 digits containing letters,
number, and symbols - =. It is also called part number (PN for
short). The BOM of optical and electrical modules consist of 8 or 12
digits.
Module type Optical module types include GPON, XGPON, XGSPON, XG&G-
PON, and XGS&G-PON.
Encapsulation mode Encapsulation mode of an optical module.
NOTE
This field is displayed on only combo PON (XG&G-PON and XGS&G-
PON) modules.
Installation Device on which an optical module is installed: OLT, ONU, and
ONT.
Power level
l GPON: CLASS B+/C+/C++
l XGPON/XGSPON: N1/N2a
l XG&G-PON and XGS&G-PON: N1/N2a/D1/D2
Vendor model Model of an optical module vendor.
Vendor code and
SN
Code and SN of an optical module vendor.
Class of laser Class of laser (CLASS 1 LASER) of an optical module.
Place of origin Place where an optical module is produced.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
4 Optical and Electrical Module
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
844

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
