Huawei SmartAX MA5608T Hardware Description

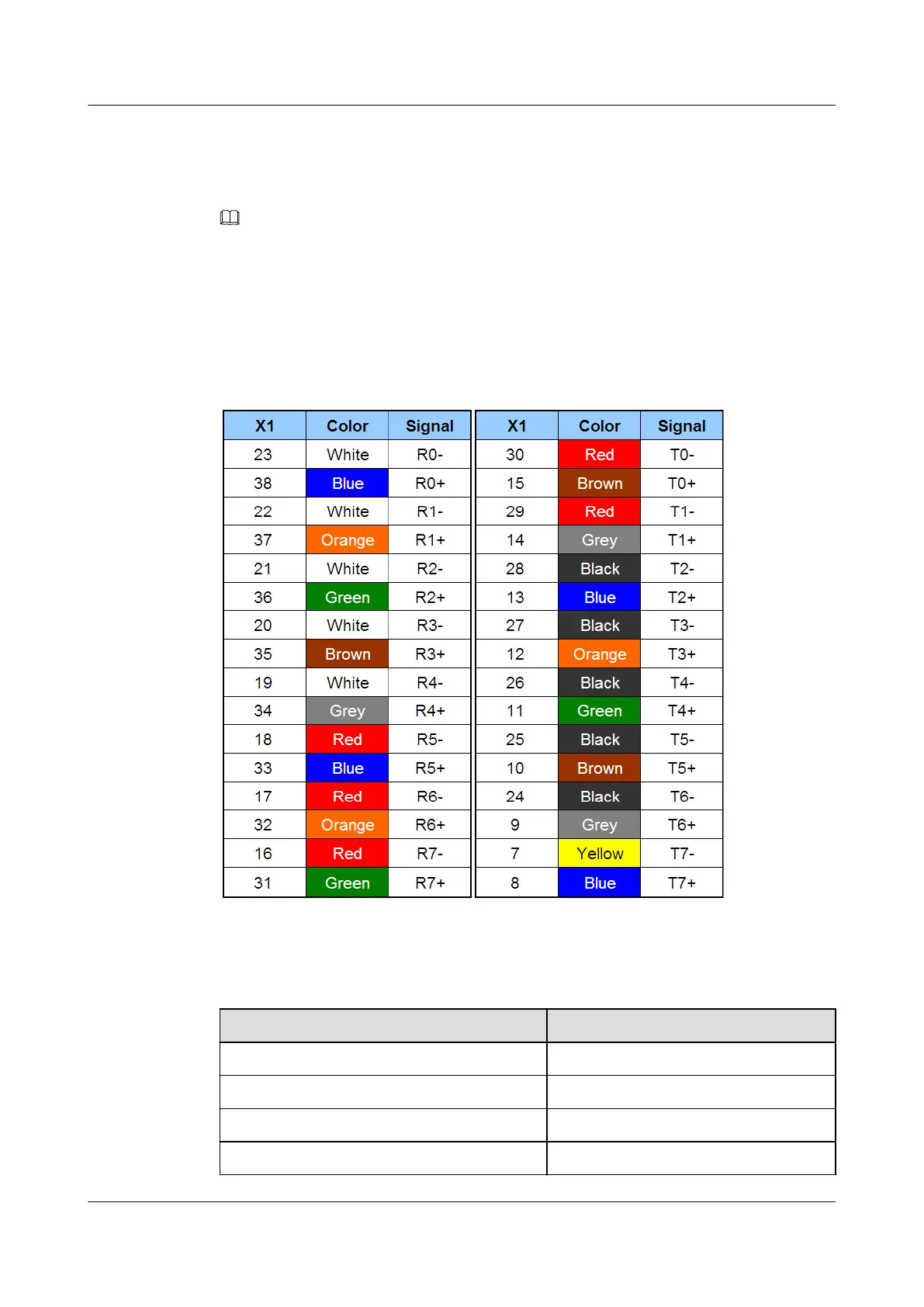

Pin Assignments
NOTE
A 120-ohm E1 trunk cable is a twisted pair cable consisting of two wires.
"Rx/Tx Channel" in the following table indicates that the transmitting is from the board and the
receiving is to the board.
l R0-: negative pole on the receive end of channel 0 E1 signals
l R0+: positive pole on the receive end of channel 0 E1 signals
l T0-: negative pole on the transmit end of channel 1 E1 signals
l T0+: positive pole on the transmit end of channel 1 E1 signals
Technical Specifications
Specification
Description
Connector DB44 connector
Cable type Symmetrical twisted pair
Characteristic impedance 120.0 ohms
Core diameter of the inner conductor 0.50 mm
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
894

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
