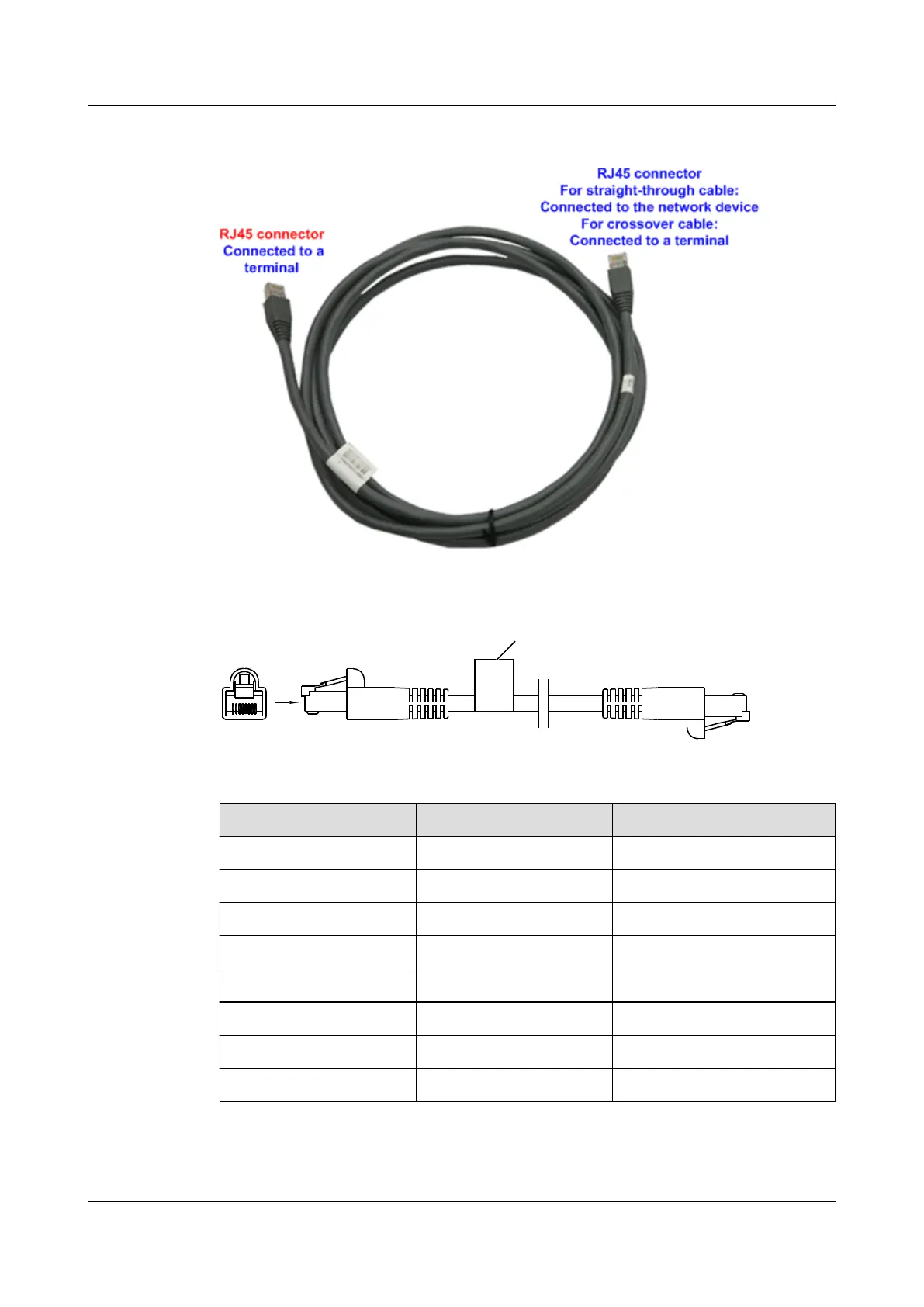

Cable Appearance
Cable Structure
Main label
X1
X2
View A
A
1 8
Table 5-4 Pin assignments of a straight-through cable
X1 Pin
Wire Color X2 Pin
1 White and orange 1
2 Orange 2
3 White and green 3
4 Blue 4
5 White and blue 5
6 Green 6
7 White and brown 7
8 Brown 8
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
