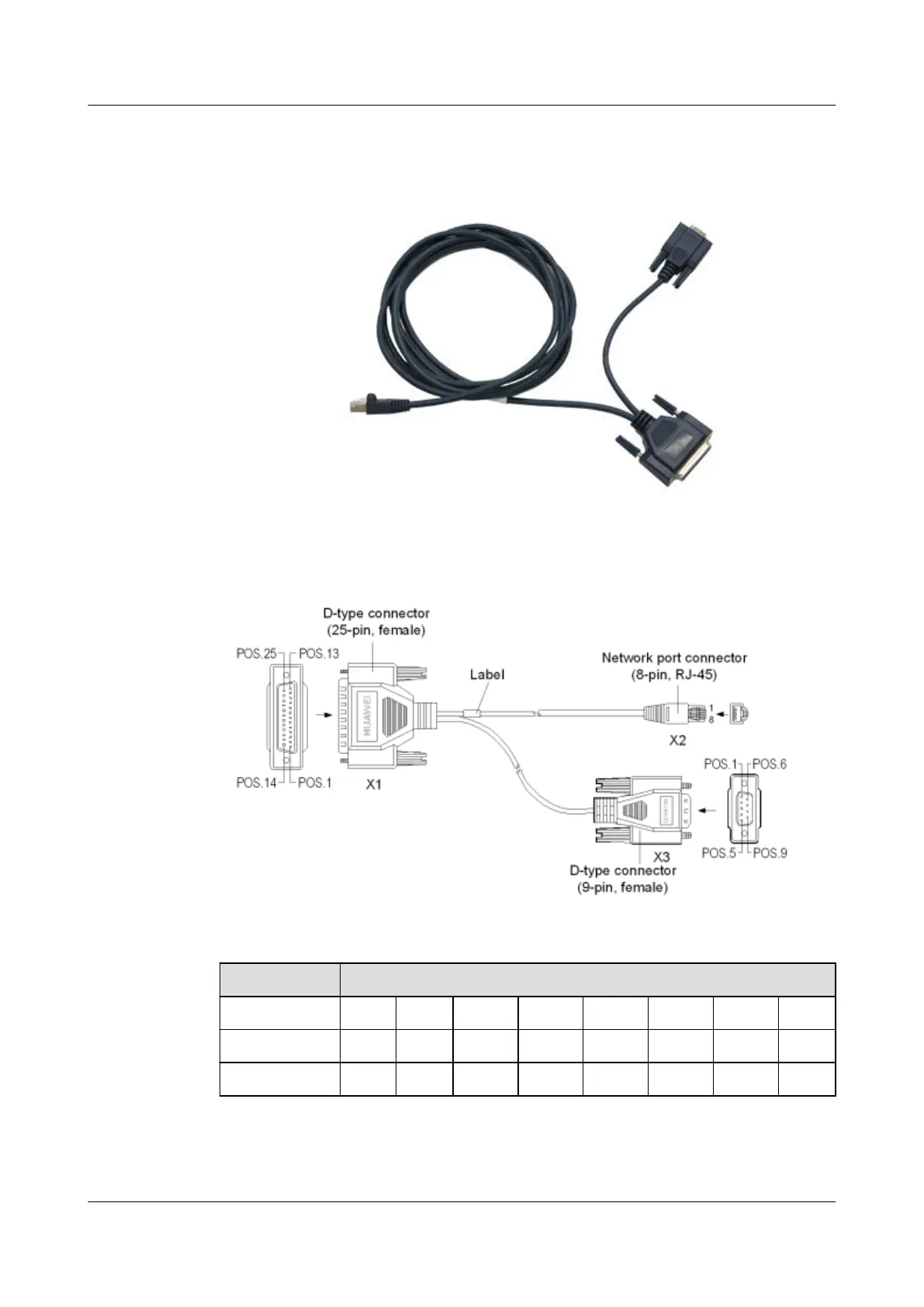

Cable Appearance
RJ45 connector
Connected to a
maintenance serial
port of the device
DB9 female connector
Connected to the
maintenance terminal
DB25 Female connector
Connected to the
maintenance terminal
Cable Structure
Table 5-8 Pin assignments of the local maintenance serial cable
Connector
Pin Mapping
X2 (RJ45) 1 2 3 4 5 6 7 8
X1 (DB-25) 5 6 3 1 7 2 20 4
X3 (DB-9) 8 6 2 5 5 3 4 7
