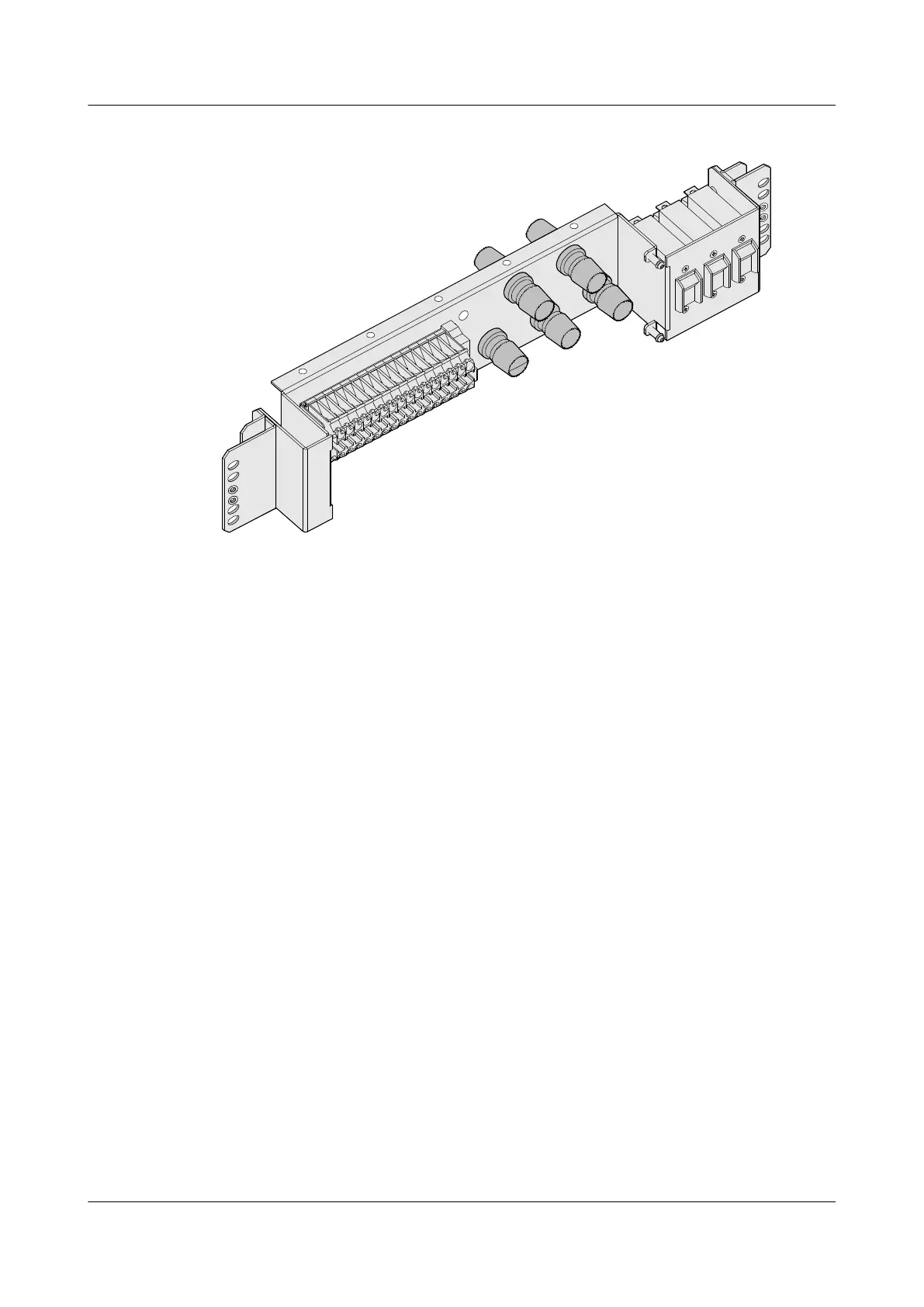

Figure 6-15 Appearance of the B-type DC PDU (without cover)
Function
The functions of the B-type PDU are as follows:
l Provides two -48 V/-60 V inputs.
l Provides eight -48 V/-60 V outputs.
Power Distribution Principle
Figure 6-16 shows the power distribution principle of the B-type DC PDU.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
925
