Huawei SmartAX MA5608T Hardware Description

Specification
Item
Specification
Dimensions (W x D x H) 486.00 mm x 245.20 mm x 44.00 mm
Weight 2.90 kg
Power consumption
l Static: 23 W
l Maximum: 65 W
NOTE
In the case of Access device, power consumption is generally transformed into heat consumption.
Hence, heat consumption (BTU/h) and power consumption (W) can be converted to each other in the
formula: 1 BTU/h = 0.2931 W.
Function

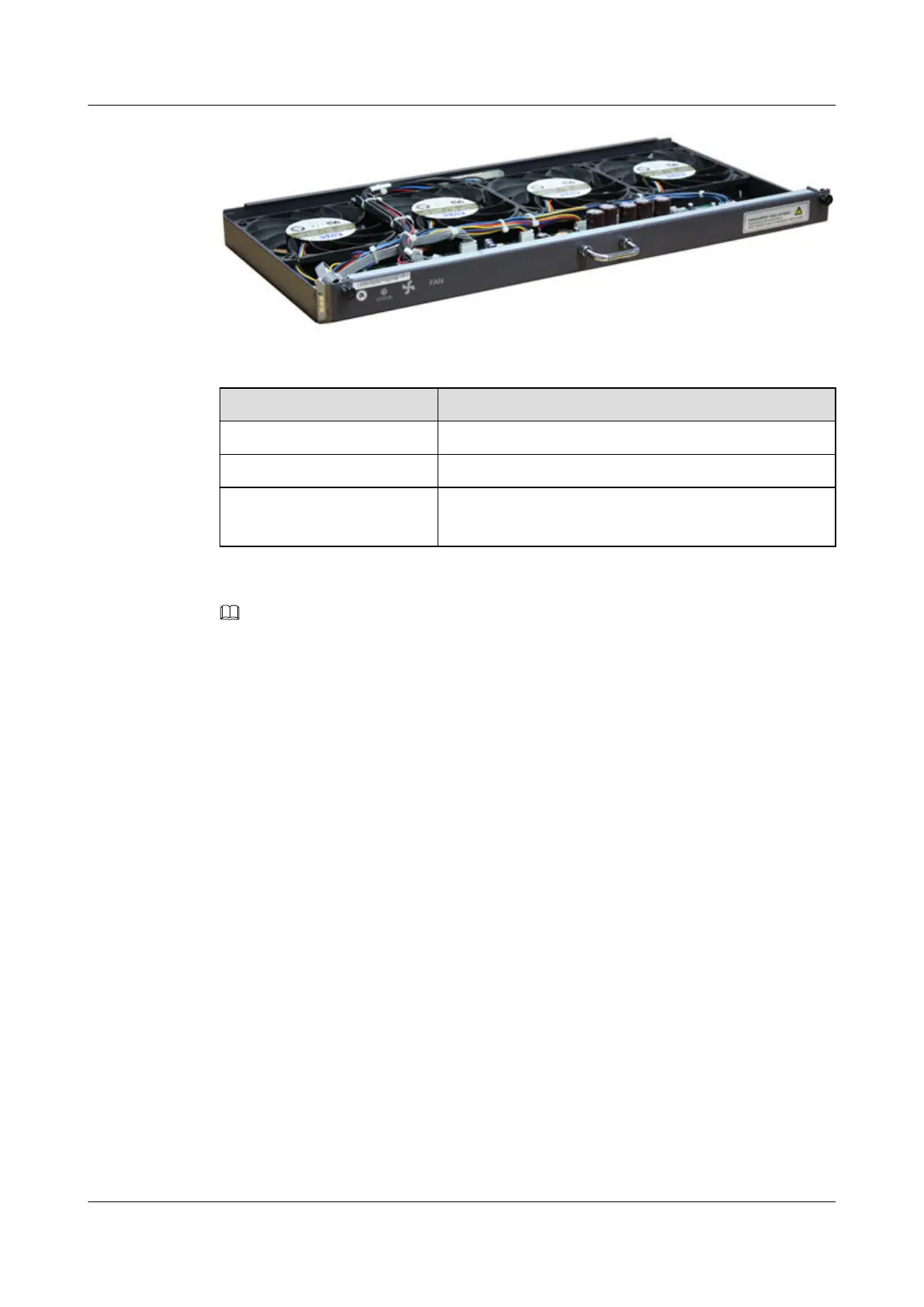

The functions of the fan tray are as follows:
l Heat dissipation
The fan tray is at the top of the service subrack and exhausts hot air for heat dissipation.
The cool air flows to the subrack from the bottom of the subrack and then is exhausted
from the top of the subrack after passing the boards.
l Monitoring
The fan tray is configured with the fan monitoring board to detect whether the fans are
working in the normal state. The fan monitoring board also provides the port for
communication with the control board. The detected information is transmitted to the
control board through the fan monitoring board periodically.
l Speed adjustment
The rotating speed of the fans can be adjusted according to the detected temperature
automatically or be adjusted by setting the related data manually.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
76

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
