CUMC receive functions include the following:
•Downconvert the appropriate RF channel under software control.
•Demodulate and perform diversity combining.
•Based on the operational mode, perform the baseband and error
control processing functions on the demodulated signal.
•Support control channels, traffic channels, and scanning receivers.
M6100 DIGITAL/ANALOG
TELEPHONE
TRANSCEIVER
UNIT
SND
PWR
END
2
3
4
5
6
7
8
9
*
0
RCL
CLR
STO
P1
FCN
P2
#
DEF
MNO
WXY
ABC
JKL
TUV
GHI
PRS
OPR
Digital
InUse
1
QZ
P1
FCN
P2
RCL
CLR
STO
SND
PWR
END

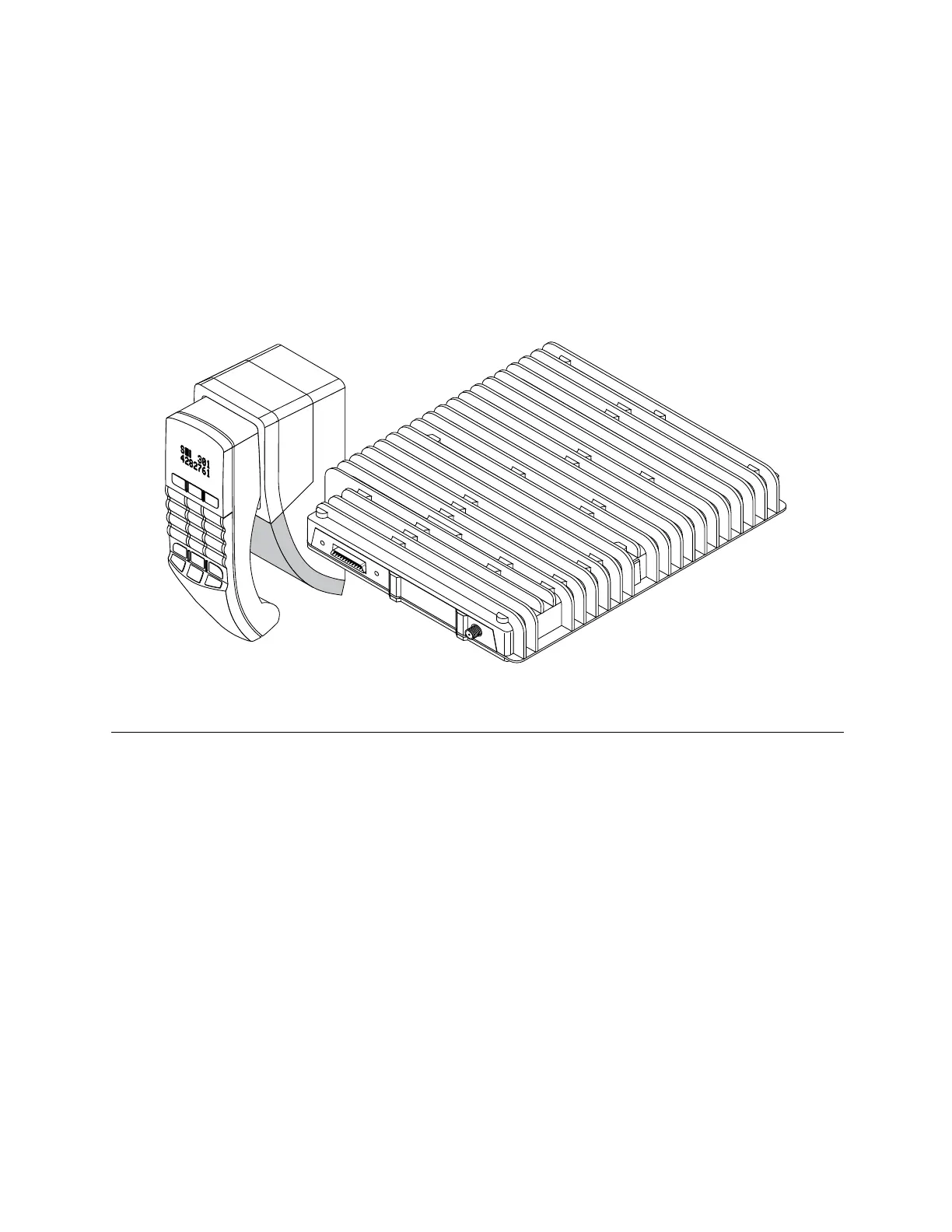

Figure 1-6. M6100 telephone and transceiver unit
1.5
Mobile station
The MS typically consists of an M6100™ digital/analog cellular
telephone and a transceiver unit (see figure 1-6).
M6100 digital/analog
cellular telephone
M6100 cellular telephone features include the following:
•Support for AMPS, IS-54, and E-TDMA standards.
•Memory that stores up to 99 phone numbers.
•Two hot keys that store frequently called numbers.
•A 12-button dual-tone multi-frequency (DTMF) keypad.
•A vacuum fluorescent display with signal strength indicator.
