MOISTURE
BARRIER
BSC RACK

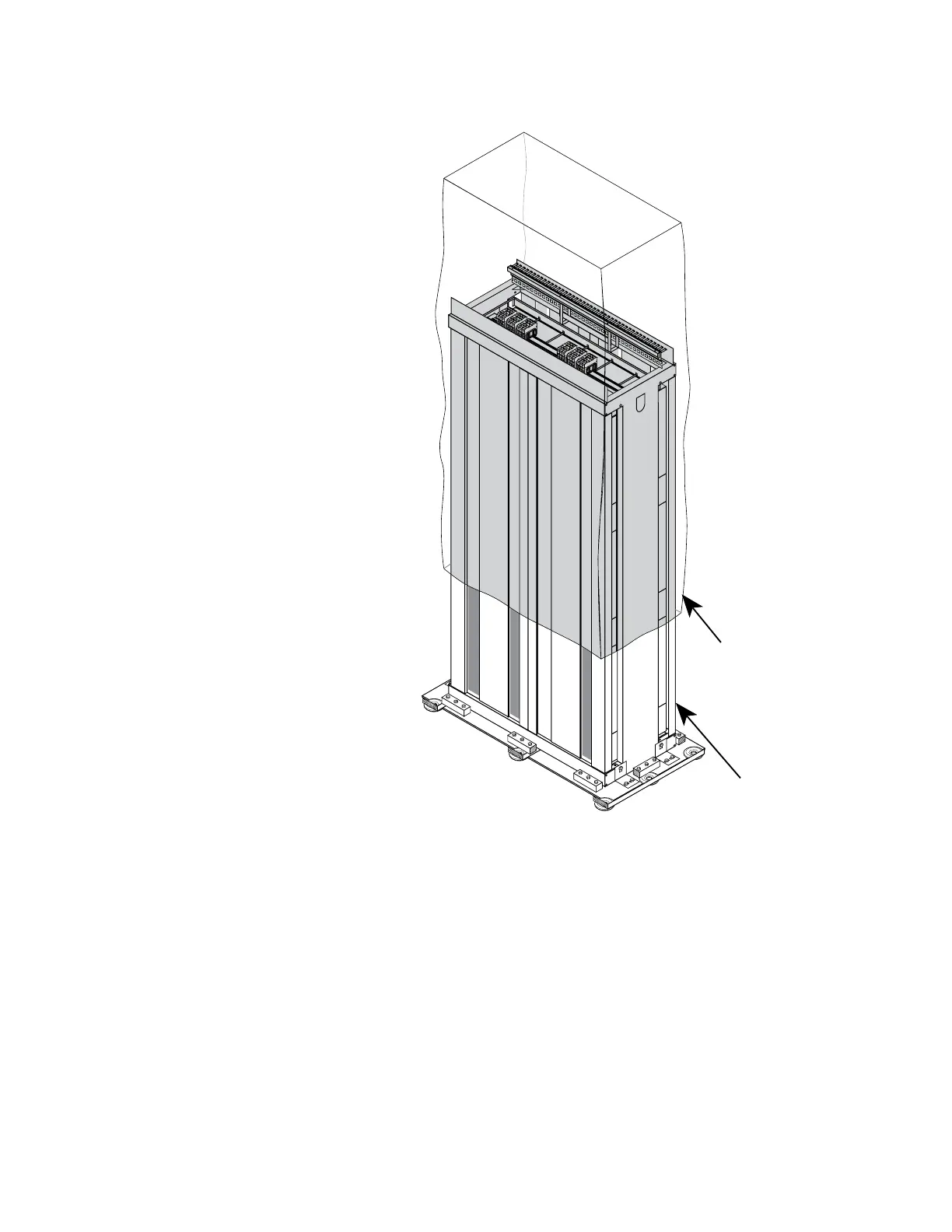

Figure 2-12. Moisture barrier removal
2. Remove the moisture barrier from the pallet (see figure 2-12 for
locations).
3. Using a socket wrench with a 1/4-inch socket, remove the lag
bolts attaching the three front sleeve braces to the pallet (see
figure 2-5).
