Unpacking the BSC rack
The BSC rack is shipped in one of two configurations (see figure 2-1):
• Configuration 1: The BSC rack is mounted on a pallet and is
protected by a moisture barrier, sleeve, cap, and restraint bands.
• Configuration 2. The rack is mounted on a pallet and is protected
by a moisture barrier and restraint bands.
If your shipment arrived in a configuration #1 container, refer to section
“Unpacking a configuration #1 shipment.” Otherwise, refer to section
“Unpacking a configuration #2 shipment.”
C
HAS
SIS
1
CIR
C
U
IT B
C
HA
SS
I
S
2
C
HA
SSIS
3
CH
A
SSI
S
1
CIR
C
UIT A
CHA
SSI
S
2
CH
A
S
S
IS
3
Subsidiary of
Hughes Aircraft Company
HUGHES
NETWORK SYSTEMS
CONFIGURATION #1 CONFIGURATION #2

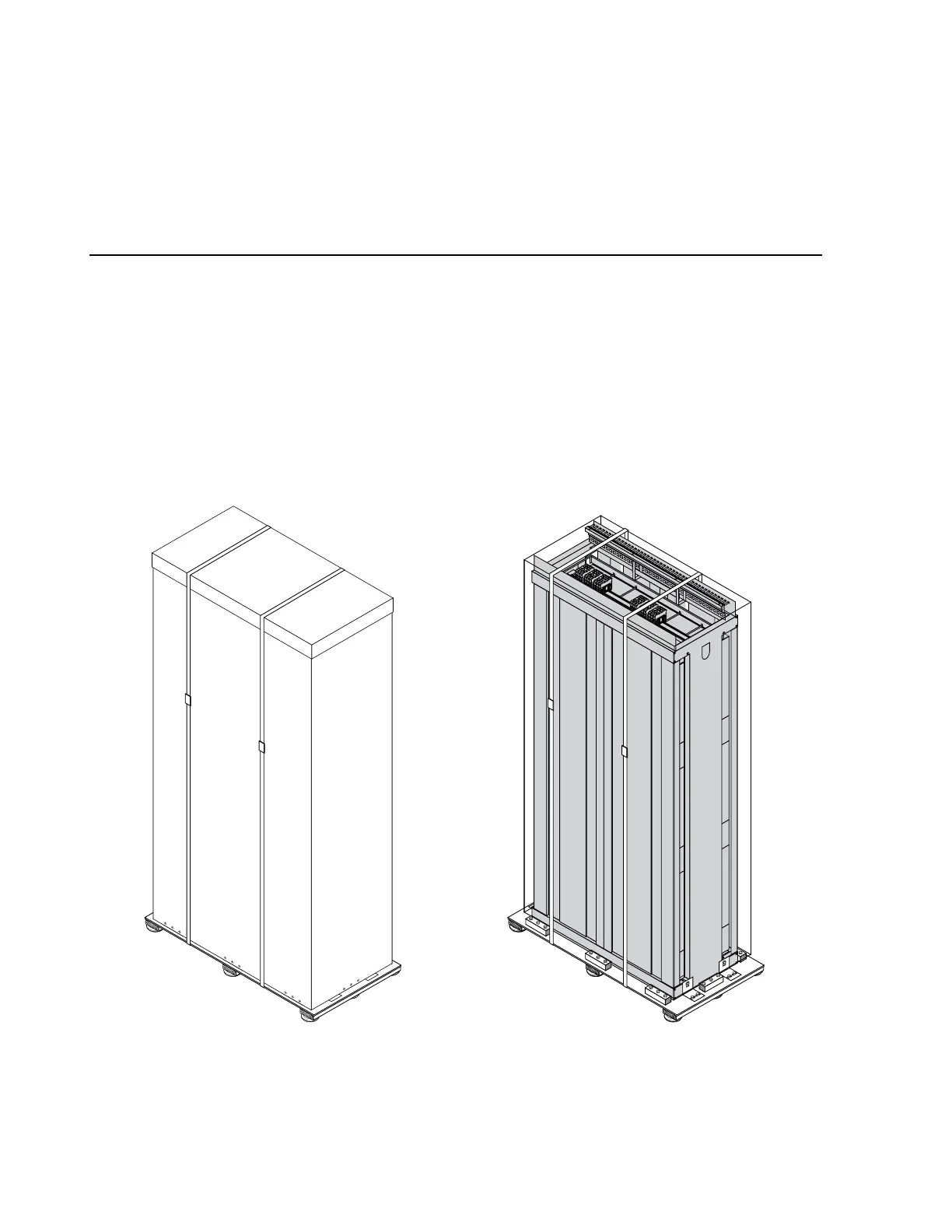

Figure 2-1. BSC rack shipping configurations
