Hughes Network Systems GMH2000 - BSC Rack Leveling Feet Locations

8018653 1.1 Installing BSC hardware • 2-13
15. There are leveling feet in the base of the rack, one near each
corner (see figure 2-8) that are used to plumb the rack. Verify
that the rack is correctly positioned, then, using a 1/2-inch
(11-mm) socket, extend each foot until a level placed across the
top of the rack—in two different axes—shows that the rack is
plumb (see figure 2-9).
LEVELING
BOLTS

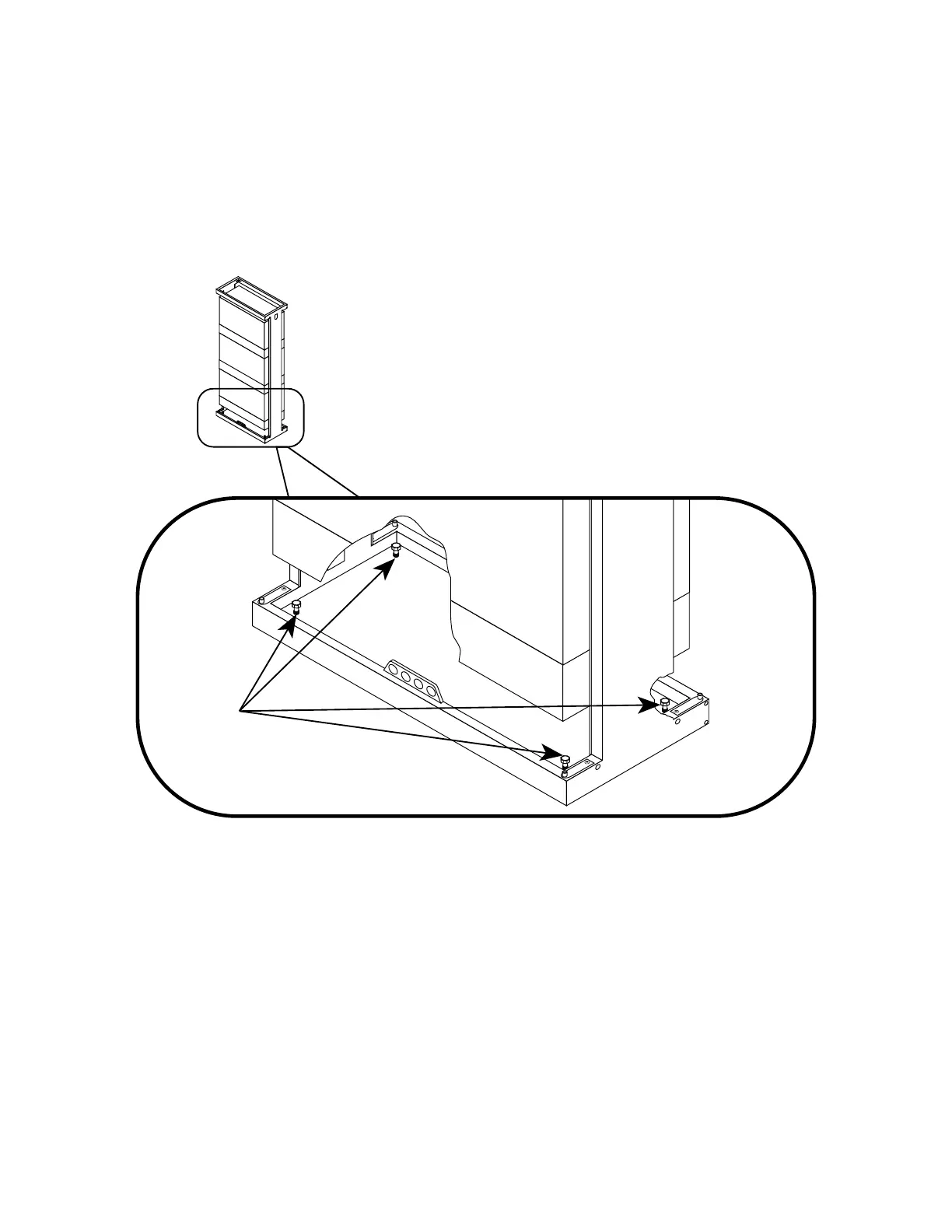

Figure 2-8. BSC rack leveling feet locations
