Install the Dual Touch Monitor 225
User Guide v 1.0 — February 2020 Maintenance
4. Connect the USB Extension cable (USB Type A connector end) to one of the available
USB ports on the bottom of the MCU enclosure. Refer to Figure 15-38.
5. Connect the DisplayPort to HDMI Converter (DisplayPort connector end) to the
DisplayPort connector (behind the VGA connector) on the bottom of the MCU
enclosure. Refer to Figure 15-39.

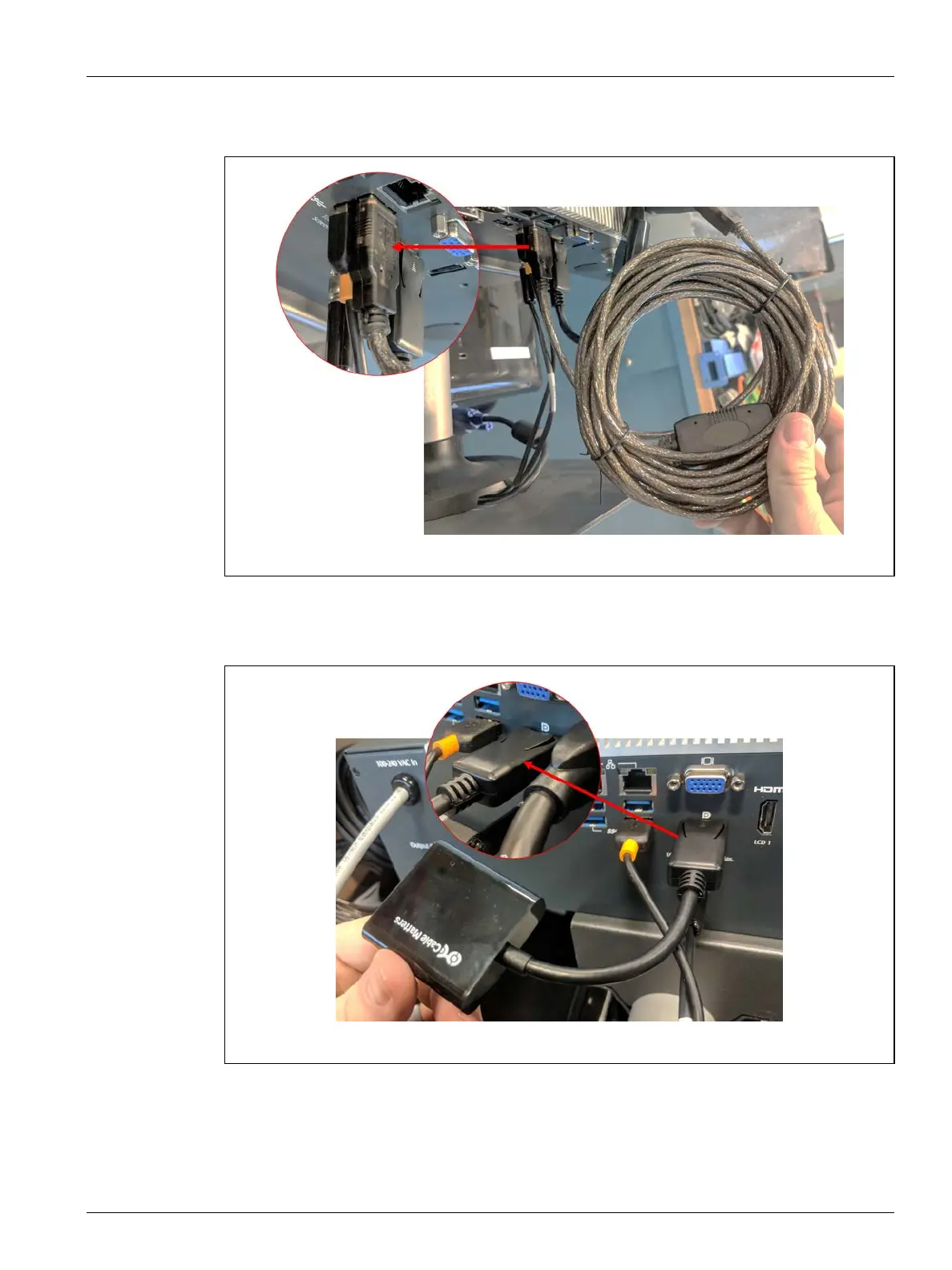

Figure 15-38 USB Extension Cable
Figure 15-39 DisplayPort to HDMI Converter (DisplayPort Connector End)
