IAI RCP2 Series User Manual

113
Appendix

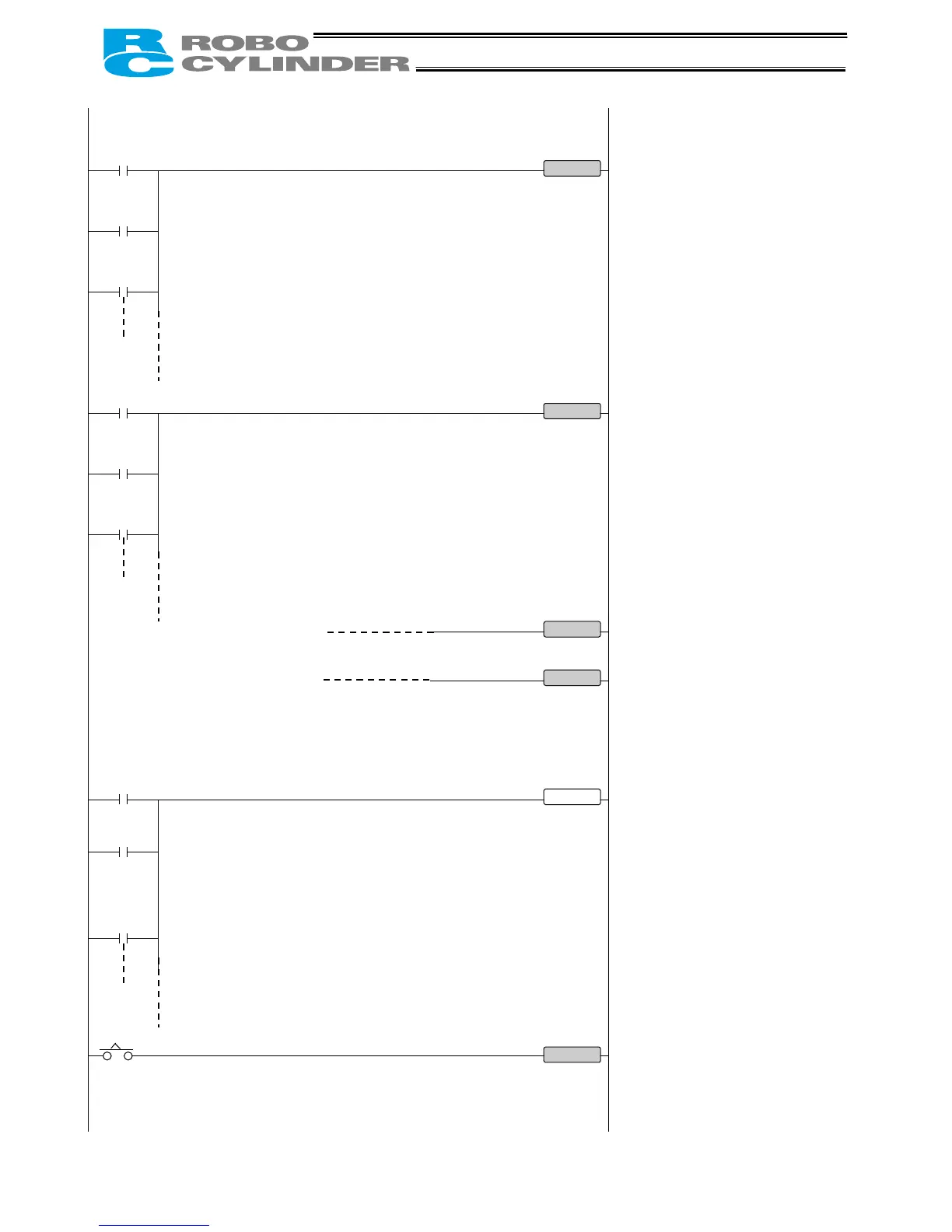

Position 3
set signal
S
R
Position 5
set signal
Command position 1
Command position 2
PC1
PC2
Position 6
set signal
Position 3
set signal
PC4
PC8
Command position 4
Command position 8
(Start signal circuit)
J
Timer 2
Waiting for start
O
Start
command for
positioning to
other position
Timer 2
Start signal
5 msec or more
(Must be longer
than the PLC’s
scan time.
)
CSTR

IAI RCP2 Series Specifications

General

Control Output	Pulse Train
Power Supply Voltage	24 V DC
Storage Temperature	-10 to 60°C
Type	Controller
Control Method	Position Control
Communication Interface	RS-232C
Humidity	85% RH (non-condensing)
