51

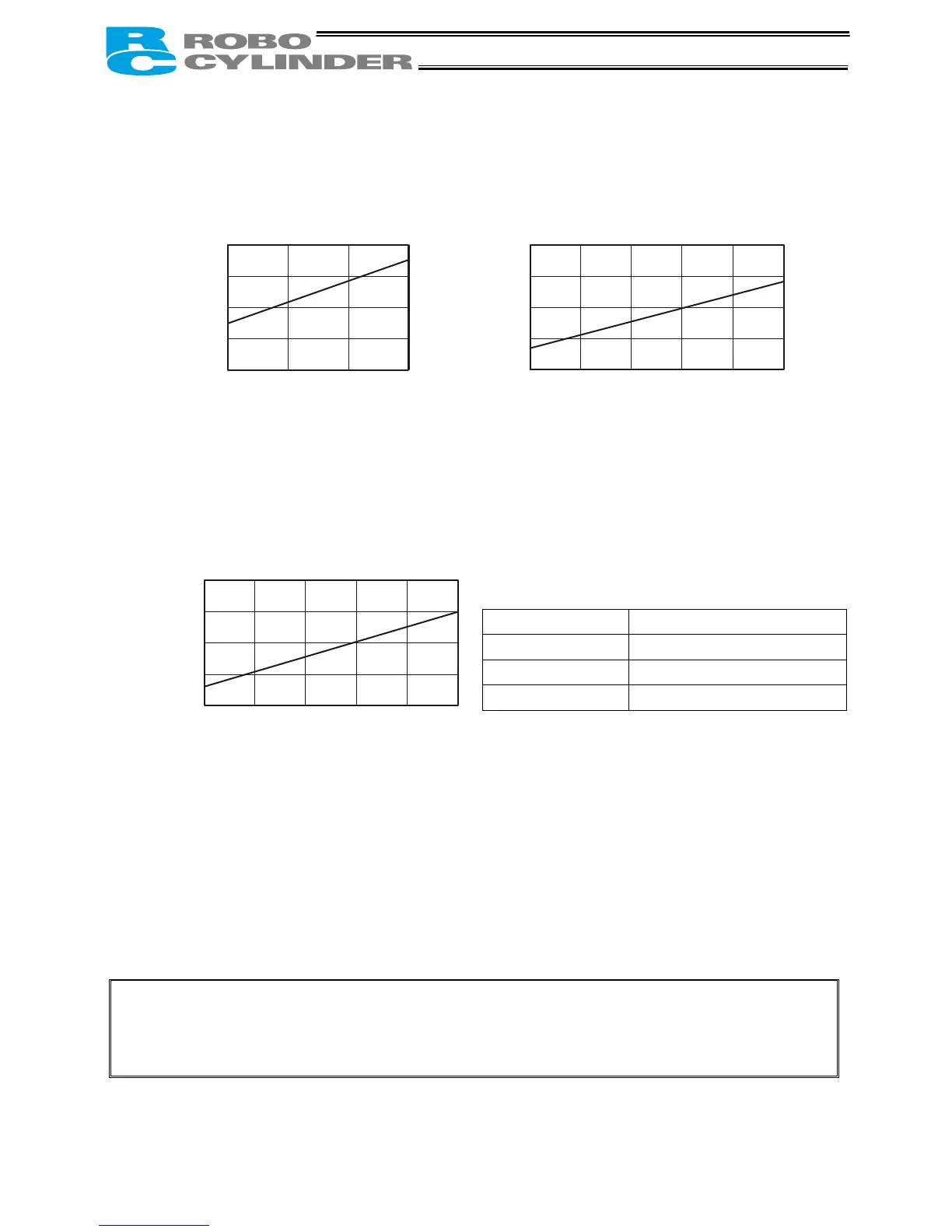

(3) RSA type
High-speed type
Maximum current-limiting value
Low-speed type 50% or less
Medium-speed type 70% or less
High-speed type 70% or less
Note: The accuracy of push force at standstill is not guaranteed. The above graphs are provided for
reference purposes only. If the push force is too small, malfunction may occur during push &
hold operation due to slide resistance, etc., so exercise caution.
The maximum current-limiting value is shown in the above graphs. The minimum value is 20%.
400
300
200
100
0
400
300
200
100
0
20 30 40 50
20 30 40 50 60 70
200
150
100
50
0
20 30 40 50 60 70
Low-speed type Medium-speed type
Push force (N)
Push force (N)
Current-limiting value (%) Current-limiting value (%)
Push force (N)
Current-limiting value (%)
