IAI RCP2 Series User Manual

69

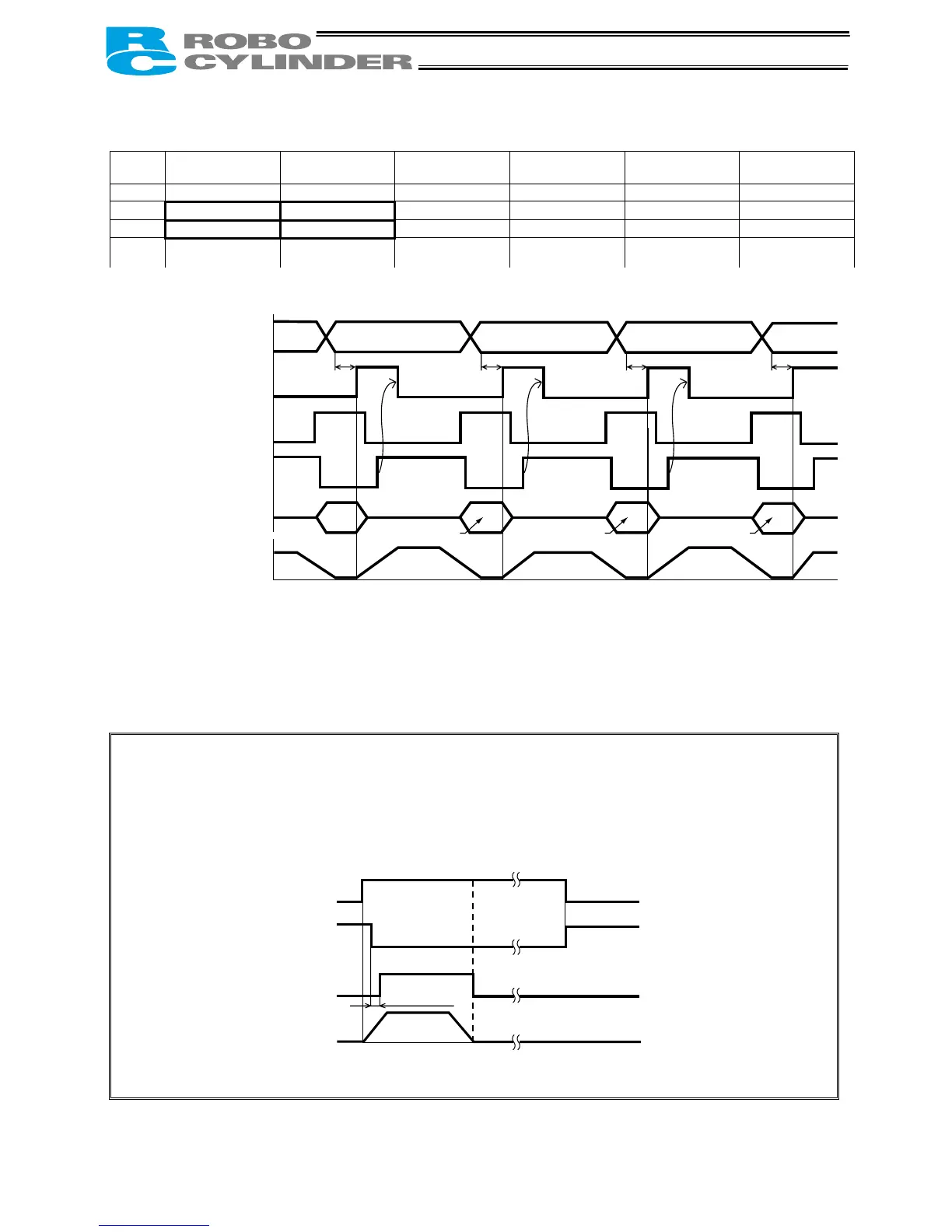

Position-data table (Field(s) within thick line must be entered.)
No. Position Speed
Acceleration/
deceleration
Push Positioning band
Acceleration
only MAX
0 * * * * * *
1 250 200 0.3 0 0.1 0
2 100 100 0.3 0 0.1 0
x
x
x
T1: 5 msec or more; time after selecting/entering a command position until the start input turns ON
(The scan time of the host controller must be considered.)
Each command position must be input after the position complete output has turned ON for the movement
to the previous position.
Note: When the start signal turns ON, the position complete output will turn OFF and the moving
output will turn ON.
The start signal must be turned OFF with the confirmation that the moving output has turned
ON (position complete output has turned OFF) while the start signal remains ON.
If the start input remains ON as shown below, the position complete output will not turn ON
even when the actuator movement is completed.
Command position
Star
t
Position complete
Moving
Completed position
A
ctuator movemen
t
Speed
Position 1 Position 2 Position 1
Note Note Note
Position 1 Position 2 Position 1
T
1
T
1
T
1
T
1
Star
t
Position complete
Moving
A
ctuato
r
1 msec or less
Movement is complete.
