3. Operation
Fieldbus Communication
149
RCP6
3.8.2 Explanation of Each Menu
(Note) If RCP6S GW is not detected, there will be some items that cannot be displayed or
selected.

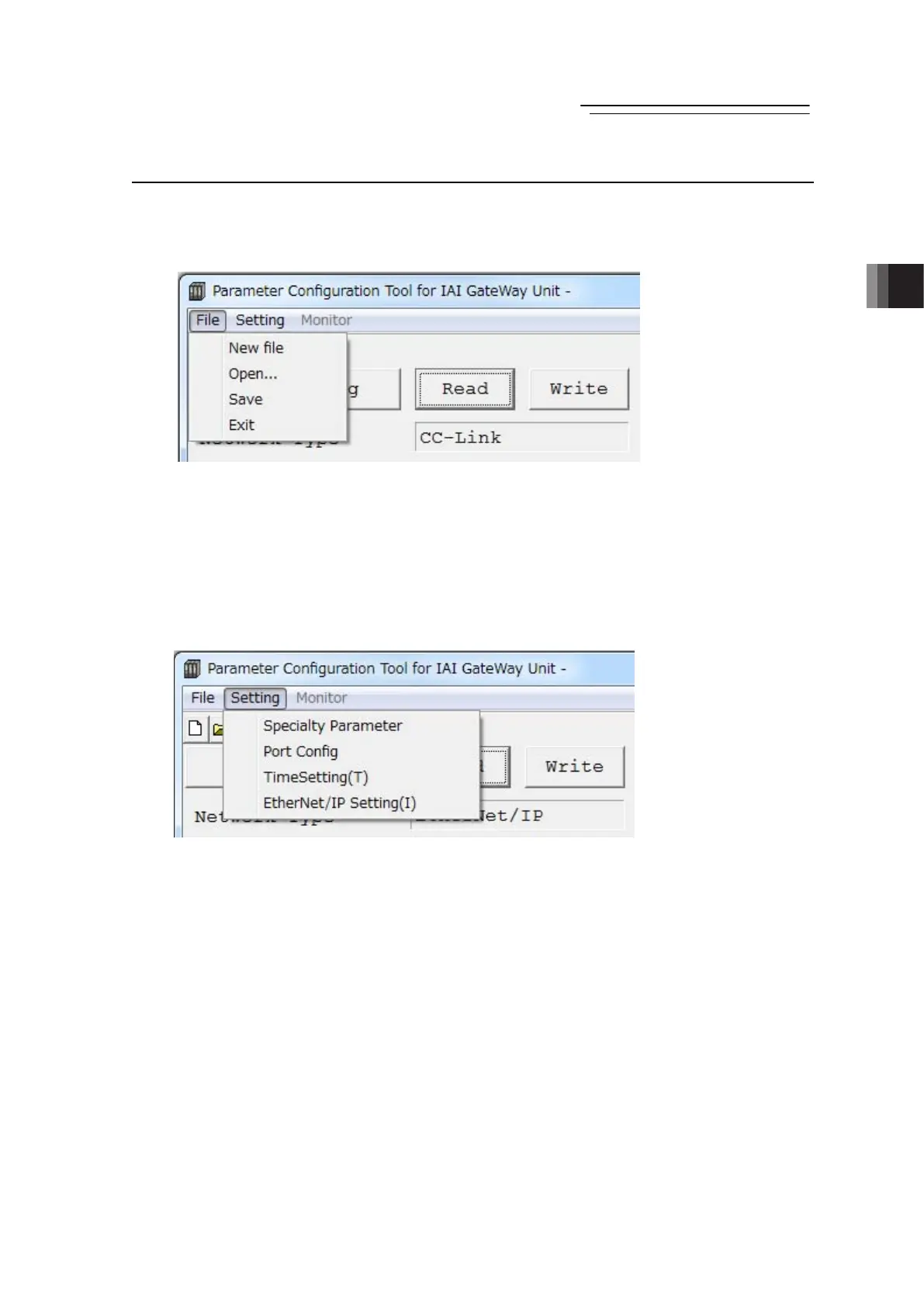

1) File Menu
In the main window, click on the file menu on the top left corner and the menu list pops up as
shown in the figure above.
• New file : Create new network parameters and operation mode parameters.
• Open : Open the saved parameter files to show on the main window.
• Save : Save the parameter remained in the tool as a file.
• Exit : Close the tool.
2) Setting Menu
Click on the “Setting” menu on the top left corner in the main window and the setting menu list
pops up.
• Specialty Parameter : Set the parameters related to the process of Gateway area in
RCP6S GW.
[Refer to 3.8.3 1) to 2) GW Parameter 1/2, 3) GW Mode Select.]
• Port Config : Set the communication speed between the tool and PC and COM
port number.
• Time Setting (T) : Set the clock retained in RCP6S GW.
[Refer to 3.8.3 5) Time Setting.]
• EtherNet/IP Setting (I) : For EtherNet/IP type, this menu is displayed.
Set IP address etc.
[Refer to 3.8.3 6) EtherNet/IP Setting]
To Next Page
