Fieldbus Communication
163
RCP6
S
3.9.4 EtherNet/IP

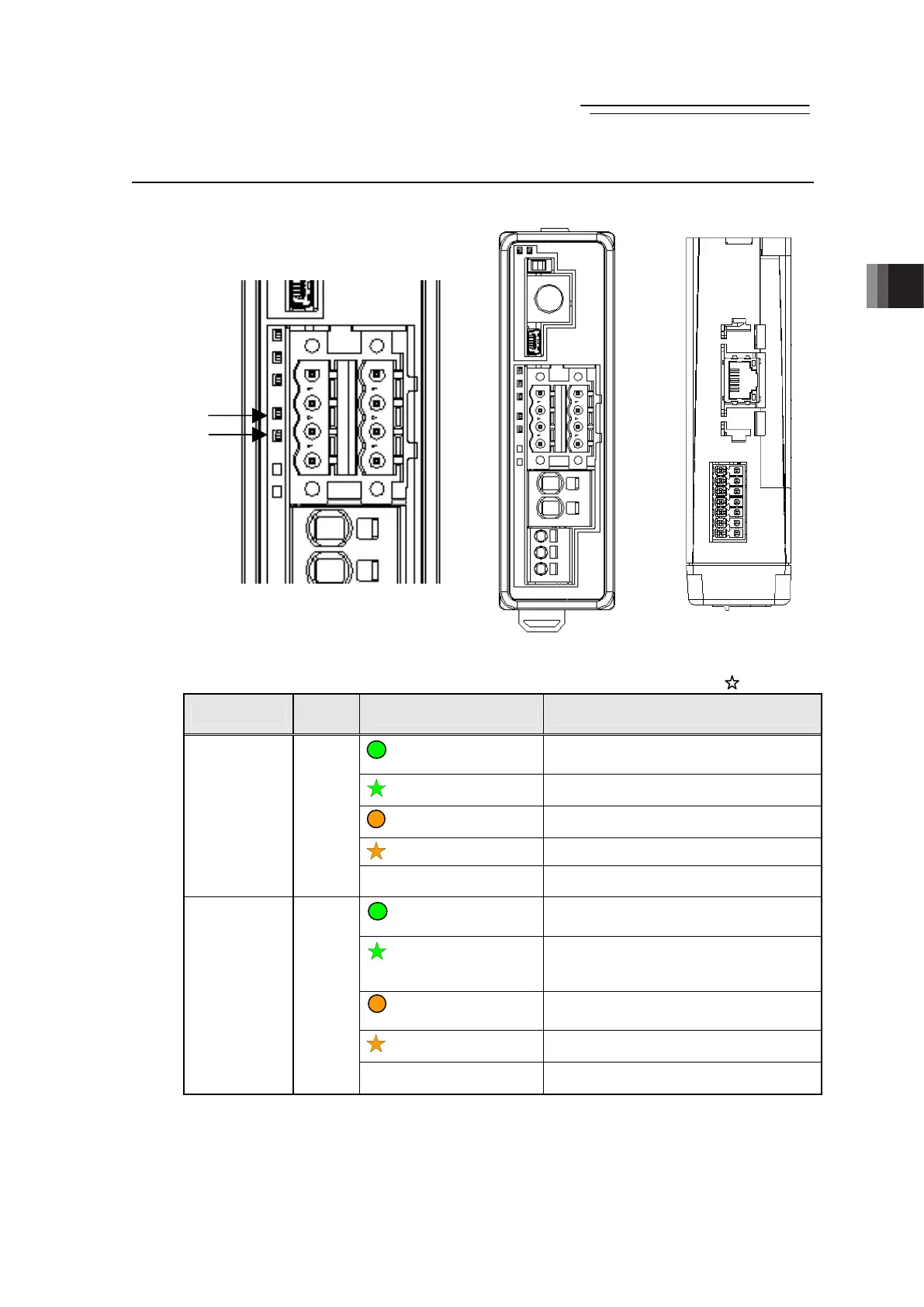

Front Side Top Side
STATUS-0
STATUS-1
{: Illuminating, ×: OFF, : Flashing
Name
Panel
State
Display Color Remarks
Green (Illuminating)
Online (one or more connection(s)
established)
Green (Flashing)
Online (connection unestablished)
Orange (Flashing)
IP address duplicated, Critical error
Orange (Flashing)
One or more connection (s) in timeout
STATUS-1 NS
× (OFF)
Power is OFF, IP address not established
Green (Illuminating)
In normal operation and under control of
scanner (master)
Green (Flashing)
Construction information setting is
incomplete, or scanner (master) is in idling
condition
Orange (Flashing)
Fatal malfunction (exception condition or
critical error)
Orange (Flashing)
Light malfunction possible to recover
STATUS-0 MS
× (OFF)
Power is OFF
