IAI RCP6S User Manual

3. Operation
Fieldbus Communication
161
RCP6
S

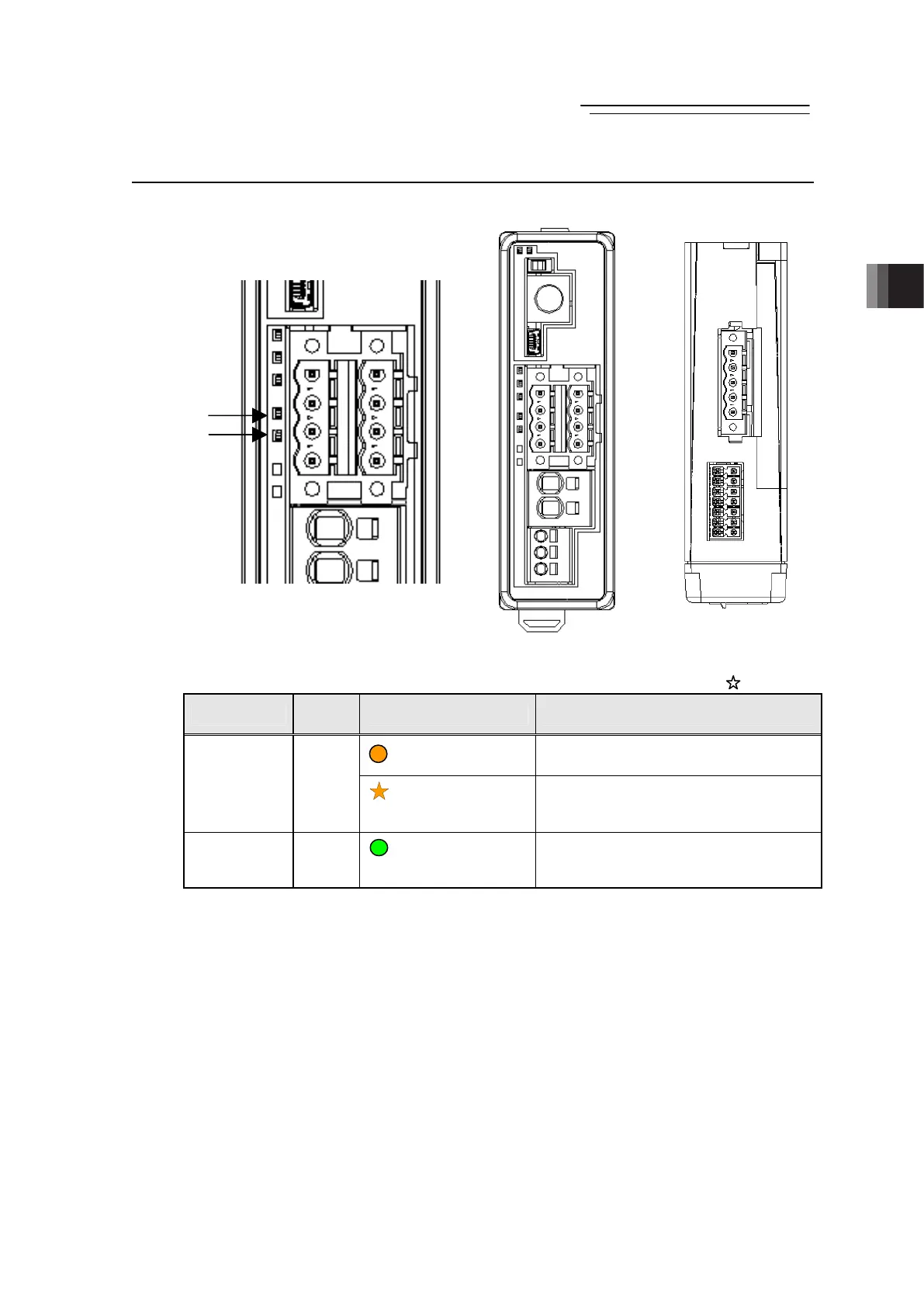

3.9.2 CC-Link
Front Side Top Side
STATUS-0
STATUS-1
{: Illuminating, ×: OFF, : Flashing
Name
Panel
State
Display Color Remarks
Orange (Flashing)
An error occurs. (CRC error, station No.
setting error or baud rate setting error)
STATUS-1 ERR
Orange (Flashing)
Value has changed from those of station
number and baud rate setting at reset
release
STATUS-0 RUN
Green (Illuminating)
Reception of refresh and polling in normal
condition or reception of refresh in normal
condition after joining to a network
ME0349-4B
