IAI RCP6S User Manual

1. Specications Check
Fieldbus Communication
22
RCP6
S

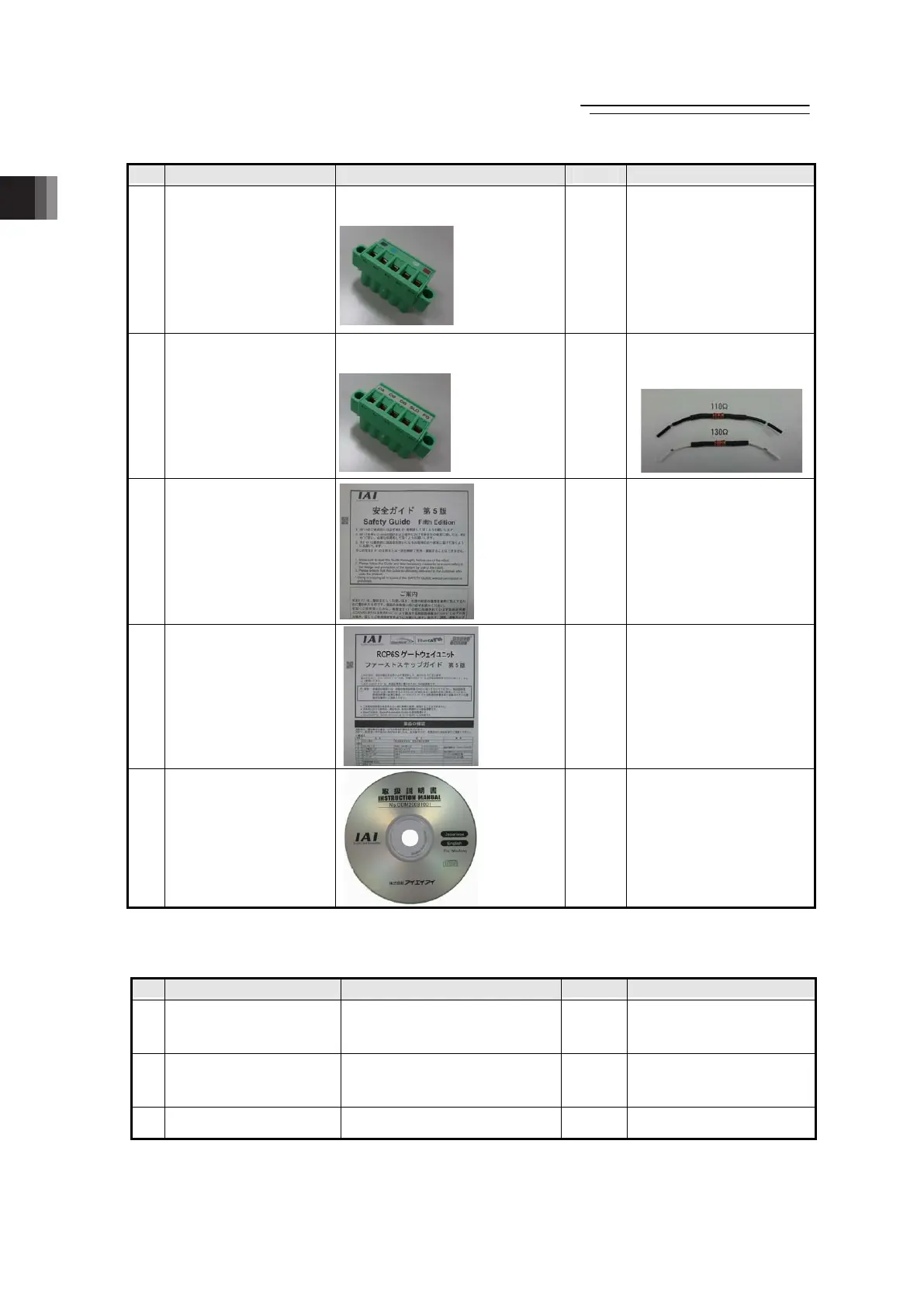

No. Part Name Model and Picture Number Remarks
7
DeviceNet Connector
(For DeviceNet Type)
MSTB2.5/5-STF-5.08 AU M
(Supplier : PHOENIX CONTACT)
1
Prepare a terminal resistance
separately if this controller is
to be allocated at the
terminal.
8
CC-Link Connector
(For CC-Link Type)
MSTB2.5/5-STF-5.08 AU
(Supplier : PHOENIX CONTACT)
1
Terminal Resistance
(130Ω1/2W, 110Ω1/2W)
enclosed one unit each
9 Safety Guide
1
The picture shows an image.
10 First Step Guide
1
The picture shows an image.
11 Instruction Manual (DVD)
1
The picture shows an image.
Option
Prepare the following options if necessary.
No. Part Name Model and Picture Number Remarks
1 Hub Unit
Refer to “1.1.4 How to read the
model plate”, “1.1.5 How to read
the model”.
-
RCM-P6HUB
2
RCP6S Gateway
Controllers
Refer to “1.1.4 How to read the
model plate”, “1.1.5 How to read
the model”.
-
RCM-P6PC
RCM-P6AC
RCM-P6DC
3 Connector Conversion Unit -
RCM-CV-APCS
ME0349-4B
