2. Wiring
Fieldbus Communication
58
RCP6
S

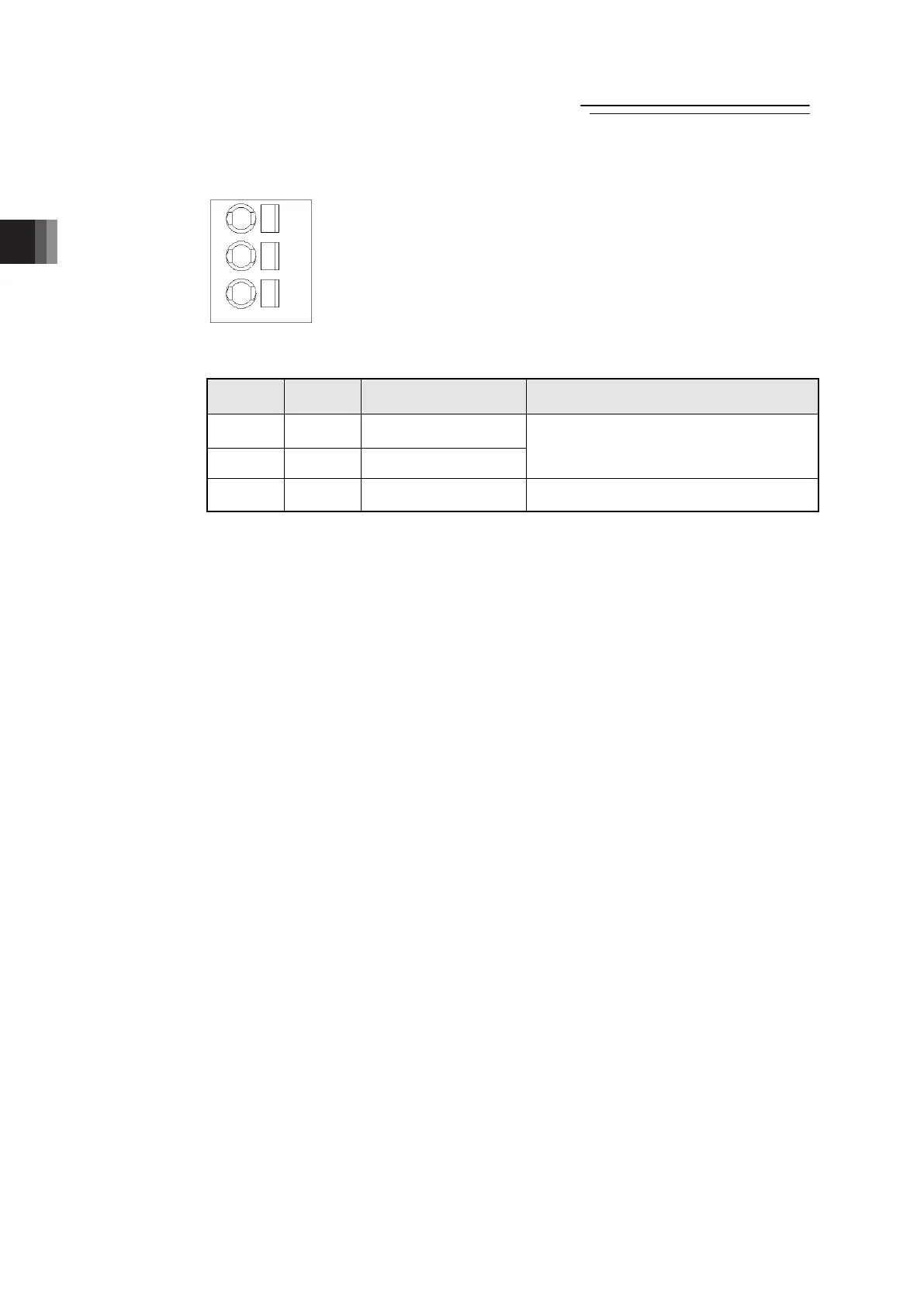

[2] Control Power Supply Connector
Connector model: SPT2.5/3-H-5.0 (Manufactured by PHOENIX CONTACT)
(Note) If supplying power with using a 24V DC, having it turned ON/OFF, keep the 0V connected and have the +24V
supplied/cut (cut one side only).
Pin No.
Signal
Name
Description Applicable cable diameter
1 24V
Control Power Supply
24V Input
2 GND 0V Input
KIV3.5 to 0.5mm
2
(AWG12 to 20)
3 FG Frame Ground
KIV3.5 to 2.0mm
2
(AWG12 to 14)
1
2
3
ME0349-4B
