IAI RCP6S User Manual

2. Wiring
Fieldbus Communication
65
RCP6
S

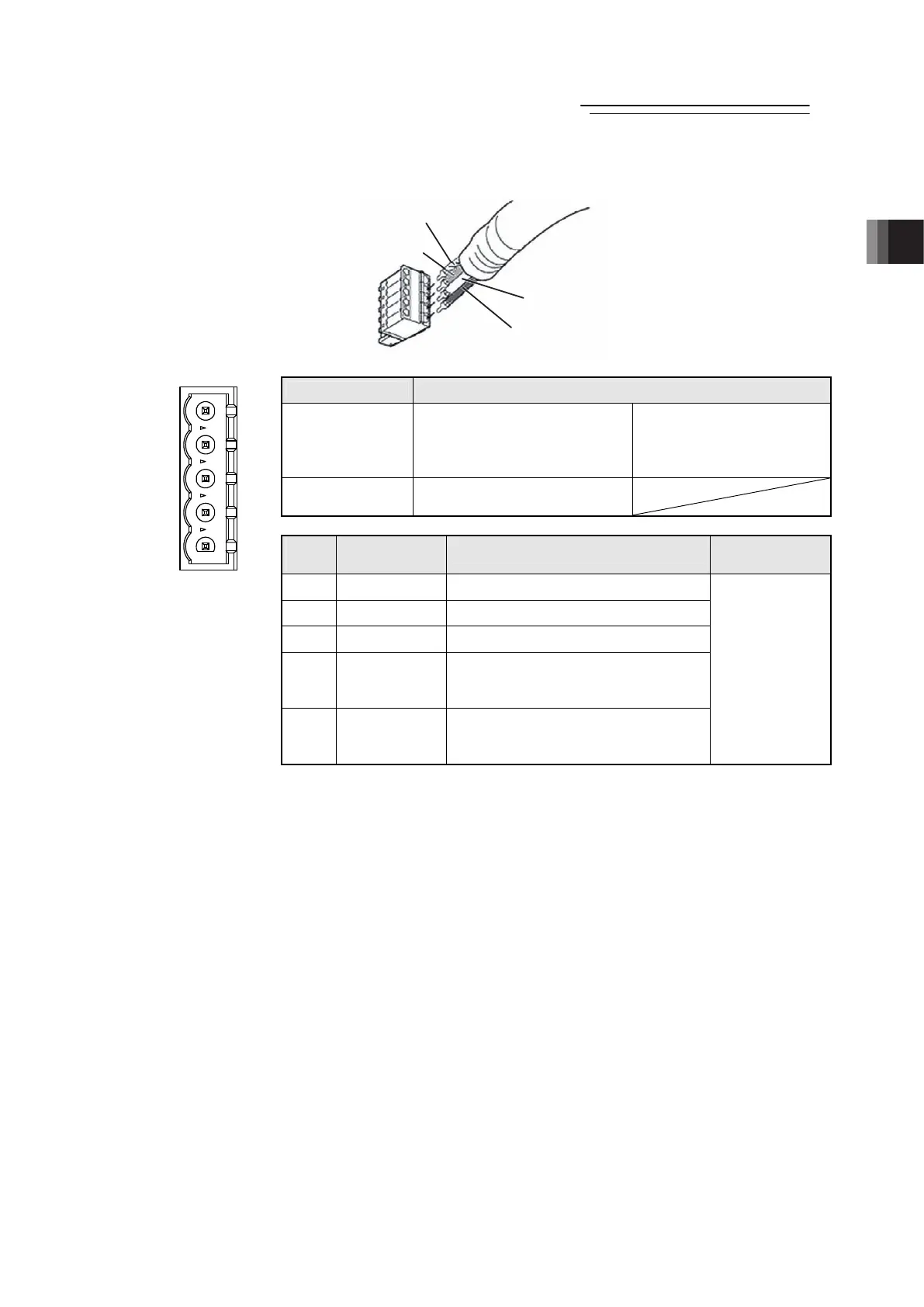

2) CC-Link Type
WT (DB)
BL (DA)
Shield (SLD)
YW (DG)
Connector Name CC-Link Connector
Cable Side MSTB2.5/5-STF-5.08 AU
Enclosed in standard
package
Manufactured by PHOENIX
CONTACT
Gateway Unit
Side
MSTB2.5/5-GF-5.08 AU
(Note) Connect a terminal resistor between DA and DB if the unit comes to the
end of the network. [Refer to 2.2 [5] Wiring Layout for Fieldbus.]
Pin
No.
Signal Name
(Color)
Description
Applicable
Cable Diameter
1 DA (Blue) Communication Line A
2 DB (White) Communication Line B
3 DG (Yellow) Digital GND
4 SLD
Connect the shield of the shielded
cable (Connect the FG of the 5 pins
and controller FG internally)
5 FG
Frame Ground
(Connect the SLD of the 4 pins and
controller FG internally)
Dedicated cable
for CC-Link
Front view of
connector on
gateway unit side
1
2
3
4
5
ME0349-4B
