2. Wiring
Fieldbus Communication
67
RCP6
S

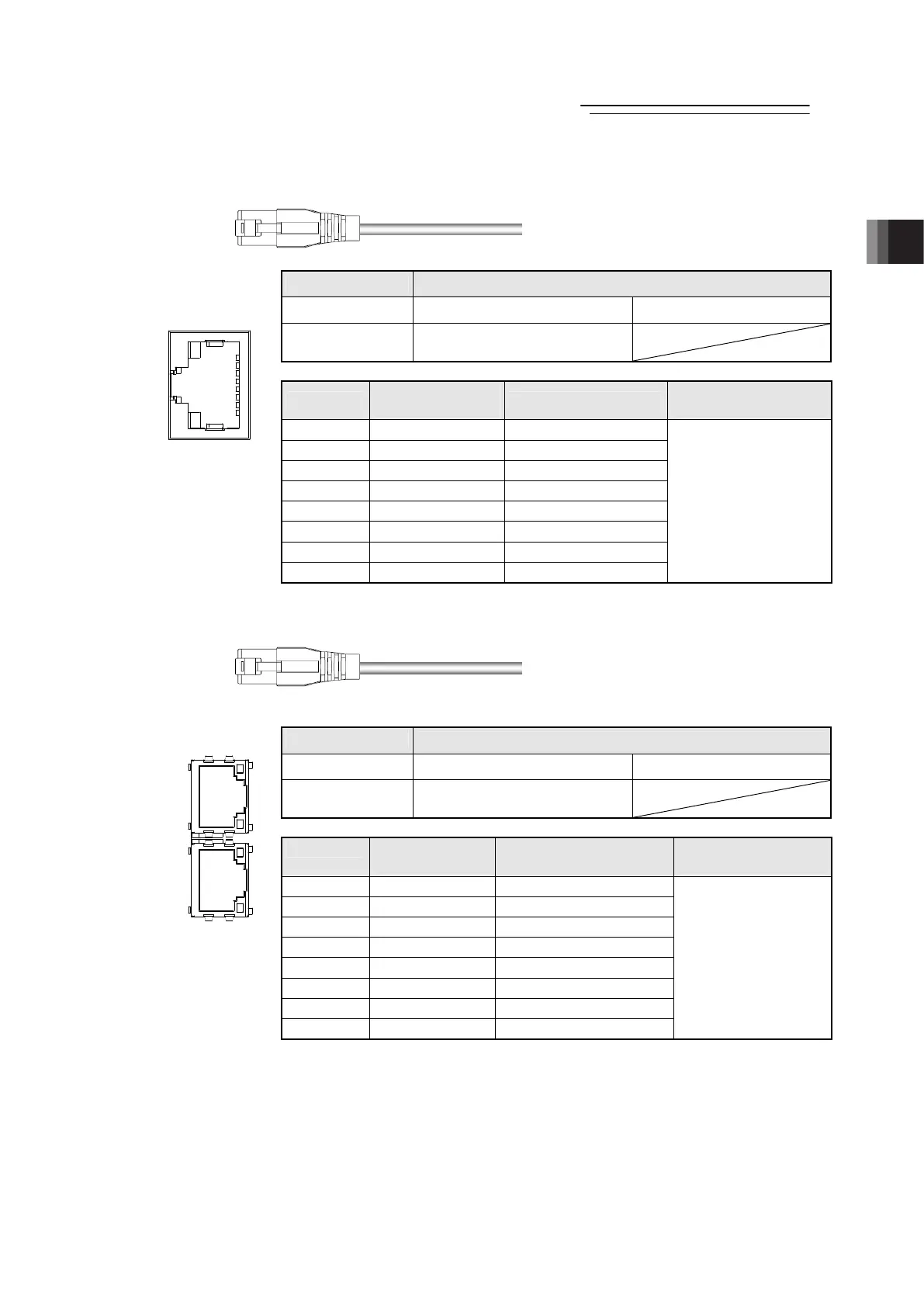

4) EtherNet/IP Type
Connector Name EtherNet/IP Connector
Cable Side 8P8C Modular Plug Please prepare separately
Gateway Unit
Side
8P8C Modular Jack
Pin No.
Signal Name
(Color)
Description
Applicable Cable
Diameter
1 TD+ Data Sending +
2 TD- Data Sending -
3 RD+ Data Receiving +
4 - Not to be used
5 - Not to be used
6 RD- Data Receiving -
7 - Not to be used
8 - Not to be used
For EtherNet cable,
use a straight STP
cable that possesses
the performance of
Category 5 or more.
5) EtherCAT Type
Connector Name
EtherCAT Connector
Cable Side
8P8C Modular Plug Please prepare separately
Gateway Unit
Side
8P8C Modular Jack
Pin No. Signal Name
(Color)
Description
Applicable Cable
Diameter
1 TD+ Data Sending +
2 TD- Data Sending -
3 RD+ Data Receiving +
4 - Not to be used
5 - Not to be used
6 RD- Data Receiving -
7 - Not to be used
8 - Not to be used
For EtherCAT cable,
use a straight STP
cable that possesses
the performance of
Category 5 or more.
In and out are determined on the communication port. Be careful not to plug in the
communication cable in the wrong way.
1
8
Front view of
connector on
gateway unit side
8
1
8
1
Front view of
connector on
gateway unit side
IN
OUT
ME0349-4B
