The storage subsystem provides flexibility in configuring a RAID array. A minimal
storage subsystem configuration would consist of one DS5100 and DS5300 and
one storage expansion enclosure. The storage expansion enclosure can contain as
few as two disk drives. The maximum number of disk drives a DS5100 and DS5300
can support is listed in “Features at a glance” on page 2.
Currently, the DS5100 and DS5300 supports the EXP5000 and EXP5060 storage
expansion enclosures.
Power
supply-fan
Interconnect-
battery
RAID controllers
Power
supply-fan
Power
supply-fan
Power
supply-fan
Power
supply-fan
Power
supply-fan
ds50013

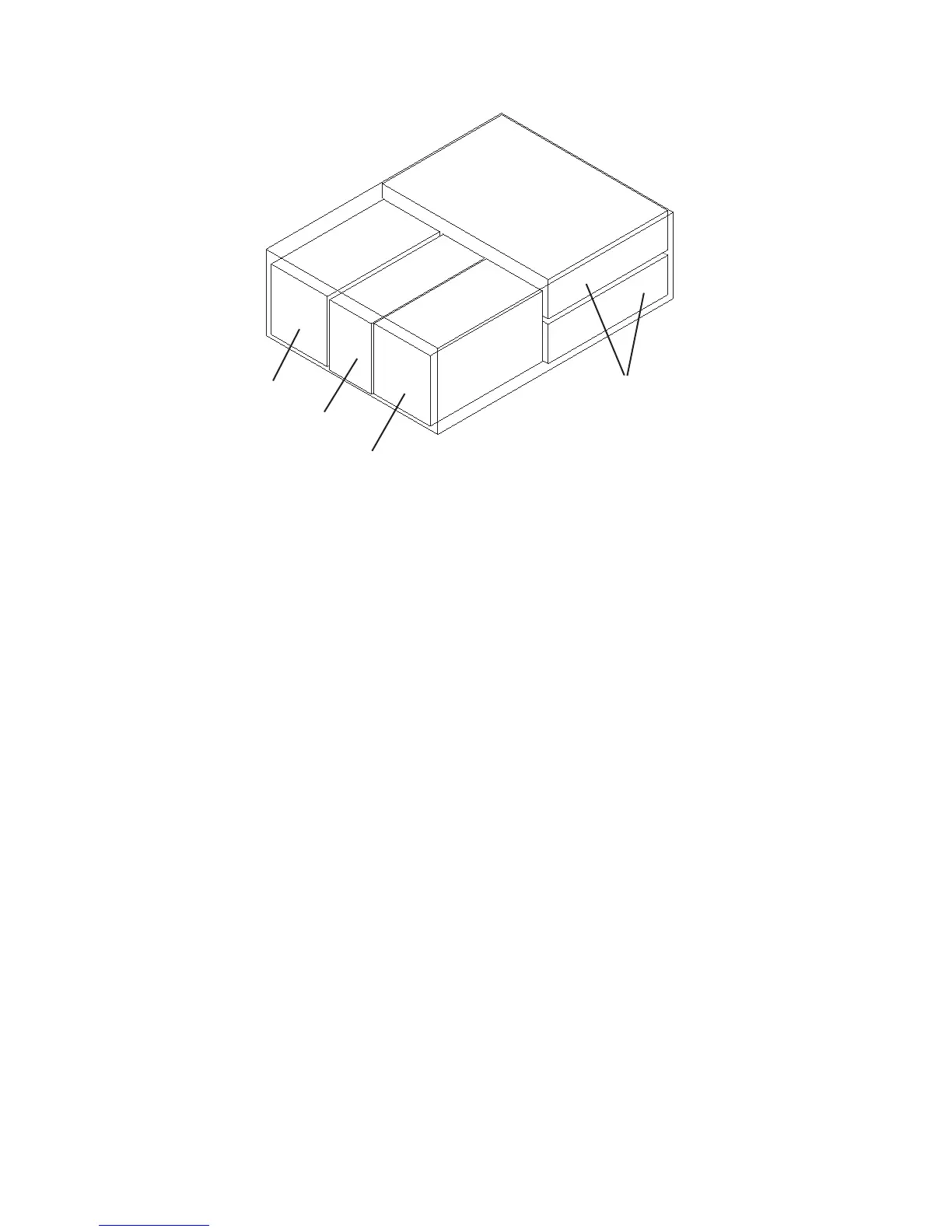

Figure 2. Location of components in the storage subsystem
8 IBM System Storage DS5100 and DS5300 Storage Subsystem: Installation, User’s, and Maintenance Guide
