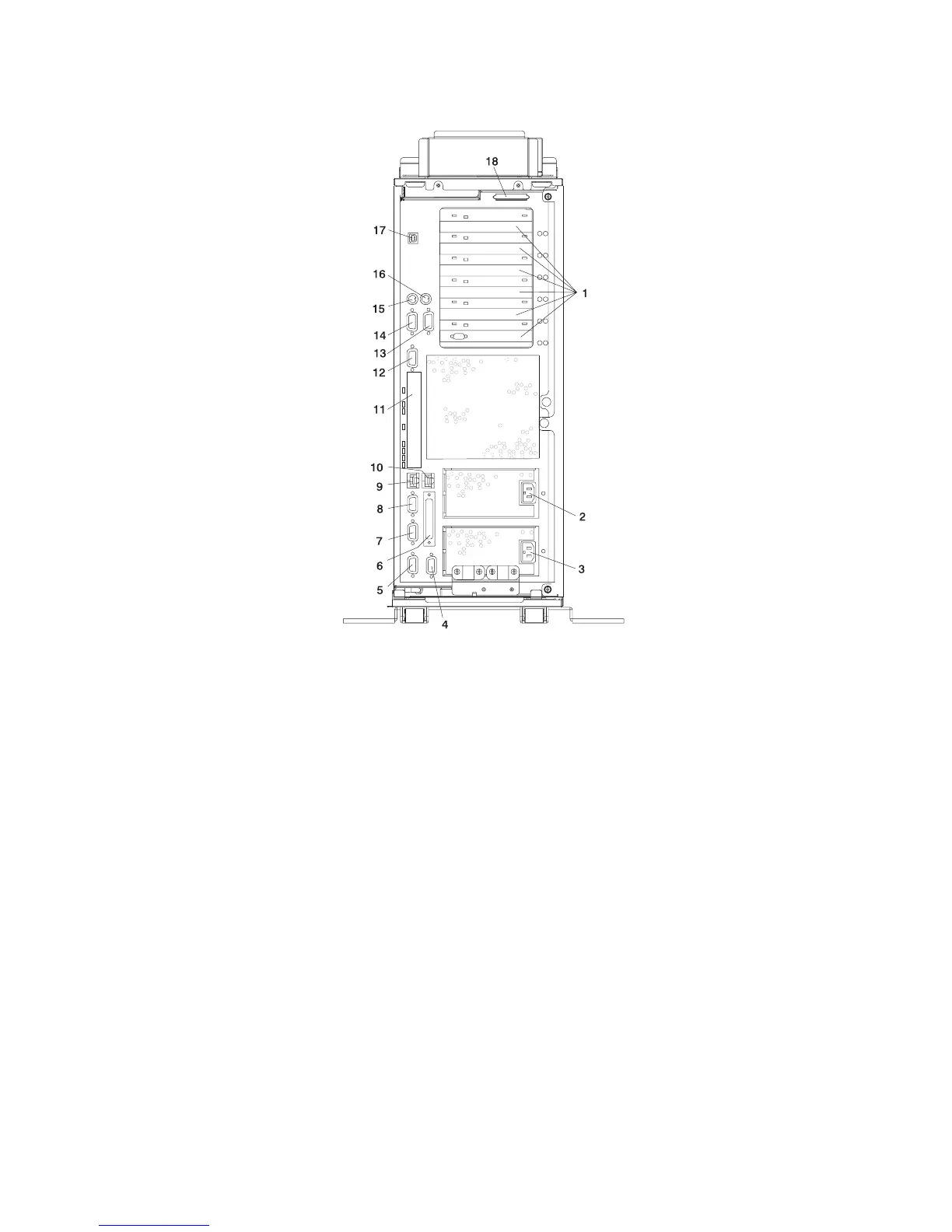

Rear View
1 PCI-X Slot Access 10 Ethernet Connector 2
2 Redundant Power Cable Receptacle 11 RIO Connector Cover
3 Primary Power Cable Receptacle 12 Serial Connector 2
4 System Power Control Network Connector
SPCN2
13 Serial Connector 3
5 System Power Control Network Connector
SPCN1
14 Serial Connector 1
6 Parallel Connector 15 Mouse Connector
7 Hardware Management Console Connector
HMC2
16 Keyboard Connector
8 Hardware Management Console Connector
HMC1
17 Rack Indicator
9 Ethernet Connector 1 18 External SCSI Connector
Chapter 1. Reference Information 11
