IBM pSeries 630 6C4 - Model 6 C4 Fan Assembly

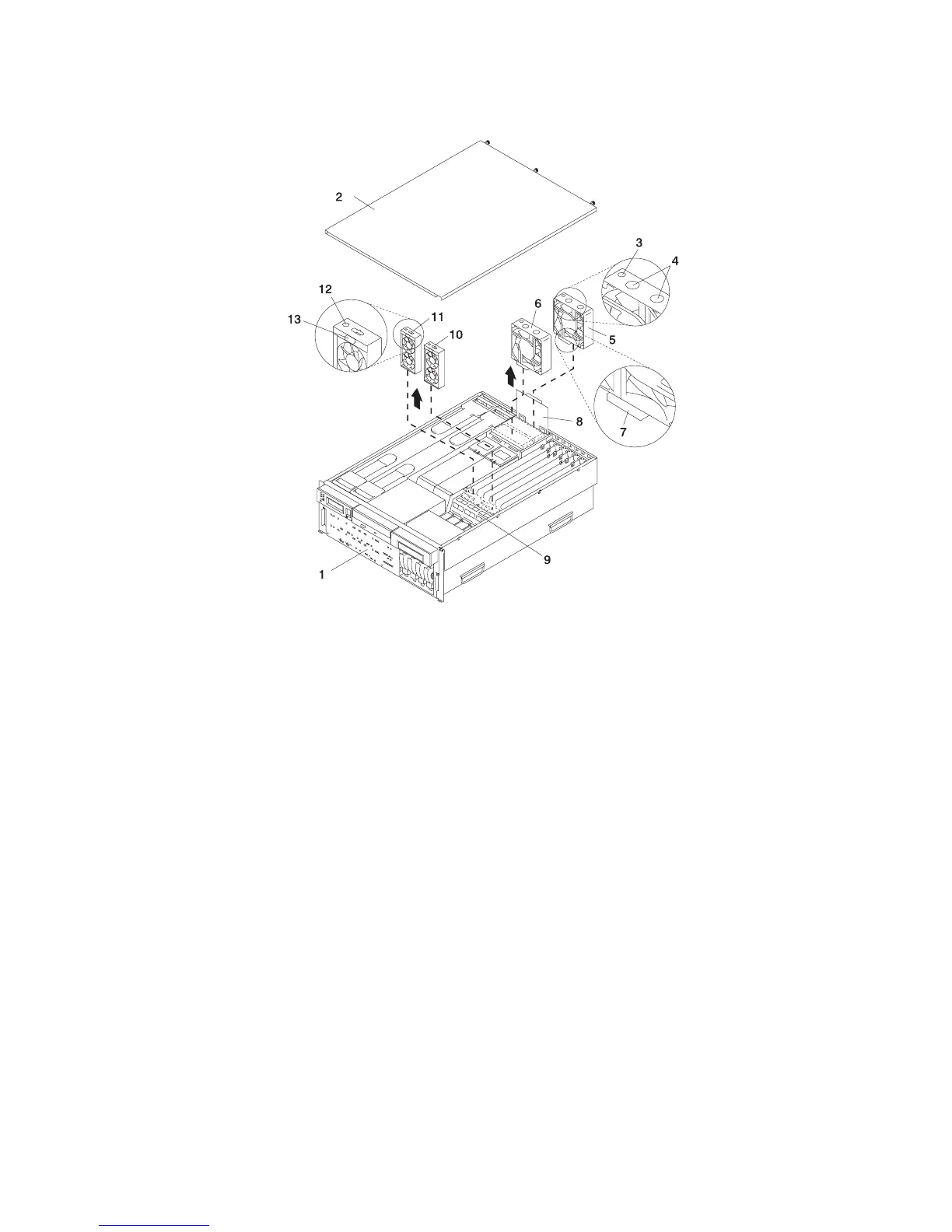

Model 6C4 Fan Assembly
1 Model 6C4 7 Processor Fan Bottom Connector
2 Service Access Cover 8 Processor Cooling Fans Access Cover
3 Processor Fan Amber LED 9 Adapter Cooling Fan Retaining Bracket
4 Finger Holes 10 PCI Adapter Cooling Fan Assembly (Fan
#4)
5 Processor Card Cooling Fan (Fan #1) 11 PCI Adapter Cooling Fan Assembly (Fan
#3)
6 Processor Card Cooling Fan (Fan #2) 12 PCI Adapter Fan Amber LED
13 Adapter Cooling Fan Front Connector
Chapter 9. Removal and Replacement Procedures 463
