Operator Panel
Before performing the following procedure, read “Safety Notices” on page xi.
Operator Panel Removal
To remove the operator panel, do the following:
1. On a Model 6C4, open the front and rear rack doors and place the system into the service position as
described in “Placing the Model 6C4 into the Service Position” on page 429.
On a Model 6E4, open the bezel door.
2. Shut down the system as described in either “Stopping the System without an HMC Attached” on
page 424, “Stopping the System with an HMC Attached and AIX Installed” on page 424, or “Stopping
the System with an HMC Attached and Linux Installed” on page 425.
3. Disconnect the power source from the system.
Note: This system may be equipped with a second power supply. Before continuing with this
procedure, ensure that the power source to the system has been completely disconnected.
4. If necessary, on a Model 6E4, remove the bezel door as described in “Bezel Door Removal” on
page 441.
5. Remove the front bezel as described in “Front Bezel Removal (Model 6C4)” on page 442 or “Front
Bezel Removal (Model 6E4)” on page 443.
6. If you are servicing a Model 6E4, remove the top cap as described in “Top Cap Removal (Model
6E4)” on page 432.
7. If you are servicing a Model 6C4, remove the service access cover as described in “Service Access
Cover Removal (Model 6C4)” on page 431.
8. Locate the operator panel, as shown in the following illustrations.
9. Remove the two retaining screws, located along the bottom edge of the operator panel.
10. Disconnect the power / signal cable from the back of the operator panel.
11. Remove the operator panel by grasping the edges of the panel and pulling it out of its bay.

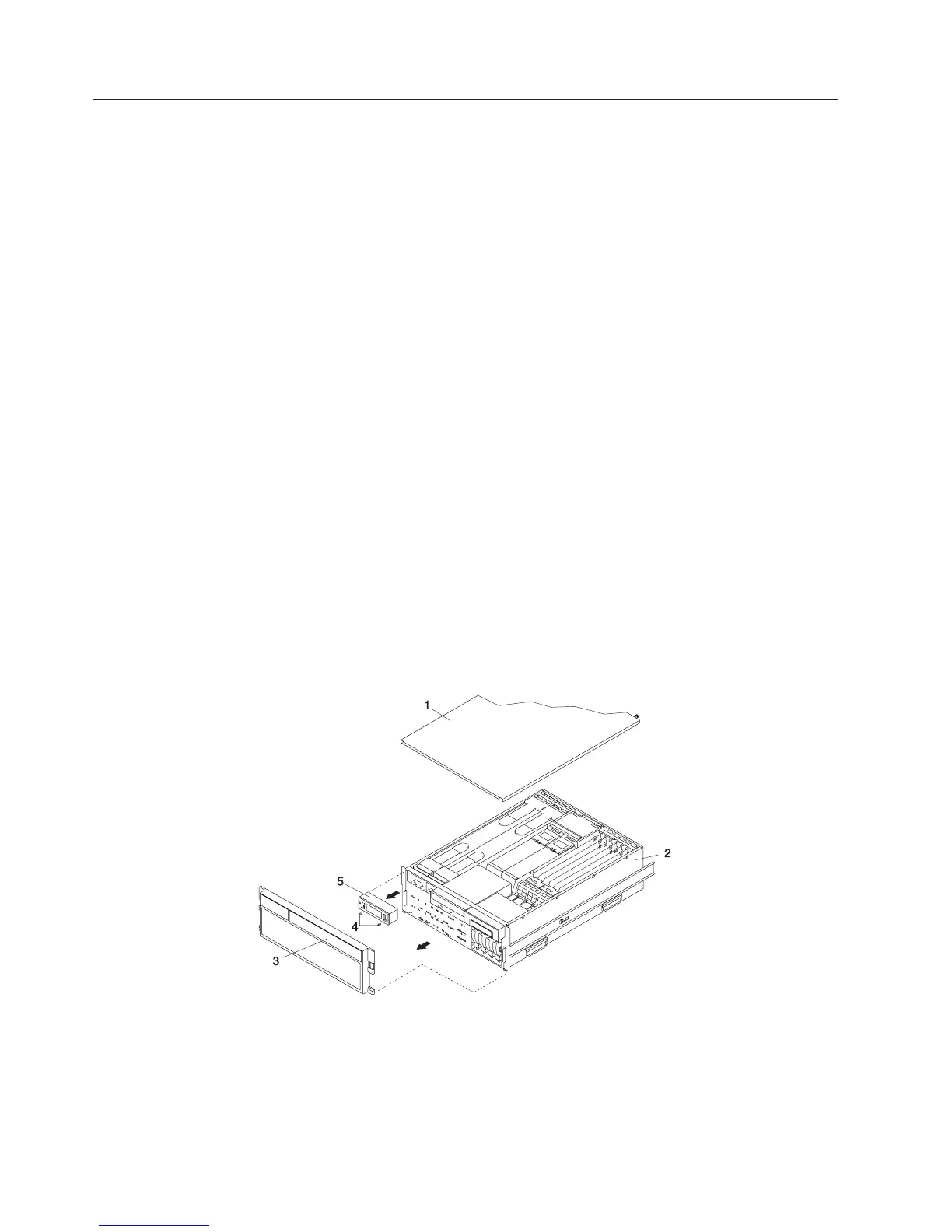

Model 6C4 Operator Panel
1 Service Access Cover (drawer) 4 Operator Panel Retaining Screws
2 System Unit 5 Operator Panel
3 Front Bezel
484 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
