Connect the 8-Port Adapter Cables
If you are using any optional 8-port adapters, connect the cables to the appropriate connectors in slots 1
through 4.
Connect the External Modem
The external modem is used in conjunction with the HMC’s Service Agent and Call Home features. To
properly service your machine, it is important that you configure the Service Agent feature correctly the
first time. For more information about configuring the modem and the Service Agent feature, see
“Configure the Service Agent” on page 594.
To connect the external HMC modem, do the following:

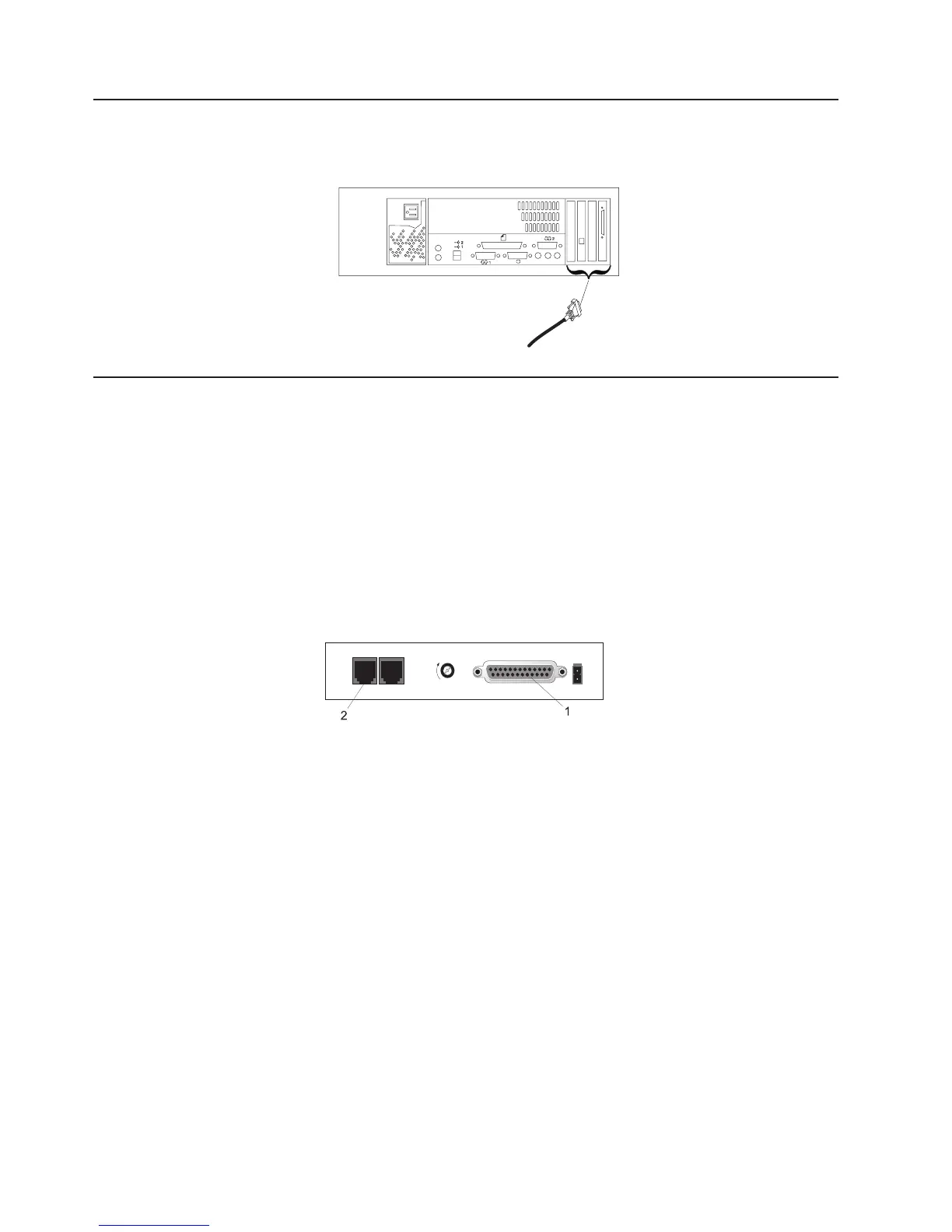

1. Connect the modem cable to the external HMC modem (1).
2. Connect the other end of the modem cable to serial port 2.
3. Connect the phone cable line port of the external modem (2).
4. Connect the other end of the phone cable to the analog jack on your wall.
1 External HMC Modem
2 External Modem Connector
590 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
